OSTTE10 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 10P SIDE ENT 3.5MM PCB
| Part | Contact Material - Plating | Housing Material | Screw Material - Plating | Screw Thread | Torque - Screw | Torque - Screw | Clamp Material - Plating [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Voltage | Mating Orientation | Wire Termination | Color | Current | Positions Per Level | Number of Levels | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

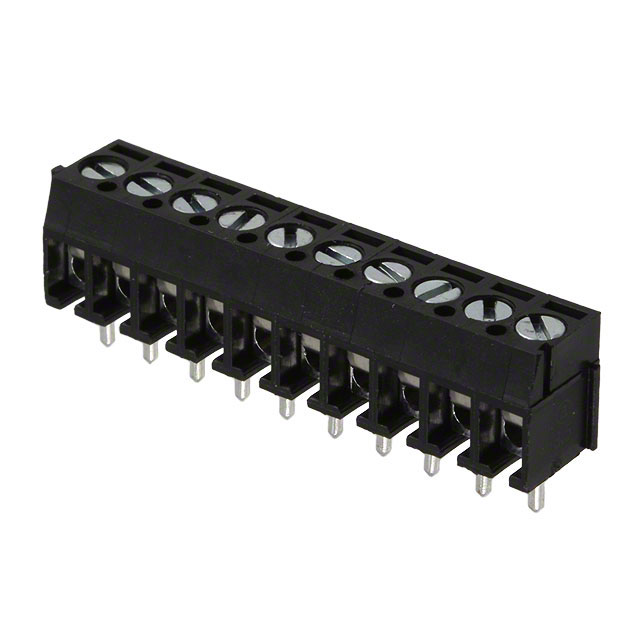

 On Shore Technology Inc. | Tin Plated | Thermoplastic | Steel - Zinc Plated | M2 | 1.7 Lb-In | 0.2 Nm | Stainless Steel | 115 °C | -40 C | 3.5 mm | 0.138 " | 125 V | Horizontal with Board | Screw - Leaf Spring Wire Guard | Black | 10 A | 10 | 1 | 26 AWG | 16 AWG | Through Hole | Interlocking (Side) |

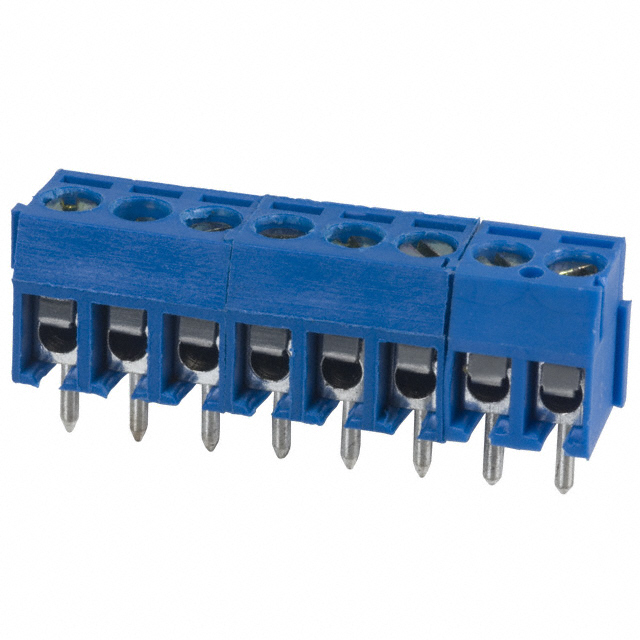

 On Shore Technology Inc. | Brass - Tin Plated | Thermoplastic | Steel - Zinc Plated | M2 | 1.7 Lb-In | 0.2 Nm | Stainless Steel | 105 ░C | -30 ░C | 3.5 mm | 0.138 " | 125 V | Horizontal with Board | Screw - Leaf Spring Wire Guard | Blue | 10 A | 10 | 1 | 26 AWG | 16 AWG | Through Hole | Interlocking (Side) |
