T41712 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SENSOR CABLE, M12 PLUG, FREE END, 4 POSITIONS, 200 MM, 7.9 ", T417 SERIES

Part	Cable Material	Usage	Ingress Protection	Assembly Configuration	Cable Type	1st Connector Number of Positions	1st Connector Type	Length	Length	2nd Connector Type	Color	1st Connector Gender	1st Connector Mounting Type	1st Connector Shell Size - Insert [custom]	1st Connector Orientation	1st Connector Number of Positions Loaded	1st Connector Number of Positions Loaded	Contact Material	Insert Material [custom]	Insert Material [custom]	Applications	Contact Finish Thickness - Mating	Shell Material	Primary Material	Orientation	Shielding	Shell Size - Insert	Mounting Type	Material Flammability Rating	Termination	Connector Type	Mounting Feature	Number of Positions	Shell Finish	Current Rating (Amps)	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Voltage Rating

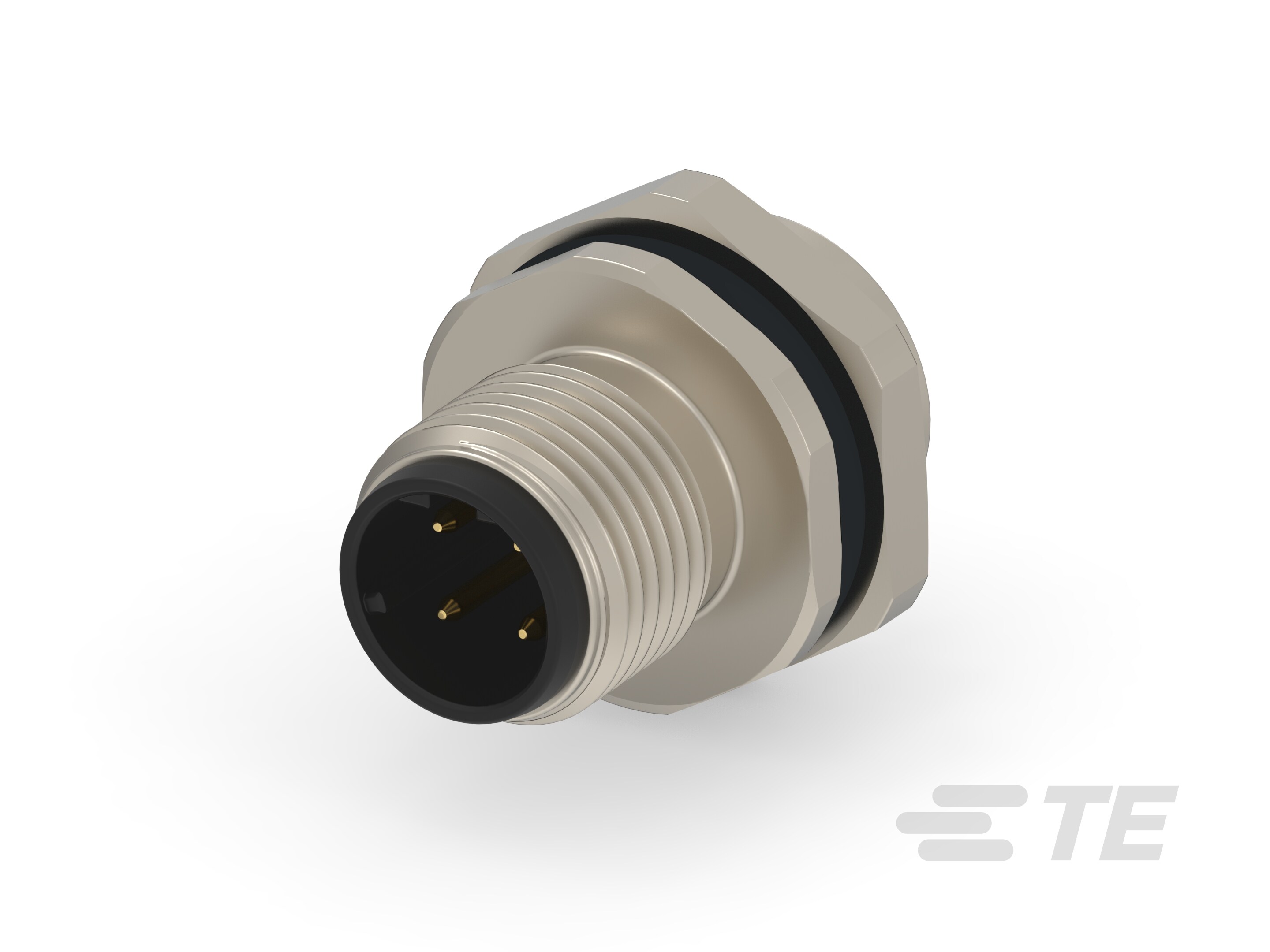

TE Connectivity AMP Connectors T4171210504-001	Polyvinyl Chloride (PVC)	Industrial Environments	IP67 - Dust Tight Waterproof	Standard	Individual	5	Plug	0.66 '	200 mm	Wire Leads	Multiple	Male Pins	Panel Mount	M12	D	4
TE Connectivity AMP Connectors T4171210502-001	Polyvinyl Chloride (PVC)	Industrial Environments	IP67 - Dust Tight Waterproof	Standard	Individual	5	Plug	0.66 '	200 mm	Wire Leads	Blue Brown	Male Pins	Panel Mount	M12	D	2
TE Connectivity AMP Connectors T4171210005-001	Polyvinyl Chloride (PVC)	Industrial Environments	IP67 - Dust Tight Waterproof	Standard	Individual	5	Plug	0.66 '	200 mm	Wire Leads	Multiple	Male Pins	Panel Mount	M12	A		All
TE Connectivity AMP Connectors T4171210003-001	Polyvinyl Chloride (PVC)	Industrial Environments	IP67 - Dust Tight Waterproof	Standard	Individual	5	Plug	0.66 '	200 mm	Wire Leads	Multiple	Male Pins	Panel Mount	M12	A	3
TE Connectivity AMP Connectors T4171210004-001			IP67 - Dust Tight Waterproof								Silver							Copper Alloy	Nylon	Polyamide (PA)	Industrial	Flash	Copper Alloy	Metal	A	Shielded	M12-4	Panel Mount	UL94 V-0	Wire Leads	Receptacle Male Pins	Bulkhead - Rear Side Nut	4	Nickel	4 A	Gold	85 °C	-40 C	Threaded	250 V
TE Connectivity AMP Connectors T4171210402-001	Polyvinyl Chloride (PVC)	Industrial Environments	IP67 - Dust Tight Waterproof	Standard	Individual	5	Plug	0.66 '	200 mm	Wire Leads	Black Brown	Male Pins	Panel Mount	M12	B	2
TE Connectivity AMP Connectors T4171210403-001	Polyvinyl Chloride (PVC)	Industrial Environments	IP67 - Dust Tight Waterproof	Standard	Individual	5	Plug	0.66 '	200 mm	Wire Leads	Multiple	Male Pins	Panel Mount	M12	B	3

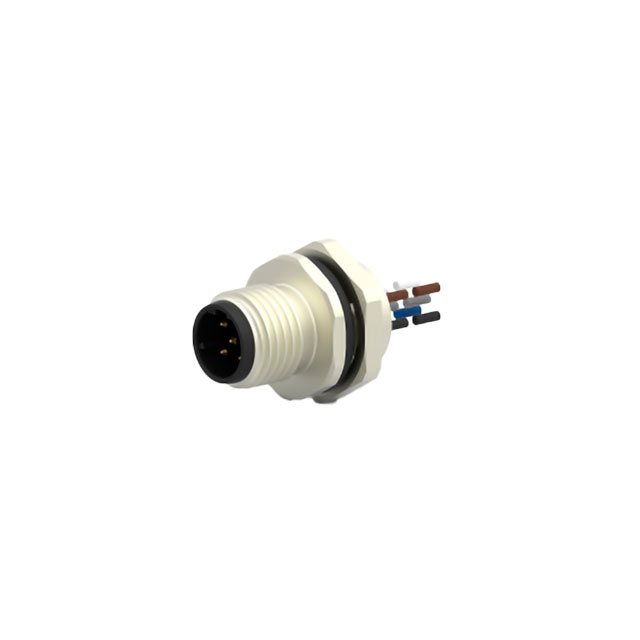

TE Connectivity AMP Connectors T4171210505-001	Polyvinyl Chloride (PVC)	Industrial Environments	IP67 - Dust Tight Waterproof	Standard	Individual	5	Plug	0.66 '	200 mm	Wire Leads	Multiple	Male Pins	Panel Mount	M12	D		All
