17S145 Series
Manufacturer: Rosenberger
Beta
⌘K

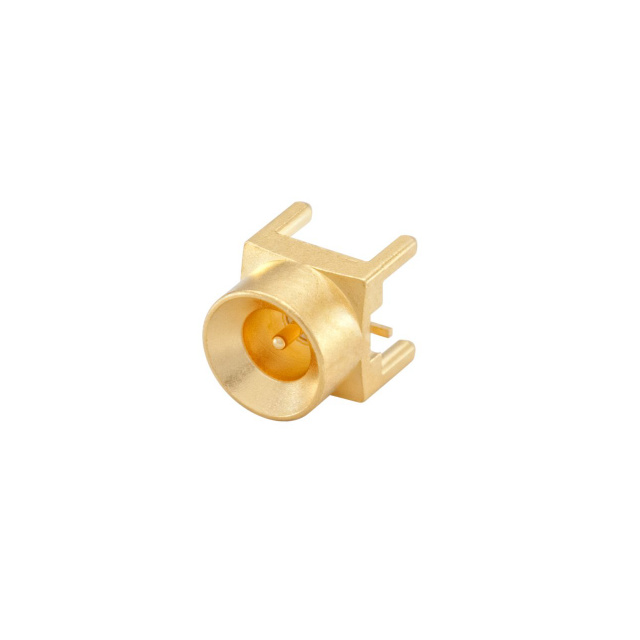

LONGWIPE SMP STRAIGHT PLUG PCB
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Center Contact Plating | Voltage Rating | Dielectric Material | Body Material | Body Finish | Connector Type | Contact Termination | Housing Color | Mounting Type | Fastening Type | Features | Frequency - Max [Max] | Impedance | Center Contact Material | Number of Ports | Shield Termination | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 155 C | -65 ░C | 1000 | Gold | 335 V | Liquid Crystal Polymer (LCP) | Brass | Gold | Plug Male Pin | Solder | Gold | Through Hole | Snap-On | Catcher's Mitt | 6000 MHz | 50 Ohms | Bronze | 1 | Solder | Longwipe SMP |
