395-096 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 96POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Mounting Type	Number of Positions/Bay/Row	Contact Material	Pitch	Pitch	Card Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Color	Gender	Flange Feature	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Positions	Features	Flange Feature [diameter]	Flange Feature [diameter]

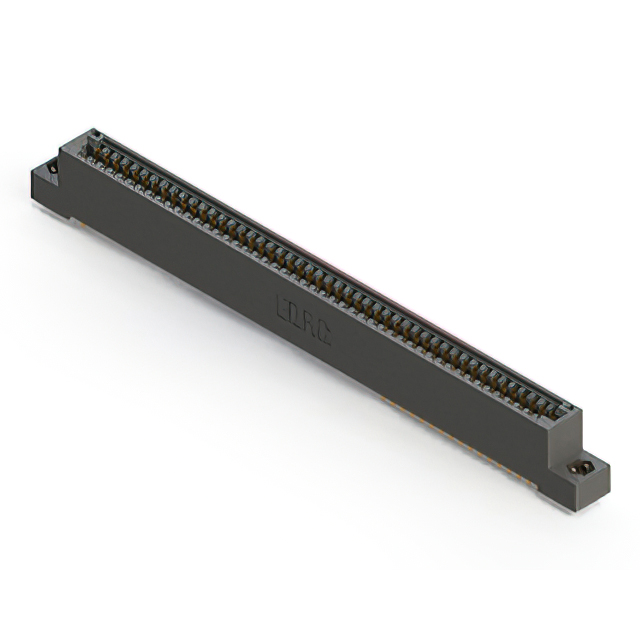

EDAC Inc. 395-096-524-208	2	Polyester Thermoplastic	Through Hole	48	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	Solder	-40 C	105 ░C	2	Black	Female	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Dual	96
EDAC Inc. 395-096-523-508	2	Polyester Thermoplastic	Through Hole	48	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	Solder	-40 C	105 ░C	2	Black	Female	4-40 Threaded Insert Top Mount Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Dual	96

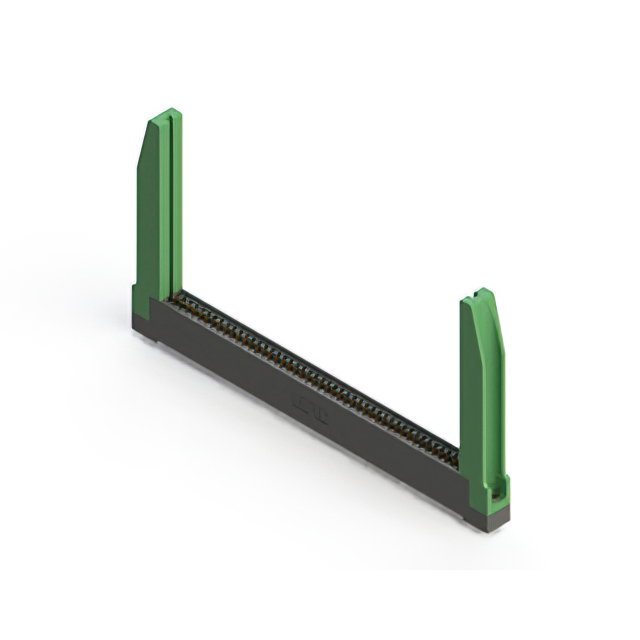

EDAC Inc. 395-096-556-278	2	Polyester Thermoplastic	Board Edge Straddle Mount	48	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	Solder	-40 C	105 ░C	2	Black	Female	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Dual	96	Card Extender Card Guides
EDAC Inc. 395-096-556-288	2	Polyester Thermoplastic	Board Edge Straddle Mount	48	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	Solder	-40 C	105 ░C	2	Black	Female	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Dual	96	Card Extender Card Guides
EDAC Inc. 395-096-555-888	2	Polyester Thermoplastic	Board Edge Straddle Mount	48	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	Solder Eyelet(s)	-40 C	105 ░C	2	Black	Female	4-40 Threaded Insert Top Mount Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Dual	96	Card Extender Card Guides

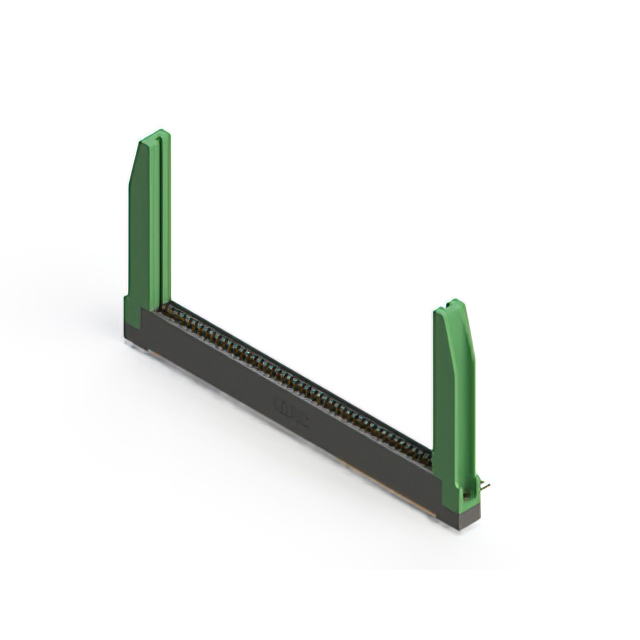

EDAC Inc. 395-096-559-278	2	Polyester Thermoplastic	Right Angle Through Hole	48	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	Solder	-40 C	105 ░C	2	Black	Female	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Dual	96	Card Guides
EDAC Inc. 395-096-521-504	2	Polyester Thermoplastic	Through Hole	48	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	Solder	-40 C	105 ░C	2	Black	Female		0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Dual	96		0.156 "	3.96 mm

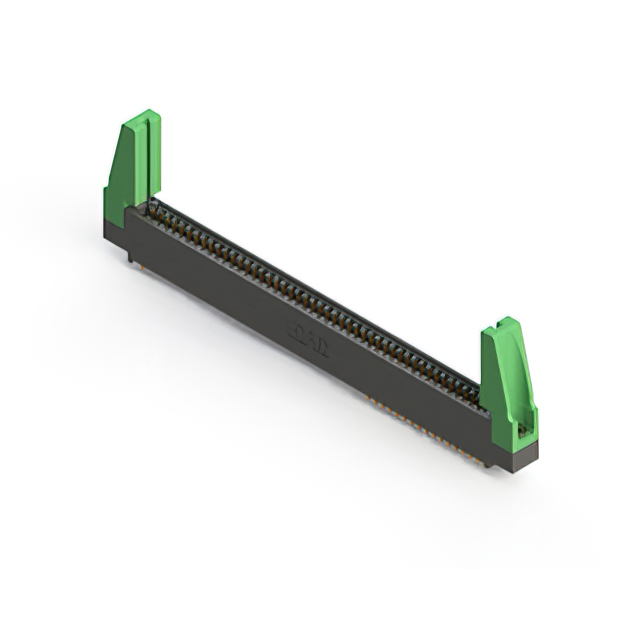

EDAC Inc. 395-096-541-588	2	Polyester Thermoplastic	Through Hole	48	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	Wire Wrap	-40 C	105 ░C	2	Black	Female	4-40 Threaded Insert Top Mount Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Dual	96	Card Guides
EDAC Inc. 395-096-524-808	2	Polyester Thermoplastic	Through Hole	48	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	Solder	-40 C	105 ░C	2	Black	Female	4-40 Threaded Insert Top Mount Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Dual	96
EDAC Inc. 395-096-541-807	2	Polyester Thermoplastic	Through Hole	48	Copper Alloy	0.1 "	2.54 mm	Non Specified - Dual Edge	Wire Wrap	-40 C	105 ░C	2	Black	Female	M3 Threaded Insert Top Mount Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	0.25 Ám	10 Áin	Dual	96
