TDF859 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
IC AMP D MONO/STEREO 250W 36HSOP
| Part | Package Width | Package Features | Package Name | Package Length | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Mounting Type | Type | Output Type | Features | Maximum Output Power (per Channel) | Channels | Load Impedance | Qualification | Grade | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | 11 mm | Exposed Pad | 36-BSSOP 36-HSOP | 0.433 in | 8 V | 35 V | Surface Mount | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection | 135 W 250 W | 1 2 | 2 Ohm 4 Ohm | ||||
NXP USA Inc. | 11 mm | Exposed Pad | 36-BSSOP 36-HSOP | 0.433 in | 8 V | 35 V | Surface Mount | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection | 135 W 250 W | 1 2 | 2 Ohm 4 Ohm | ||||
NXP USA Inc. | 11 mm | Exposed Pad | 36-BSSOP 36-HSOP | 0.433 in | 8 V | 35 V | Surface Mount | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection | 135 W 250 W | 1 2 | 2 Ohm 4 Ohm | ||||

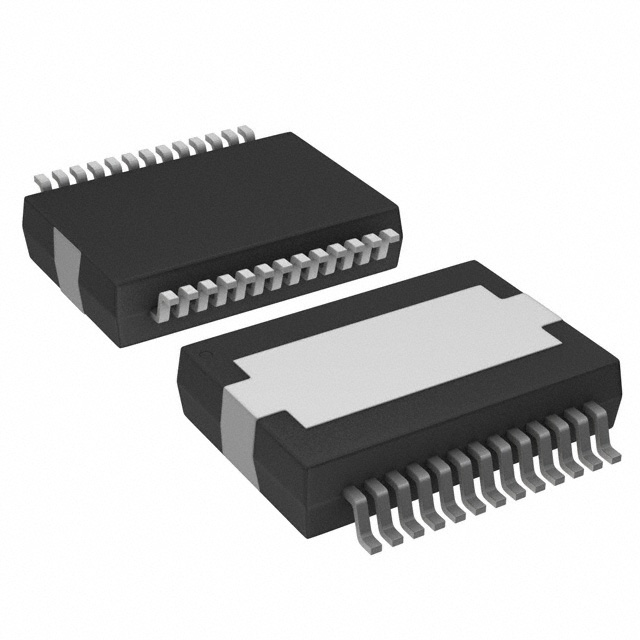

 NXP USA Inc. | 11 mm | Exposed Pad | 24-BSOP 24-HSOP | 0.433 in | 14 V | 29 V | Surface Mount | Class D | Depop Short-Circuit and Thermal Protection | 100 W | 2 | 4 Ohm | AEC-Q100 | Automotive | |||
NXP USA Inc. | 11 mm | Exposed Pad | 36-BSSOP 36-HSOP | 0.433 in | 8 V | 18 V | Surface Mount | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection | 70 W 85 W | 1 2 | 1 Ohm 2 Ohm | 85 °C | -40 °C | ||
NXP USA Inc. | 11 mm | Exposed Pad | 36-BSSOP 36-HSOP | 0.433 in | 8 V | 35 V | Surface Mount | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection | 135 W 250 W | 1 2 | 2 Ohm 4 Ohm | ||||
NXP USA Inc. | 11 mm | Exposed Pad | 36-BSSOP 36-HSOP | 0.433 in | 8 V | 18 V | Surface Mount | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection | 70 W 85 W | 1 2 | 1 Ohm 2 Ohm | 85 °C | -40 °C | ||
NXP USA Inc. | 11 mm | Exposed Pad | 24-BSOP 24-HSOP | 0.433 in | -14 V | 29 V | Surface Mount | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby | 80 W 160 W | 1 2 | 4 Ohm 8 Ohm | 85 °C | -40 °C | ||
NXP USA Inc. | 11 mm | Exposed Pad | 24-BSOP 24-HSOP | 0.433 in | -14 V | 29 V | Surface Mount | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | Depop Differential Inputs Mute Short-Circuit and Thermal Protection Standby | 100 W 310 W | 1 2 | 4 Ohm | 85 °C | -40 °C | ||
NXP USA Inc. | 11 mm | Exposed Pad | 36-BSSOP 36-HSOP | 0.433 in | 8 V | 35 V | Surface Mount | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection | 135 W 250 W | 1 2 | 2 Ohm 4 Ohm | 85 °C | -40 °C |
