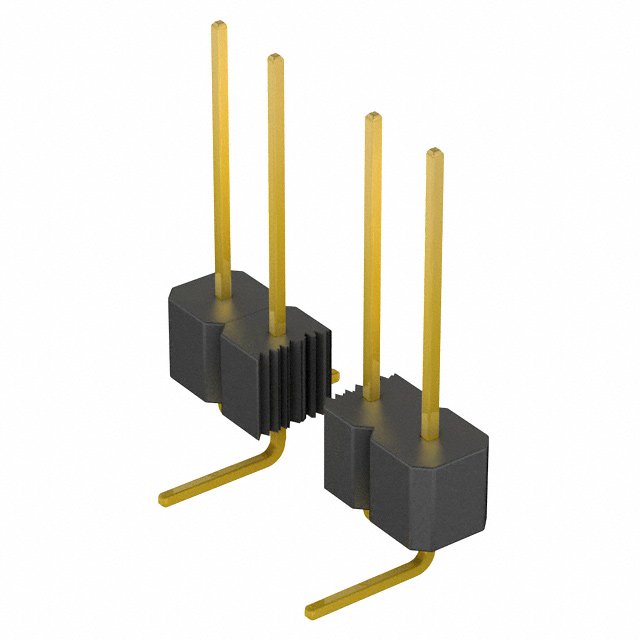

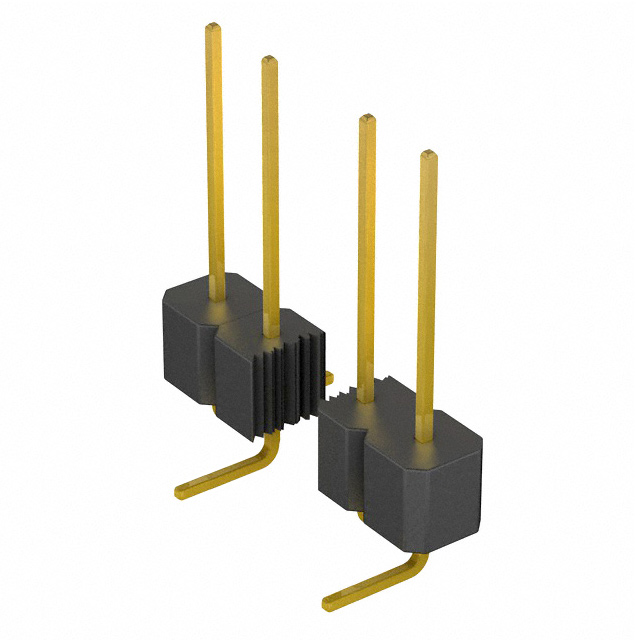

GZC04 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER SMD R/A 4POS 2.54MM
| Part | Contact Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Shrouding | Mounting Type | Contact Shape | Insulation Color | Contact Length - Mating [x] | Contact Length - Mating [x] | Number of Rows | Number of Positions | Style | Voltage Rating | Contact Finish - Mating | Current Rating (Amps) | Connector Type | Number of Positions Loaded | Termination | Fastening Type | Pitch - Mating | Pitch - Mating | Contact Material | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Male Pin | 10 çin | 0.25 çm | Nylon 9T Polyamide (PA9T) | Unshrouded | Surface Mount Right Angle | Square | Black | 0.318 " | 8.08 mm | 1 | 4 | Board to Board Cable | 600 V | Gold | 3 A | Header | All | Solder | Push-Pull | 0.1 in | 2.54 mm | Phosphor Bronze | 3.56 mm | 0.14 in | 125 °C | -65 ░C | UL94 V-0 | Tin-Lead | 2.54 µm | 100 µin | |||
 Sullins Connector Solutions | Male Pin | 10 çin | 0.25 çm | Nylon 9T Polyamide (PA9T) | Unshrouded | Surface Mount | Square | Black | 0.318 " | 8.08 mm | 1 | 4 | Board to Board Cable | 600 V | Gold | 3 A | Header | All | Solder | Push-Pull | 0.1 in | 2.54 mm | Phosphor Bronze | 2.54 mm | 0.1 in | 125 °C | -65 ░C | UL94 V-0 | Tin-Lead | 2.54 µm | 100 µin | |||
Sullins Connector Solutions | Male Pin | 10 çin | 0.25 çm | Nylon 9T Polyamide (PA9T) | Unshrouded | Surface Mount Right Angle | Square | Black | 0.23 in | 1 | 4 | Board to Board Cable | 600 V | Gold | 3 A | Header | All | Solder | Push-Pull | 0.1 in | 2.54 mm | Phosphor Bronze | 3.56 mm | 0.14 in | 125 °C | -65 ░C | UL94 V-0 | Tin-Lead | 2.54 µm | 100 µin | 5.84 mm | |||
 Sullins Connector Solutions | Male Pin | 10 çin | 0.25 çm | Nylon 9T Polyamide (PA9T) | Unshrouded | Surface Mount | Square | Black | 0.23 in | 1 | 4 | Board to Board Cable | 600 V | Gold | 3 A | Header | All | Solder | Push-Pull | 0.1 in | 2.54 mm | Phosphor Bronze | 2.54 mm | 0.1 in | 125 °C | -65 ░C | UL94 V-0 | Tin-Lead | 2.54 µm | 100 µin | 5.84 mm | |||

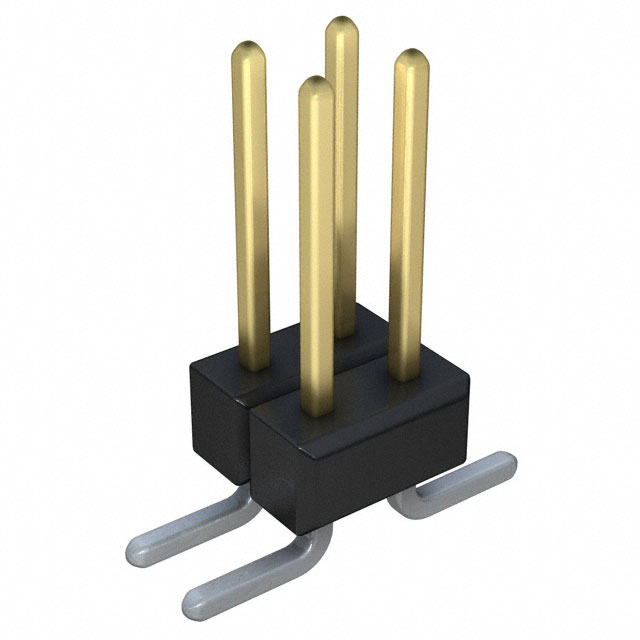

 Sullins Connector Solutions | Male Pin | 10 çin | 0.25 çm | Nylon 9T Polyamide (PA9T) | Unshrouded | Surface Mount | Square | Black | 0.318 " | 8.08 mm | 2 | 8 | Board to Board Cable | 600 V | Gold | 3 A | Header | All | Solder | Push-Pull | 0.1 in | 2.54 mm | Phosphor Bronze | 2.54 mm | 0.1 in | 125 °C | -65 ░C | UL94 V-0 | Tin-Lead | 2.54 µm | 100 µin | 2.54 mm | 0.1 in |
