890-18 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER VERT 12POS 2.54MM

...

Part	Contact Finish - Mating	Contact Finish - Post	Contact Material	Overall Contact Length	Overall Contact Length	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Insulation Material	Contact Length - Mating	Contact Length - Mating	Connector Type	Material Flammability Rating	Voltage Rating	Shrouding	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Shape	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Insulation Height	Insulation Height	Contact Type	Insulation Color	Number of Positions Loaded	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Overall Contact Length

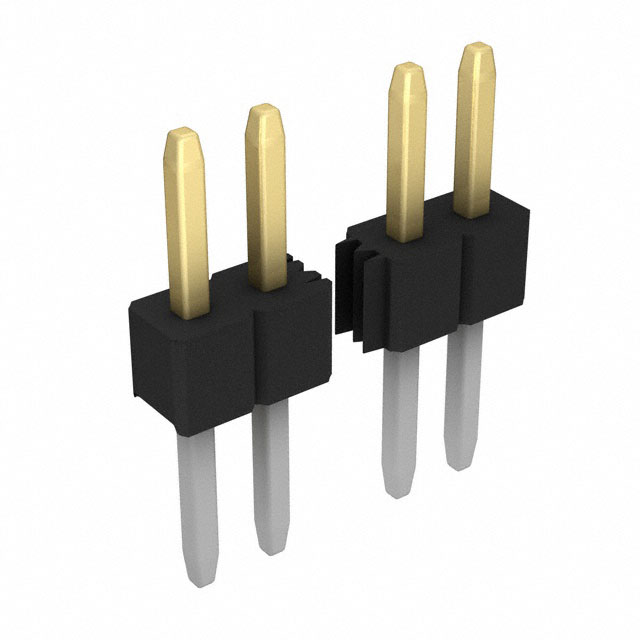

Preci-Dip 890-18-012-10-001101	Gold	Tin	Brass	11.64 mm	0.458 "	1	-55 C	125 °C	12	Glass Filled Nylon Polyamide (PA)	6 mm	0.236 in	Header	UL94 V-0	150 VDC	Unshrouded	0.1 "	2.54 mm	Push-Pull	Square	3 A	0.25 µm	10 µin	Solder	0.1 in	2.54 mm	Male Pin	Black	All	Through Hole	0.122 in	3.1 mm
Preci-Dip 890-18-009-10-004101	Gold	Tin	Brass	20.44 mm	0.805 in	1	-55 C	125 °C	9	Glass Filled Nylon Polyamide (PA)	14.91 mm	0.587 in	Header	UL94 V-0	150 VDC	Unshrouded	0.1 "	2.54 mm	Push-Pull	Square	3 A	0.25 µm	10 µin	Solder	0.1 in	2.54 mm	Male Pin	Black	All	Through Hole			0.118 in	3 mm
Preci-Dip 890-18-015-10-003101	Gold	Tin	Brass	14.04 mm	0.553 in	1	-55 C	125 °C	15	Glass Filled Nylon Polyamide (PA)	8.51 mm	0.335 in	Header	UL94 V-0	150 VDC	Unshrouded	0.1 "	2.54 mm	Push-Pull	Square	3 A	0.25 µm	10 µin	Solder	0.1 in	2.54 mm	Male Pin	Black	All	Through Hole			0.118 in	3 mm
Preci-Dip 890-18-013-10-003101	Gold	Tin	Brass	14.04 mm	0.553 in	1	-55 C	125 °C	13	Glass Filled Nylon Polyamide (PA)	8.51 mm	0.335 in	Header	UL94 V-0	150 VDC	Unshrouded	0.1 "	2.54 mm	Push-Pull	Square	3 A	0.25 µm	10 µin	Solder	0.1 in	2.54 mm	Male Pin	Black	All	Through Hole			0.118 in	3 mm
Preci-Dip 890-18-039-10-003101	Gold	Tin	Brass	14.04 mm	0.553 in	1	-55 C	125 °C	39	Glass Filled Nylon Polyamide (PA)	8.51 mm	0.335 in	Header	UL94 V-0	150 VDC	Unshrouded	0.1 "	2.54 mm	Push-Pull	Square	3 A	0.25 µm	10 µin	Solder	0.1 in	2.54 mm	Male Pin	Black	All	Through Hole			0.118 in	3 mm
Preci-Dip 890-18-021-10-004101	Gold	Tin	Brass	20.44 mm	0.805 in	1	-55 C	125 °C	21	Glass Filled Nylon Polyamide (PA)	14.91 mm	0.587 in	Header	UL94 V-0	150 VDC	Unshrouded	0.1 "	2.54 mm	Push-Pull	Square	3 A	0.25 µm	10 µin	Solder	0.1 in	2.54 mm	Male Pin	Black	All	Through Hole			0.118 in	3 mm

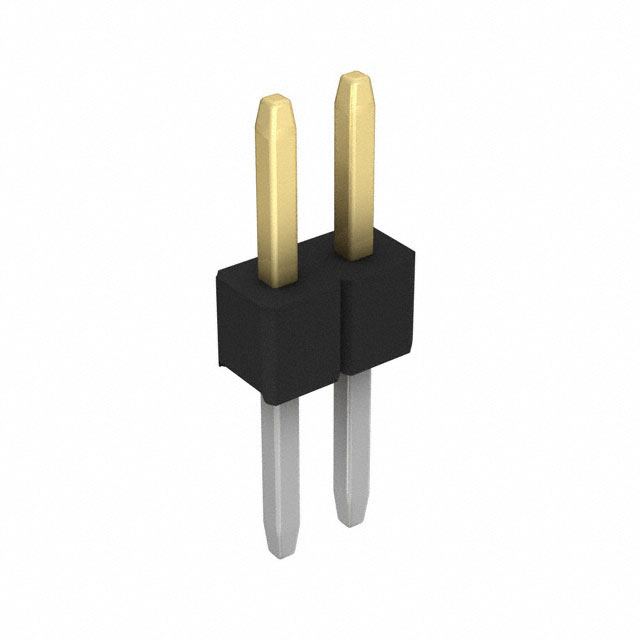

Preci-Dip 890-18-002-10-004101	Gold	Tin	Brass	20.44 mm	0.805 in	1	-55 C	125 °C	2	Glass Filled Nylon Polyamide (PA)	14.91 mm	0.587 in	Header	UL94 V-0	150 VDC	Unshrouded	0.1 "	2.54 mm	Push-Pull	Square	3 A	0.25 µm	10 µin	Solder	0.1 in	2.54 mm	Male Pin	Black	All	Through Hole			0.118 in	3 mm

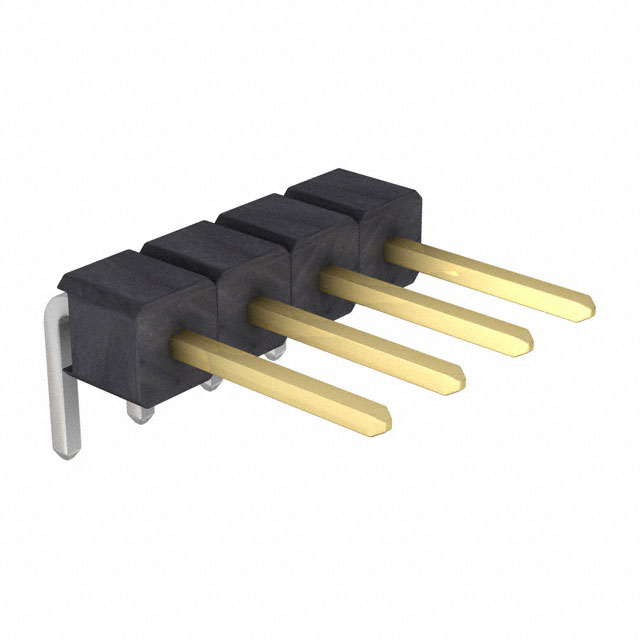

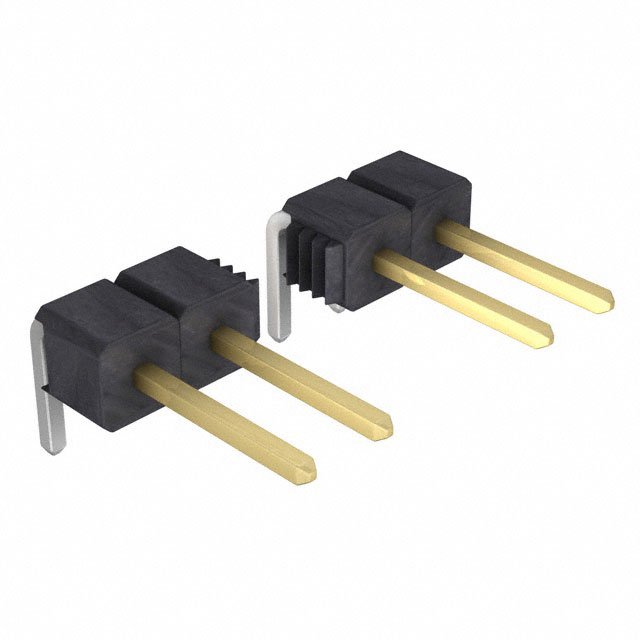

Preci-Dip 890-18-038-20-002101	Gold	Tin	Brass			1	-55 C	125 °C	38	Glass Filled Nylon Polyamide (PA)	7 mm		Header	UL94 V-0	150 VDC	Unshrouded	0.1 "	2.54 mm	Push-Pull	Square	3 A	0.25 µm	10 µin	Solder	0.1 in	2.54 mm	Male Pin	Black	All	Right Angle Through Hole			0.118 in	3 mm	0.276 in
Preci-Dip 890-18-035-10-002101	Gold	Tin	Brass	0.494 in		1	-55 C	125 °C	35	Glass Filled Nylon Polyamide (PA)	7 mm		Header	UL94 V-0	150 VDC	Unshrouded	0.1 "	2.54 mm	Push-Pull	Square	3 A	0.25 µm	10 µin	Solder	0.1 in	2.54 mm	Male Pin	Black	All	Through Hole			0.118 in	3 mm	0.276 in	12.54 mm
Preci-Dip 890-18-005-10-003101	Gold	Tin	Brass	14.04 mm	0.553 in	1	-55 C	125 °C	5	Glass Filled Nylon Polyamide (PA)	8.51 mm	0.335 in	Header	UL94 V-0	150 VDC	Unshrouded	0.1 "	2.54 mm	Push-Pull	Square	3 A	0.25 µm	10 µin	Solder	0.1 in	2.54 mm	Male Pin	Black	All	Through Hole			0.118 in	3 mm
