59S151 Series
Manufacturer: Rosenberger
Beta
⌘K

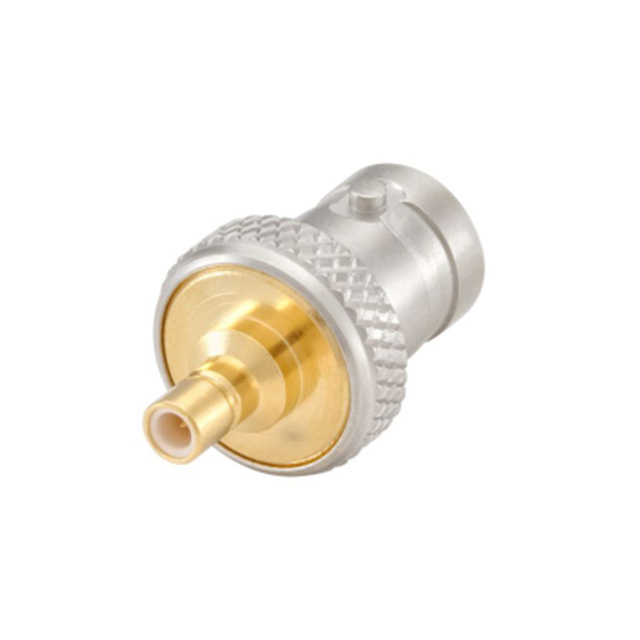

CONN ADAPT BNC JACK TO SMB PLUG
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Body Finish | Center Contact Material | Mating Cycles | Dielectric Material | Style | Mounting Type | Conversion Type | Impedance | Center Contact Plating | Adapter Type | Frequency - Max [Max] | Convert To (Adapter End) | Fastening Type | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 155 C | -55 C | Brass | Gold Nickel | Beryllium Copper | 500 | Polytetrafluoroethylene (PTFE) | Straight | Free Hanging (In-Line) | Between Series | 50 Ohms | Gold | Plug to Jack | 4 GHz | BNC Jack Female Socket | Bayonet Lock Snap-On | |
 Rosenberger | 155 C | -55 C | Brass | Gold Nickel | Brass | 500 | Polytetrafluoroethylene (PTFE) | Straight | Free Hanging (In-Line) | Between Series | 50 Ohms | Gold | Plug to Plug | 4 GHz | BNC Plug Male Pin | Bayonet Lock Snap-On | Male to Male |
