148-0701 Series
Manufacturer: Cinch Connectivity Solutions Johnson
Beta
⌘K
1.85MM JACK, PCB COMPRESSION MOU
| Part | Center Contact Plating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Shield Termination | Frequency - Max [Max] | Connector Style | Features | Connector Type | Contact Termination | Housing Color | Center Contact Material | Number of Ports | Mounting Feature | Impedance | Fastening Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

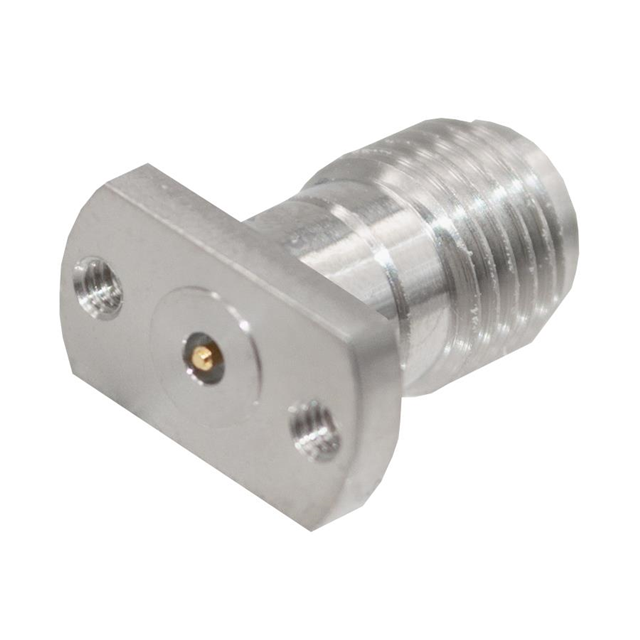

 Cinch Connectivity Solutions Johnson | Gold | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Stainless Steel | Screw | 67 GHz | 1.85 mm | Mounting Hardware | Female Socket Jack | Solder | Silver | Beryllium Copper | 1 | Flange | 50 Ohms | Threaded | Surface Mount |

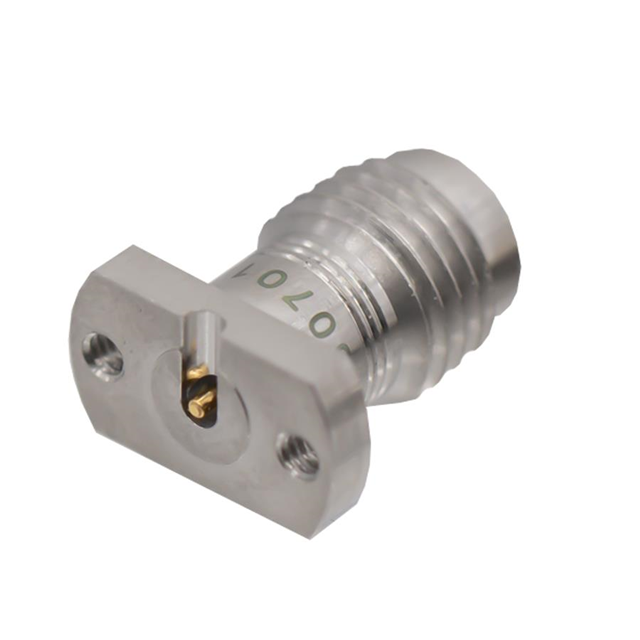

 Cinch Connectivity Solutions Johnson | Gold | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Stainless Steel | Screw | 67 GHz | 1.85 mm | Mounting Hardware | Female Socket Jack | Solder | Silver | Beryllium Copper | 1 | Flange | 50 Ohms | Threaded | Surface Mount |
 Cinch Connectivity Solutions Johnson | Gold | 500 | -55 C | 125 °C | Polytetrafluoroethylene (PTFE) | Stainless Steel | Screw | 67 GHz | 1.85 mm | Mounting Hardware | Female Socket Jack | Compression | Silver | Beryllium Copper | 1 | 50 Ohms | Threaded | Board Edge End Launch |
