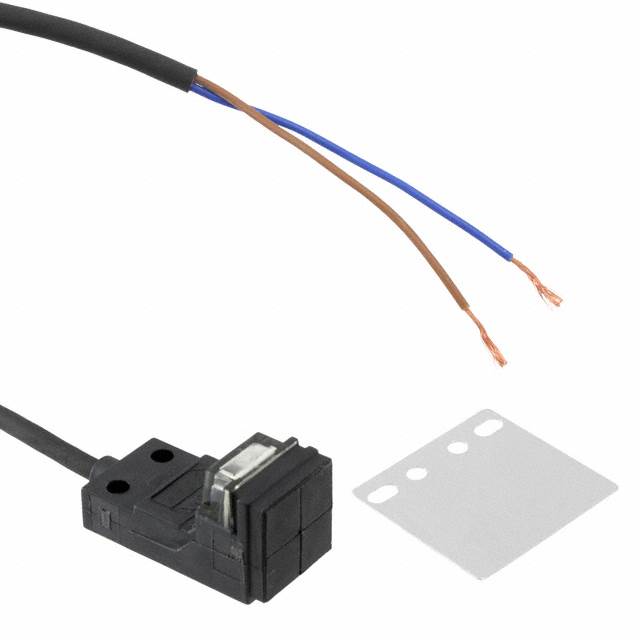

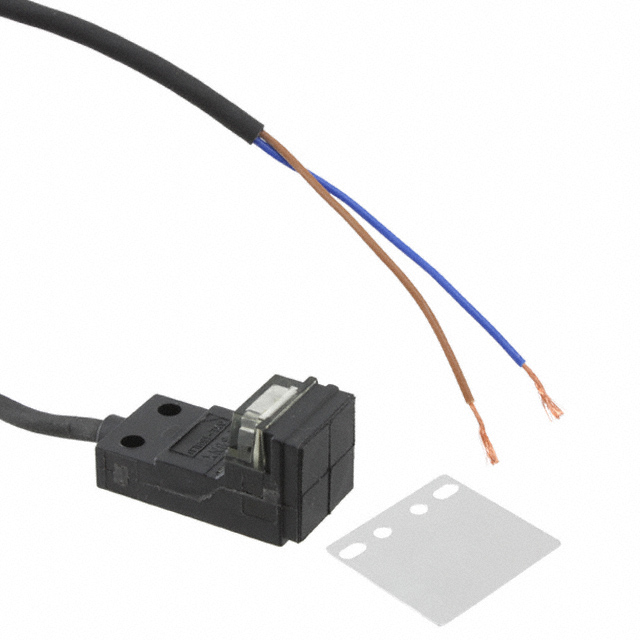

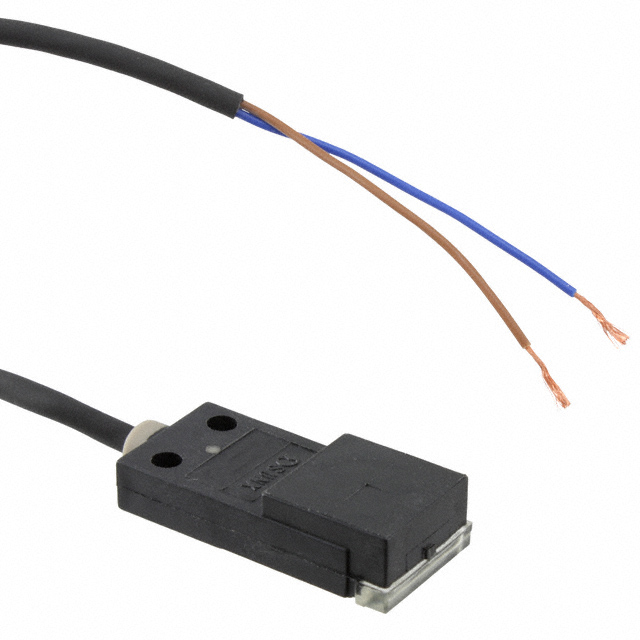

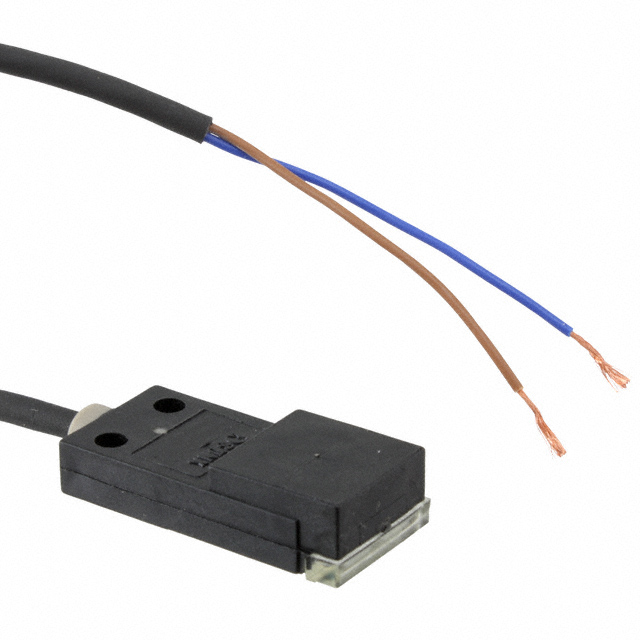

GXL-15 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SENSOR PROX INDUCTIVE 6.4MM MOD

Part	Sensing Distance	Sensing Distance	Ingress Protection	Shielding	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensor Type	Material - Body	Indicator [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Termination Style	Package / Case	Response Frequency
Panasonic Industrial Automation Sales GXL-15FLUI	6.4 mm	0.252 in	IP67	Unshielded	12 V	24 V	Inductive	Plastic	LED	70 °C	-25 °C	2-Wire NPN-NO	Cable Leads	Module
Panasonic Industrial Automation Sales GXL-15FUIB-R	4 mm	0.157 in	IP67	Unshielded	12 V	24 V	Inductive	Plastic	LED	70 °C	-25 °C	NPN-NC 2-Wire	Cable Leads	Module
Panasonic Industrial Automation Sales GXL-15FUI-R-C5	4 mm	0.157 in	IP67	Unshielded	12 V	24 V	Inductive	Plastic	LED	70 °C	-25 °C	2-Wire NPN-NO	Cable Leads	Module
Panasonic Industrial Automation Sales GXL-15FUB-R-C5	4 mm	0.157 in	IP67	Unshielded	12 V	24 V	Inductive	Plastic	LED	70 °C	-25 °C	NPN-NC 2-Wire	Cable Leads	Module	1 kHz
Panasonic Industrial Automation Sales GXL-15HLU-C5	4 mm	0.157 in	IP67	Unshielded	12 V	24 V	Inductive	Plastic	LED	70 °C	-25 °C	2-Wire NPN-NO	Cable Leads	Module	1 kHz
Panasonic Industrial Automation Sales GXL-15FUIB	4 mm	0.157 in	IP67	Unshielded	12 V	24 V	Inductive	Plastic	LED	70 °C	-25 °C	NPN-NC 2-Wire	Cable Leads	Module
Panasonic Industrial Automation Sales GXL-15FUB	4 mm	0.157 in	IP67	Unshielded	12 V	24 V	Inductive	Plastic	LED	70 °C	-25 °C	NPN-NC 2-Wire	Cable Leads	Module	1 kHz
Panasonic Industrial Automation Sales GXL-15HLUB-R-C5	4 mm	0.157 in	IP67	Unshielded	12 V	24 V	Inductive	Plastic	LED	70 °C	-25 °C	NPN-NC 2-Wire	Cable Leads	Module	1 kHz
Panasonic Industrial Automation Sales GXL-15HLU	4 mm	0.157 in	IP67	Unshielded	12 V	24 V	Inductive	Plastic	LED	70 °C	-25 °C	2-Wire NPN-NO	Cable Leads	Module	1 kHz
Panasonic Industrial Automation Sales GXL-15FU-R	4 mm	0.157 in	IP67	Unshielded	12 V	24 V	Inductive	Plastic	LED	70 °C	-25 °C	2-Wire NPN-NO	Cable Leads	Module	1 kHz
