3314N Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

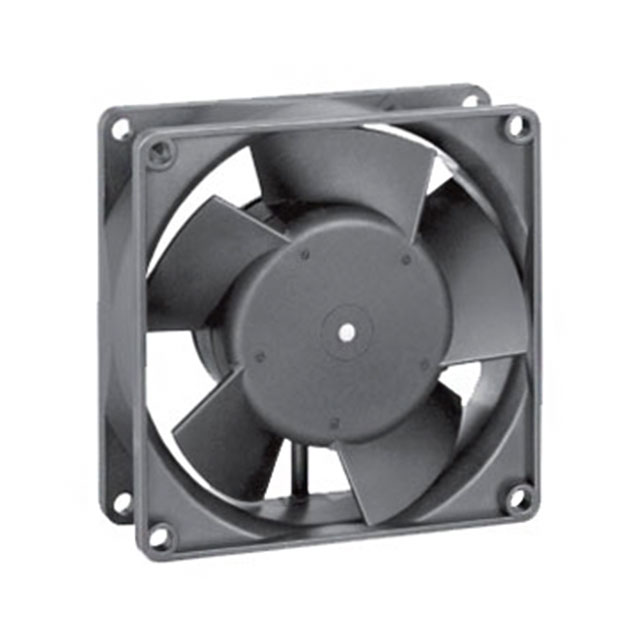

DC AXIAL FAN, 24 V, SQUARE, 92 MM, 32 MM, BALL BEARING, 47 CFM
| Part | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Lifetime @ Temp. | Approval Agency | Air Flow | Air Flow | RPM | Bearing Type | Fan Type | Noise | Termination | Features | Operating Temperature [Min] | Operating Temperature [Max] | Width [y] | Voltage - Rated | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Weight | Weight | Air Flow | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 18 VDC | 28 V | Polyamide (PA) Nylon Fiberglass Reinforced | 70000 Hrs | UL | 47 CFM | 1.32 m³/min | 2650 RPM | Ball | Tubeaxial | 35 dB | 3 Wire Leads | Speed Sensor (Tach) | -4 °F | 167 °F | 32 mm | 24 VDC | 92 mm | 92 mm | 1.8 W | 190.06 g | 0.419 lb | ||
ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 18 VDC | 28 V | Polyamide (PA) Nylon Fiberglass Reinforced | 57500 Hrs | UL | 63 CFM | 1.76 m³/min | 3450 RPM | Ball | Tubeaxial | 42 dB | 3 Wire Leads | Speed Sensor (Tach) | -4 °F | 167 °F | 32 mm | 24 VDC | 92 mm | 92 mm | 3.5 W | 190.06 g | 0.419 lb | 63 CFM | |
 ebm-papst Inc. | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 18 VDC | 28 V | Polyamide (PA) Nylon Fiberglass Reinforced | 65000 Hrs | UL | 46.9 CFM | 1.31 mł/min | 2650 RPM | Ball | Tubeaxial | 35 dB | 2 Wire Leads | -4 °F | 167 °F | 32 mm | 24 VDC | 92 mm | 92 mm | 1.8 W | 190.06 g | 0.419 lb | IP68 - Dust Tight Waterproof |
