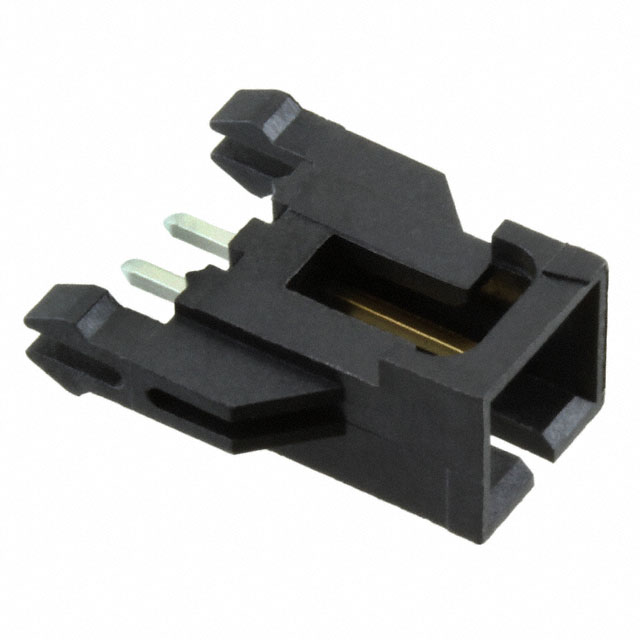

070541 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 4POS 2.54MM

Part	Number of Positions Loaded	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating [x]	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Termination	Shrouding	Insulation Height	Insulation Height	Insulation Color	Applications	Overall Contact Length	Overall Contact Length	Connector Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Style	Contact Finish - Mating	Material Flammability Rating	Contact Material	Contact Shape	Number of Positions	Current Rating (Amps)	Voltage Rating	Contact Type
Molex 0705419038	All	Polyester Glass Filled	-40 °C	105 ░C	6.1 mm	0.24 in	Latch Holder	0.1 in	2.54 mm	Tin	15 µin	0.38 µm	1	Solder	Shrouded - 4 Wall	0.465 in	11.8 mm	Black	Automotive General Purpose Industrial Medical	11.94 mm	0.47 "	Header	0.13 in	3.3 mm	74.8 Áin	1.9 Ám	Through Hole	Board to Cable/Wire	Gold	UL94 V-0	Phosphor Bronze	Square	4	3 A	250 VDC	Male Pin
Molex 0705410036	All	Polyester Glass Filled	-40 °C	105 ░C	6.1 mm	0.24 in	Latch Holder	0.1 in	2.54 mm	Tin	15 µin	0.38 µm	1	Solder	Shrouded - 4 Wall	0.465 in	11.8 mm	Black	Automotive General Purpose Industrial Medical	11.94 mm	0.47 "	Header	0.13 in	3.3 mm	74.8 Áin	1.9 Ám	Through Hole	Board to Cable/Wire	Gold	UL94 V-0	Phosphor Bronze	Square	2	3 A	250 VDC	Male Pin
Molex 0705410041	All	Polyester Glass Filled	-40 °C	105 ░C	6.1 mm	0.24 in	Latch Holder	0.1 in	2.54 mm	Tin	15 µin	0.38 µm	1	Solder	Shrouded - 4 Wall	0.465 in	11.8 mm	Black	Automotive General Purpose Industrial Medical	11.94 mm	0.47 "	Header	0.13 in	3.3 mm	74.8 Áin	1.9 Ám	Through Hole	Board to Cable/Wire	Gold	UL94 V-0	Phosphor Bronze	Square	7	3 A	250 VDC	Male Pin
Molex 0705410077	All	Polyester Glass Filled	-40 °C	105 ░C	6.1 mm	0.24 in	Latch Holder	0.1 in	2.54 mm	Tin	30 Áin	0.76 Ám	1	Solder	Shrouded - 4 Wall	0.465 in	11.8 mm	Black	Automotive General Purpose Industrial Medical	11.94 mm	0.47 "	Header	0.13 in	3.3 mm	74.8 Áin	1.9 Ám	Through Hole	Board to Cable/Wire	Gold	UL94 V-0	Phosphor Bronze	Square	8	3 A	250 VDC	Male Pin
Molex 0705410001	All	Polyester Glass Filled	-40 °C	105 ░C	6.1 mm	0.24 in	Latch Holder	0.1 in	2.54 mm	Tin	150 Áin	3.81 Ám	1	Solder	Shrouded - 4 Wall	0.465 in	11.8 mm	Black	Automotive General Purpose Industrial Medical	11.94 mm	0.47 "	Header	0.13 in	3.3 mm			Through Hole	Board to Cable/Wire		UL94 V-0	Phosphor Bronze	Square	2	3 A	250 VDC	Male Pin

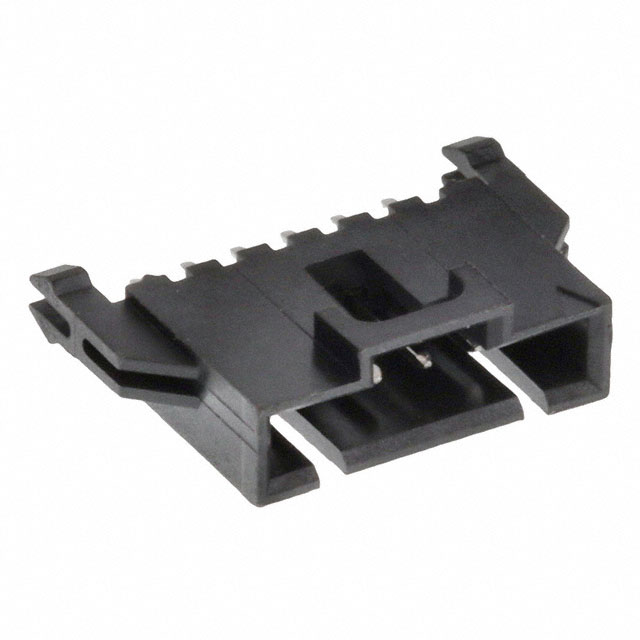

Molex 0705410005	All	Polyester Glass Filled	-40 °C	105 ░C	6.1 mm	0.24 in	Latch Holder	0.1 in	2.54 mm	Tin	150 Áin	3.81 Ám	1	Solder	Shrouded - 4 Wall	0.465 in	11.8 mm	Black	Automotive General Purpose Industrial Medical	11.94 mm	0.47 "	Header	0.13 in	3.3 mm			Through Hole	Board to Cable/Wire		UL94 V-0	Phosphor Bronze	Square	6	3 A	250 VDC	Male Pin

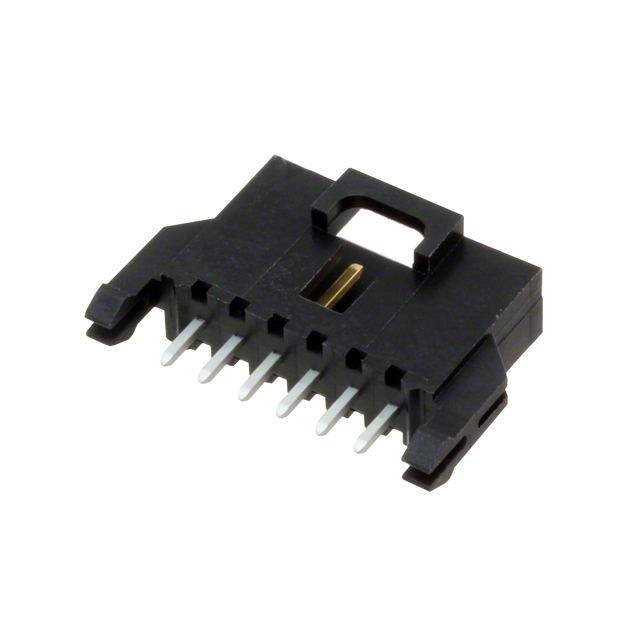

Molex 0705410040	All	Polyester Glass Filled	-40 °C	105 ░C	6.1 mm	0.24 in	Latch Holder	0.1 in	2.54 mm	Tin	15 µin	0.38 µm	1	Solder	Shrouded - 4 Wall	0.465 in	11.8 mm	Black	Automotive General Purpose Industrial Medical	11.94 mm	0.47 "	Header	0.13 in	3.3 mm	74.8 Áin	1.9 Ám	Through Hole	Board to Cable/Wire	Gold	UL94 V-0	Phosphor Bronze	Square	6	3 A	250 VDC	Male Pin
Molex 0705410003	All	Polyester Glass Filled	-40 °C	105 ░C	6.1 mm	0.24 in	Latch Holder	0.1 in	2.54 mm	Tin	150 Áin	3.81 Ám	1	Solder	Shrouded - 4 Wall	0.465 in	11.8 mm	Black	Automotive General Purpose Industrial Medical	11.94 mm	0.47 "	Header	0.13 in	3.3 mm			Through Hole	Board to Cable/Wire		UL94 V-0	Phosphor Bronze	Square	4	3 A	250 VDC	Male Pin
Molex 0705410071	All	Polyester Glass Filled	-40 °C	105 ░C	6.1 mm	0.24 in	Latch Holder	0.1 in	2.54 mm	Tin	30 Áin	0.76 Ám	1	Solder	Shrouded - 4 Wall	0.465 in	11.8 mm	Black	Automotive General Purpose Industrial Medical	11.94 mm	0.47 "	Header	0.13 in	3.3 mm	74.8 Áin	1.9 Ám	Through Hole	Board to Cable/Wire	Gold	UL94 V-0	Phosphor Bronze	Square	2	3 A	250 VDC	Male Pin
Molex 0705410073	All	Polyester Glass Filled	-40 °C	105 ░C	6.1 mm	0.24 in	Latch Holder	0.1 in	2.54 mm	Tin	30 Áin	0.76 Ám	1	Solder	Shrouded - 4 Wall	0.465 in	11.8 mm	Black	Automotive General Purpose Industrial Medical	11.94 mm	0.47 "	Header	0.13 in	3.3 mm	74.8 Áin	1.9 Ám	Through Hole	Board to Cable/Wire	Gold	UL94 V-0	Phosphor Bronze	Square	4	3 A	250 VDC	Male Pin
