2371899 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

PCIE G5 CON,SMT,S-CUT,36P,15",10

Part	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation [custom]	Contact Finish	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Gender	Number of Rows	Contact Material	Termination	Mounting Type	Contact Type	Color	Card Type	Read Out	Card Thickness	Card Thickness	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Features	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]
TE Connectivity Raychem Cable Protection 4-2371899-1	15 µin	0.38 µm	Plastic	Gold	2	11	7	Female	2	Copper Alloy	Solder	Surface Mount	Cantilever	Black	PCI Express™	Dual	0.062 in	1.57 mm	36	85 °C	-40 °C	Board Guide Locking Ramp	0.039 in	1 mm
TE Connectivity Raychem Cable Protection 2371899-4			Plastic	Gold	2			Female	2	Copper Alloy	Solder	Surface Mount	Cantilever	Black	PCI Express™	Dual	0.062 in	1.57 mm	164	85 °C	-40 °C	Board Guide Locking Ramp Solder Retention	0.039 in	1 mm	71	11	Flash
TE Connectivity Raychem Cable Protection 1-2371899-3	15 µin	0.38 µm	Plastic	Gold	2		11	Female	2	Copper Alloy	Solder	Surface Mount	Cantilever	Black	PCI Express™	Dual	0.062 in	1.57 mm	98	85 °C	-40 °C	Board Guide Locking Ramp Solder Retention	0.039 in	1 mm				38

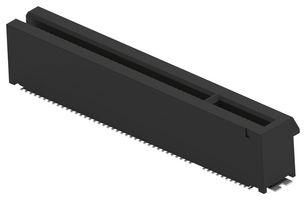

TE Connectivity Raychem Cable Protection 4-2371899-3	15 µin	0.38 µm	Plastic	Gold	2			Female	2	Copper Alloy	Solder	Surface Mount	Cantilever	Black	PCI Express™	Dual	0.062 in	1.57 mm	98	85 °C	-40 °C	Board Guide	0.039 in	1 mm					49
TE Connectivity Raychem Cable Protection 4-2371899-2	15 µin	0.38 µm	Plastic	Gold	2			Female	2	Copper Alloy	Solder	Surface Mount	Cantilever	Black	PCI Express™	Dual	0.062 in	1.57 mm	64	85 °C	-40 °C	Board Guide	0.039 in	1 mm					32
TE Connectivity Raychem Cable Protection 4-2371899-5	15 µin	0.38 µm	Plastic	Gold	2	11	7	Female	2	Copper Alloy	Solder	Surface Mount	Cantilever	Black	PCI Express™	Dual	0.062 in	1.57 mm	36	85 °C	-40 °C	Board Guide Locking Ramp Solder Retention	0.039 in	1 mm
TE Connectivity Raychem Cable Protection 5-2371899-2	30 Áin	0.76 Ám	Plastic	Gold	2		11	Female	2	Copper Alloy	Solder	Surface Mount	Cantilever	Black	PCI Express™	Dual	0.062 in	1.57 mm	64	85 °C	-40 °C	Board Guide Locking Ramp Solder Retention	0.039 in	1 mm				21
