XLG-200 Series

Catalog

200W LED POWER SUPPLY O/P +142~2

Part	Mounting Type	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Ratings	Power (Watts)	Approval Agency	Current - Output (Max) [Max]	Features	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Termination Style	Topology	Voltage - Isolation	Voltage - Output [Max]	Voltage - Output [Min]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]

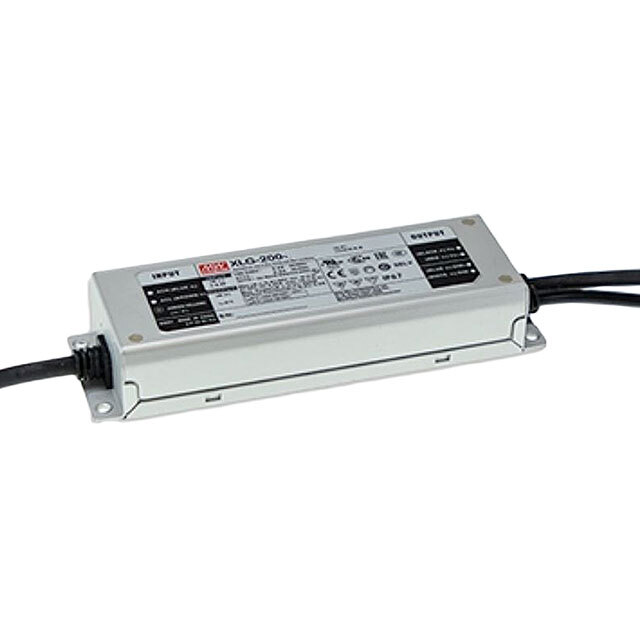

MEAN WELL USA Inc. XLG-200-L-A	Chassis Mount	Constant Current	175 mm	6.89 in	63 mm	2.48 in	1.4 "	35.5 mm	IP67	200 Watts	CB CCC CE cURus EAC ENEC RCM	700 mA	OCP OTP OVP SCP	100 VAC	1	305 VAC	Wire Leads	AC DC Converter	4.2 kV	285 V	142 V	94 %	90 °C	-40 C
