892-80 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER VERT 6POS 2.54MM

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Insulation Height	Insulation Height	Contact Type	Connector Type	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Termination	Mounting Type	Material Flammability Rating	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Number of Rows [custom]	Voltage Rating	Insulation Color	Contact Material	Fastening Type	Shrouding	Number of Positions	Contact Length - Post	Contact Length - Post	Overall Contact Length	Contact Length - Mating [x]	Insulation Height [z]	Insulation Height [z]
Preci-Dip 892-80-006-10-001101	-55 C	125 °C	Square	0.1 in	2.54 mm	0.122 in	3.1 mm	Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Male Pin	Header	11.64 mm	0.458 "	3 A	0.1 "	2.54 mm	Solder	Through Hole	UL94 V-0	All	6 mm	0.236 in	Tin	2	150 VDC	Black	Brass	Push-Pull	Unshrouded	6

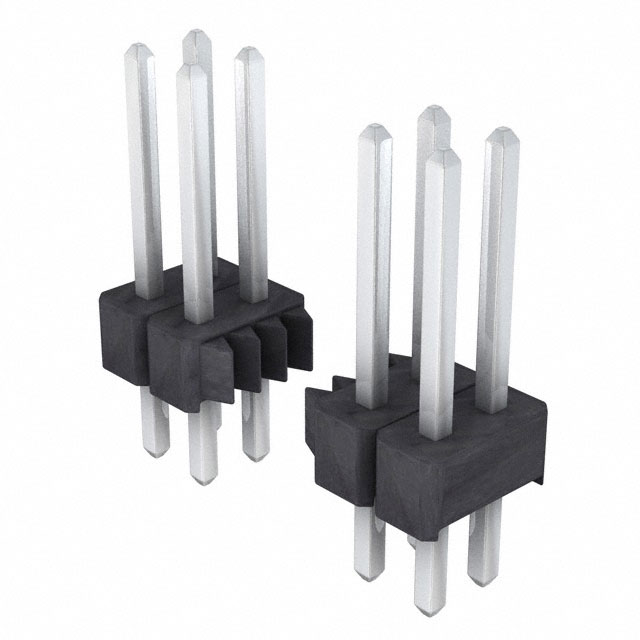

Preci-Dip 892-80-066-10-003101	-55 C	125 °C	Square	0.1 in	2.54 mm			Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Male Pin	Header	14.04 mm	0.553 in	3 A	0.1 "	2.54 mm	Solder	Through Hole	UL94 V-0	All	8.51 mm	0.335 in	Tin	2	150 VDC	Black	Brass	Push-Pull	Unshrouded	66	0.118 in	3 mm

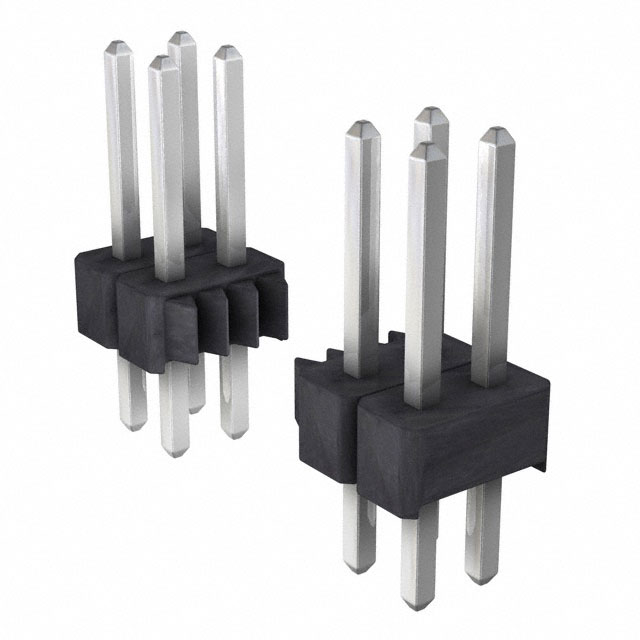

Preci-Dip 892-80-054-10-002101	-55 C	125 °C	Square	0.1 in	2.54 mm			Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Male Pin	Header	0.494 in		3 A	0.1 "	2.54 mm	Solder	Through Hole	UL94 V-0	All	7 mm		Tin	2	150 VDC	Black	Brass	Push-Pull	Unshrouded	54	0.118 in	3 mm	12.54 mm	0.276 in
Preci-Dip 892-80-018-10-003101	-55 C	125 °C	Square	0.1 in	2.54 mm			Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Male Pin	Header	14.04 mm	0.553 in	3 A	0.1 "	2.54 mm	Solder	Through Hole	UL94 V-0	All	8.51 mm	0.335 in	Tin	2	150 VDC	Black	Brass	Push-Pull	Unshrouded	18	0.118 in	3 mm
Preci-Dip 892-80-026-10-003101	-55 C	125 °C	Square	0.1 in	2.54 mm			Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Male Pin	Header	14.04 mm	0.553 in	3 A	0.1 "	2.54 mm	Solder	Through Hole	UL94 V-0	All	8.51 mm	0.335 in	Tin	2	150 VDC	Black	Brass	Push-Pull	Unshrouded	26	0.118 in	3 mm

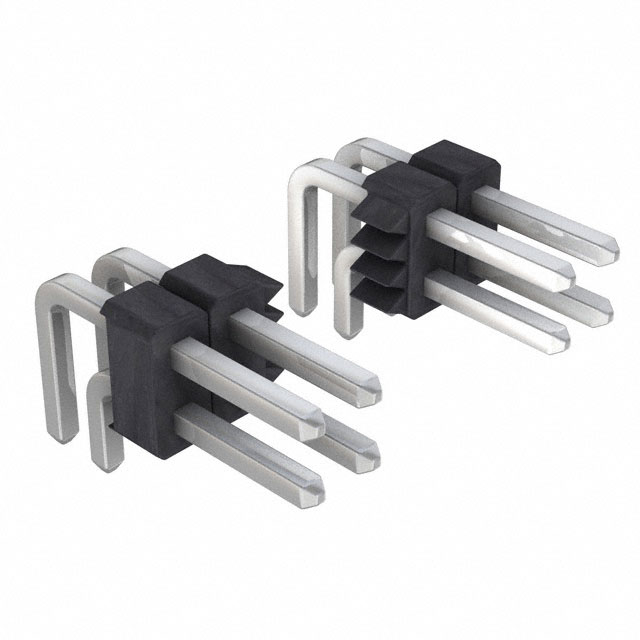

Preci-Dip 892-80-078-20-001101	-55 C	125 °C	Square	0.1 in	2.54 mm			Glass Filled Nylon Polyamide (PA)			Male Pin	Header			3 A	0.1 "	2.54 mm	Solder	Right Angle Through Hole	UL94 V-0	All	6 mm	0.236 in	Tin	2	150 VDC	Black	Brass	Push-Pull	Unshrouded	78	0.118 in	3 mm			0.2 in	5.08 mm

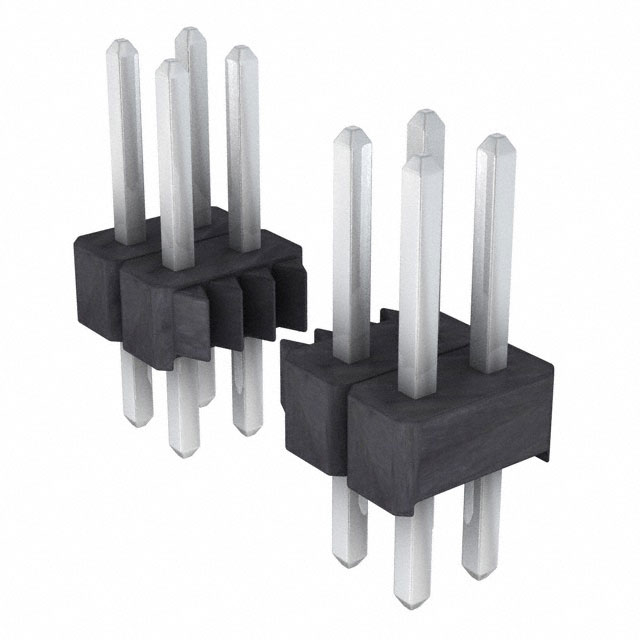

Preci-Dip 892-80-046-10-001101	-55 C	125 °C	Square	0.1 in	2.54 mm	0.122 in	3.1 mm	Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Male Pin	Header	11.64 mm	0.458 "	3 A	0.1 "	2.54 mm	Solder	Through Hole	UL94 V-0	All	6 mm	0.236 in	Tin	2	150 VDC	Black	Brass	Push-Pull	Unshrouded	46

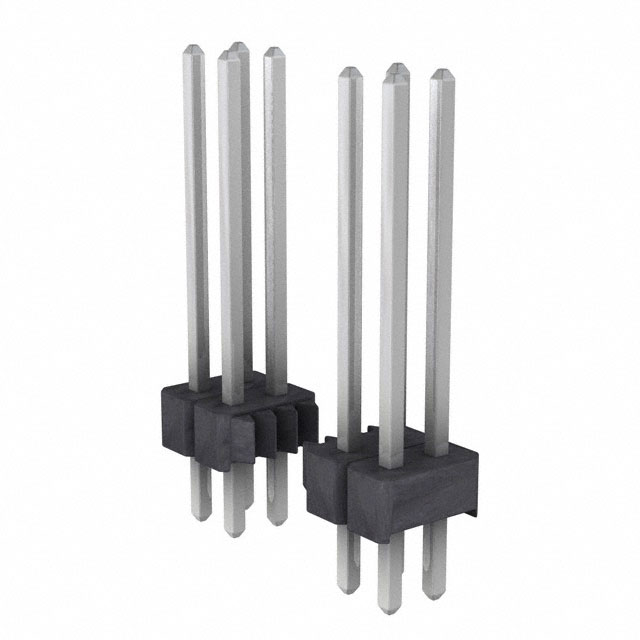

Preci-Dip 892-80-030-10-004101	-55 C	125 °C	Square	0.1 in	2.54 mm			Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Male Pin	Header	20.44 mm	0.805 in	3 A	0.1 "	2.54 mm	Solder	Through Hole	UL94 V-0	All	14.91 mm	0.587 in	Tin	2	150 VDC	Black	Brass	Push-Pull	Unshrouded	30	0.118 in	3 mm
Preci-Dip 892-80-068-10-003101	-55 C	125 °C	Square	0.1 in	2.54 mm			Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Male Pin	Header	14.04 mm	0.553 in	3 A	0.1 "	2.54 mm	Solder	Through Hole	UL94 V-0	All	8.51 mm	0.335 in	Tin	2	150 VDC	Black	Brass	Push-Pull	Unshrouded	68 positions	0.118 in	3 mm
Preci-Dip 892-80-016-20-001101	-55 C	125 °C	Square	0.1 in	2.54 mm			Glass Filled Nylon Polyamide (PA)			Male Pin	Header			3 A	0.1 "	2.54 mm	Solder	Right Angle Through Hole	UL94 V-0	All	6 mm	0.236 in	Tin	2	150 VDC	Black	Brass	Push-Pull	Unshrouded	16	0.118 in	3 mm			0.2 in	5.08 mm
