RS614 Series

Catalog

CMC 120UH 1A 2LN TH

Part	Inductance @ Frequency	Current Rating (Max)	Approval Agency	Number of Lines	Height (Max) [z]	Height (Max) [z]	DC Resistance (DCR) (Max)	Voltage Rating - AC	Filter Type	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated AC	Frequency - Operating	Applications	Configuration	Inductance	Current
TE Connectivity AMP Connectors RS614-1-02	1 kHz 120 µH	1 A	UR VDE	2	0.984 in	25 mm	200 mOhm	250 V	Signal Line	Through Hole	Vertical 4 PC Pin	125 °C	-40 C	0.61 in	0.906 in	15.5 mm	23 mm

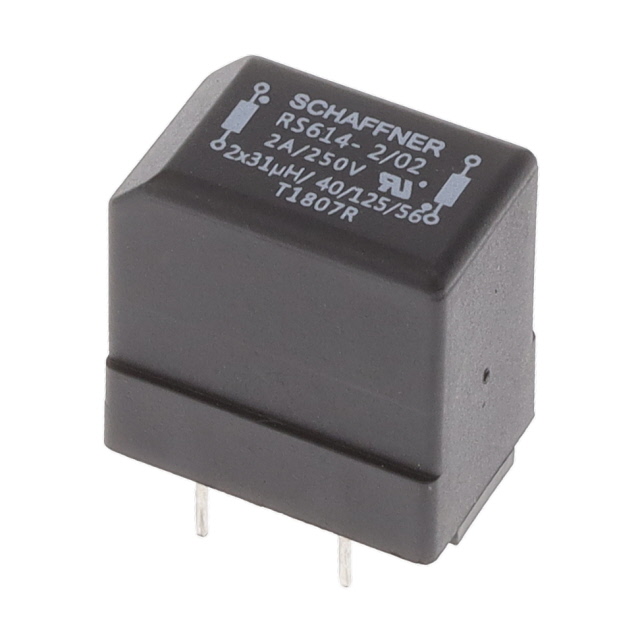

TE Connectivity AMP Connectors RS614-2-02									Single Phase	Through Hole		125 °C	-40 C					250 V	DC ~ 400Hz	General Purpose	Single Stage	120 µH	2 A
TE Connectivity AMP Connectors RS614-1-02	1 kHz 120 µH	1 A	UR VDE	2	0.984 in	25 mm	200 mOhm	250 V	Signal Line	Through Hole	Vertical 4 PC Pin	125 °C	-40 C	0.61 in	0.906 in	15.5 mm	23 mm
TE Connectivity AMP Connectors RS614-0.5-02	1 kHz 480 µH	500 mA	UR VDE	2	0.984 in	25 mm	800 mOhm	250 V	Signal Line	Through Hole	Vertical 4 PC Pin	125 °C	-40 C	0.61 in	0.906 in	15.5 mm	23 mm
TE Connectivity AMP Connectors RS614-0.5-02	1 kHz 480 µH	500 mA	UR VDE	2	0.984 in	25 mm	800 mOhm	250 V	Signal Line	Through Hole	Vertical 4 PC Pin	125 °C	-40 C	0.61 in	0.906 in	15.5 mm	23 mm
TE Connectivity AMP Connectors RS614-2-02									Single Phase	Through Hole		125 °C	-40 C					250 V	DC ~ 400Hz	General Purpose	Single Stage	120 µH	2 A
