PRPN302 Series

Catalog

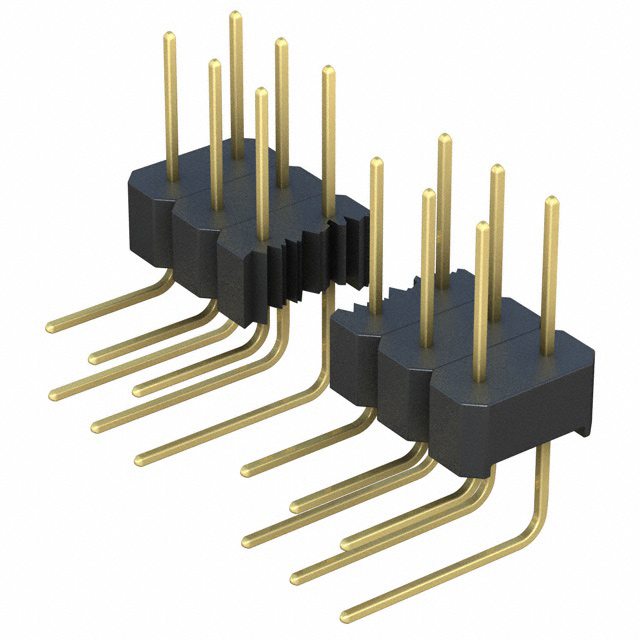

CONN HEADER R/A 60POS 2MM

Part	Insulation Color	Contact Length - Post [custom]	Contact Length - Post	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Type	Insulation Material	Contact Length - Mating	Contact Length - Mating	Shrouding	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Termination	Mounting Type	Contact Finish - Post	Contact Finish Thickness - Mating	Number of Positions	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Connector Type	Contact Shape	Contact Material	Fastening Type	Style	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions PRPN302PARN	Black	0.11 in	2.79 mm	All	Flash	Male Pin	Polyester	4 mm	0.157 in	Unshrouded	UL94 V-0	2 mm	0.079 in	Solder	Right Angle Through Hole	Gold	Flash	60	2	-40 C	105 ░C	Gold	0.079 "	2 mm	4 mm	0.157 in	Header	Square	Brass	Push-Pull	Board to Board Cable
Sullins Connector Solutions PRPN302PAEN	Black	0.11 in	2.79 mm	All	Flash	Male Pin	Polyester	4 mm	0.157 in	Unshrouded	UL94 V-0	2 mm	0.079 in	Solder	Through Hole	Gold	Flash	60	2	-40 C	105 ░C	Gold	0.079 "	2 mm	2 mm	0.079 in	Header	Square	Brass	Push-Pull	Board to Board Cable	8.8 mm	0.346 in
