725I-20 Series

Catalog

SIZE 25 ENCODER 3/8" DIA. SHAFT

Part	Mounting Type	Encoder Type	Pulses per Revolution	Actuator Type	Rotational Life (Cycles Min)	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Output Type	Orientation

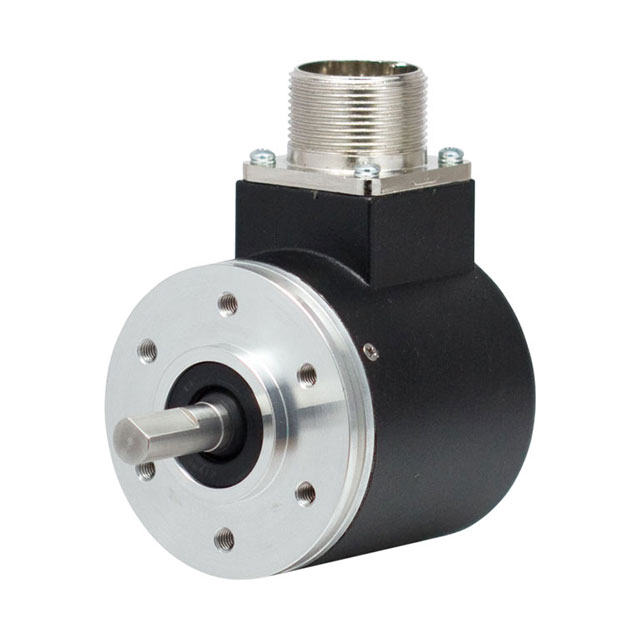

Encoder Products Company 725I-20-S-0060-R-HV-1-S-1-SX-N-N	Servo Mount	Incremental	60	Shaft	1.5B	28 V	4.75 V	PC Pin	Quadrature Line Driver with Index (Incremental)	User Selectable

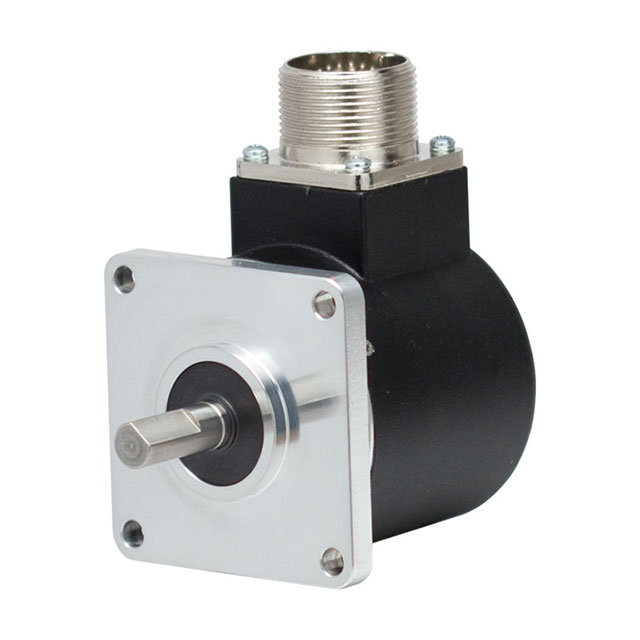

Encoder Products Company 725I-20-S-2048-R-OC-1-F-1-SY-N-N	Flange Mount	Incremental	2048	Shaft	1.5B	28 V	4.75 V	PC Pin	Open Collector	User Selectable
Encoder Products Company 725I-20-S-0120-R-HV-1-F-1-SX-N-N	Flange Mount	Incremental	120	Shaft	1.5B	28 V	4.75 V	PC Pin	Quadrature Line Driver with Index (Incremental)	User Selectable
Encoder Products Company 725I-20-S-0200-R-OC-1-F-1-SY-N-N	Flange Mount	Incremental	200	Shaft	1.5B	28 V	4.75 V	PC Pin	Open Collector	User Selectable
Encoder Products Company 725I-20-S-5000-R-HV-1-S-1-SX-N-N	Servo Mount	Incremental	5000	Shaft	1.5B	28 V	4.75 V	PC Pin	Quadrature Line Driver with Index (Incremental)	User Selectable
Encoder Products Company 725I-20-S-1024-R-OC-1-F-1-SY-N-N	Flange Mount	Incremental	1024	Shaft	1.5B	28 V	4.75 V	PC Pin	Open Collector	User Selectable
Encoder Products Company 725I-20-S-5000-R-OC-1-S-1-SY-N-N	Servo Mount	Incremental	5000	Shaft	1.5B	28 V	4.75 V	PC Pin	Open Collector	User Selectable
Encoder Products Company 725I-20-S-2500-R-HV-1-S-1-SX-N-N	Servo Mount	Incremental	2500	Shaft	1.5B	28 V	4.75 V	PC Pin	Quadrature Line Driver with Index (Incremental)	User Selectable
Encoder Products Company 725I-20-S-1024-R-OC-1-S-1-SY-N-N	Servo Mount	Incremental	1024	Shaft	1.5B	28 V	4.75 V	PC Pin	Open Collector	User Selectable
Encoder Products Company 725I-20-S-2500-R-OC-1-F-1-SY-N-N	Flange Mount	Incremental	2500	Shaft	1.5B	28 V	4.75 V	PC Pin	Open Collector	User Selectable
