7222-1501 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

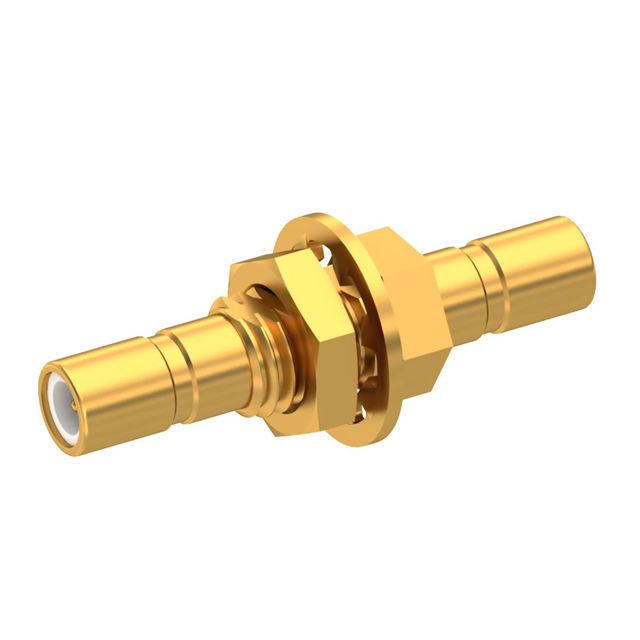

COAX ADAPT SSMB TO SSMB
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mating Cycles | Center Contact Material | Body Material | Adapter Type | Impedance | Mounting Type | Mounting Feature | Center Gender | Style | Convert From (Adapter End) | Fastening Type | Fastening Type | Frequency - Max [Max] | Center Contact Plating | Conversion Type | Convert To (Adapter End) | Adapter Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Phosphor Bronze | Brass | Jack to Jack | 50 Ohms | Panel Mount | Bulkhead | Male to Male | Straight | SSMB Jack Male Pin | Snap-On | Snap-On | 12.4 GHz | Gold | Same Series | SSMB Jack Male Pin | SSMB to SSMB |
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Beryllium Copper | Brass | Jack to Jack | 50 Ohms | Panel Mount | Bulkhead | Male to Male | Straight | SSMB Jack Male Pin | Snap-On | Snap-On | 12.4 GHz | Gold | Same Series | SSMB Jack Male Pin | SSMB to SSMB |
