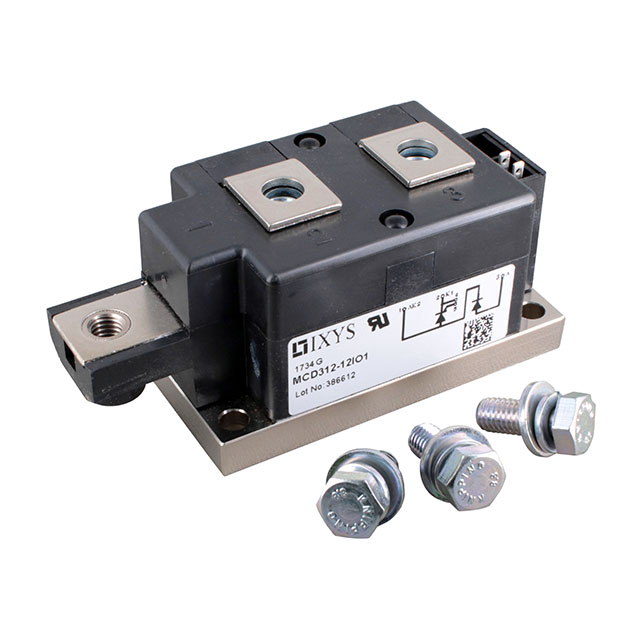

Bipolar Module - Thyristor/Diode Y1-CU
Description
AI
The Thyristor-Diode Modules Portfolio offers various packages and breakdown voltages up to 2200V.
Beta
⌘K
Bipolar Module - Thyristor/Diode Y1-CU
Bipolar Module - Thyristor/Diode Y1-CU
| Part | Current - On State (It (RMS)) (Max) [Max] | Voltage - Off State | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - On State (It (AV)) (Max) [Max] | Structure | Operating Temperature [Min] | Operating Temperature [Max] | Number of SCRs, Diodes | Current - Gate Trigger (Igt) (Max) [Max] | Mounting Type | Package / Case | Voltage - Gate Trigger (Vgt) (Max) [Max] [custom] | Current - Hold (Ih) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 520 A | 1.4 kV | 9200 A 10100 A | 320 A | Series Connection - SCR/Diode | -40 °C | 140 °C | 1 Diode | 150 mA | Chassis Mount | Y1-CU | 2 V | 150 mA |
 LITTELFUSE | 520 A | 1.8 kV | 9200 A 10100 A | 320 A | Series Connection - SCR/Diode | -40 °C | 140 °C | 1 Diode | 150 mA | Chassis Mount | Y1-CU | 2 V | 150 mA |
 LITTELFUSE | 520 A | 1.2 kV | 9200 A 10100 A | 320 A | Series Connection - SCR/Diode | -40 °C | 140 °C | 1 Diode | 150 mA | Chassis Mount | Y1-CU | 2 V | 150 mA |
