TFLD Series
Manufacturer: OptiFuse
Beta
⌘K
FUSE AUTO 100A 32VAC 32VDC
| Part | Color | Breaking Capacity @ Rated Voltage | Response Time | Voltage Rating - AC | Approval Agency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Voltage Rating - DC | Package / Case | Fuse Type | Current Rating (Amps) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

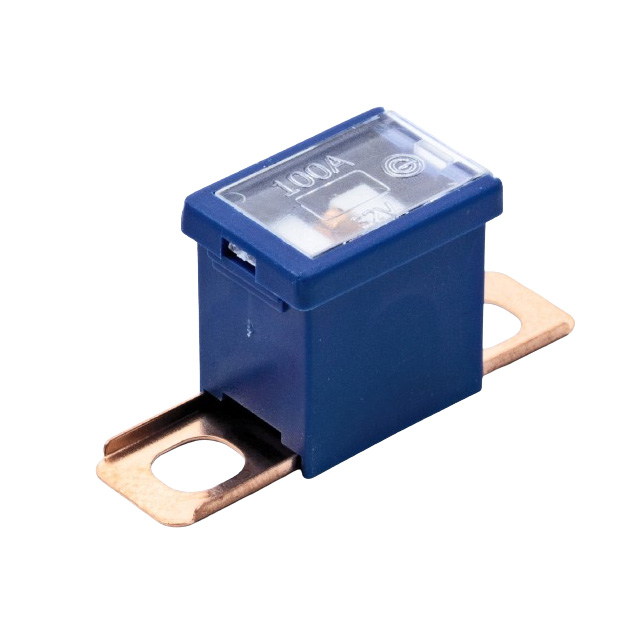

 OptiFuse | Blue | 1 kA | Fast Blow | 32 V | ISO SAE | 22.8 mm | 0.846 " | 0.898 " | 21.5 mm | 16.2 mm | 0.638 " | 32 V | Auto Link | Automotive | 100 A | Bolt Mount |

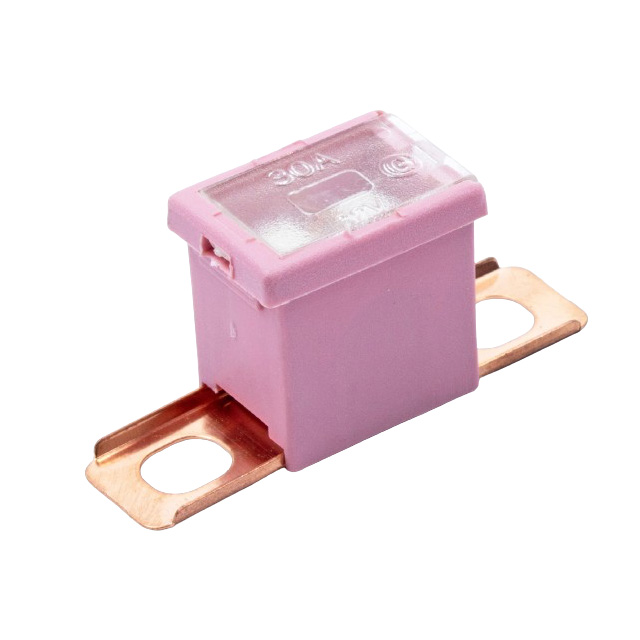

 OptiFuse | Pink | 1 kA | Fast Blow | 32 V | ISO SAE | 22.8 mm | 0.846 " | 0.898 " | 21.5 mm | 16.2 mm | 0.638 " | 32 V | Auto Link | Automotive | 30 A | Bolt Mount |

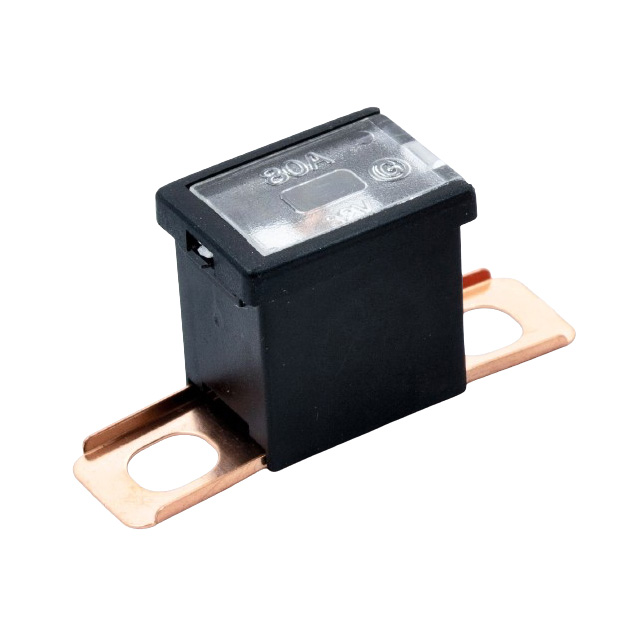

 OptiFuse | Black | 1 kA | Fast Blow | 32 V | ISO SAE | 22.8 mm | 0.846 " | 0.898 " | 21.5 mm | 16.2 mm | 0.638 " | 32 V | Auto Link | Automotive | 80 A | Bolt Mount |

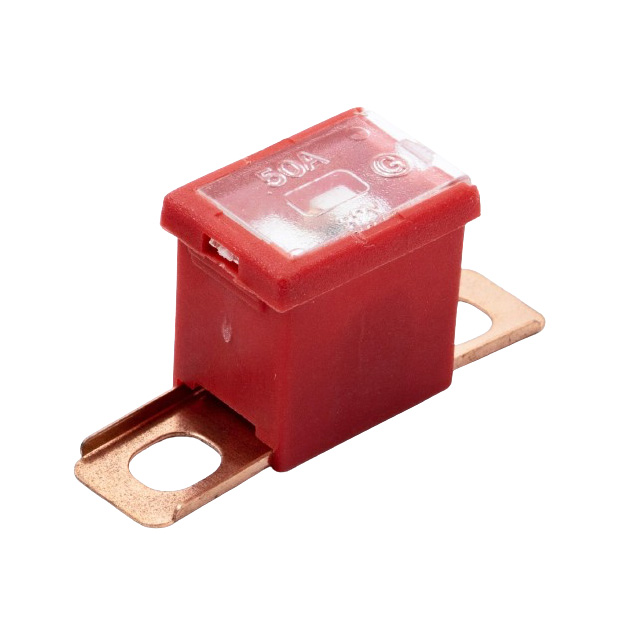

 OptiFuse | Red | 1 kA | Fast Blow | 32 V | ISO SAE | 22.8 mm | 0.846 " | 0.898 " | 21.5 mm | 16.2 mm | 0.638 " | 32 V | Auto Link | Automotive | 50 A | Bolt Mount |

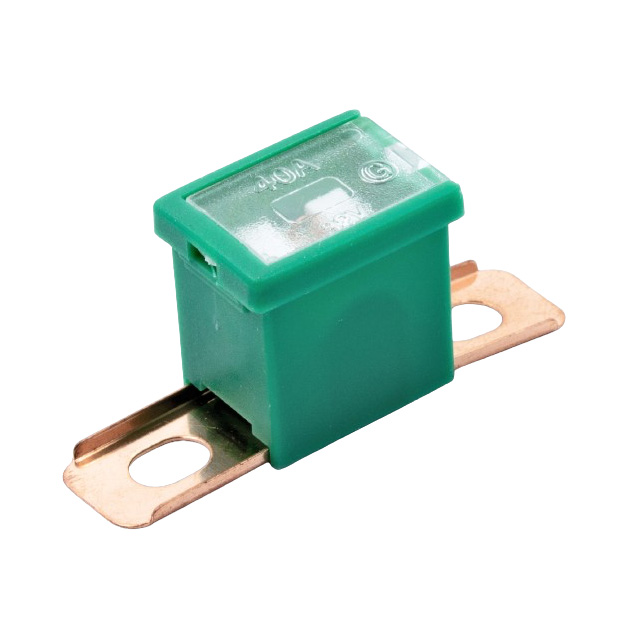

 OptiFuse | Green | 1 kA | Fast Blow | 32 V | ISO SAE | 22.8 mm | 0.846 " | 0.898 " | 21.5 mm | 16.2 mm | 0.638 " | 32 V | Auto Link | Automotive | 40 A | Bolt Mount |
