SC56-21 Series

Catalog

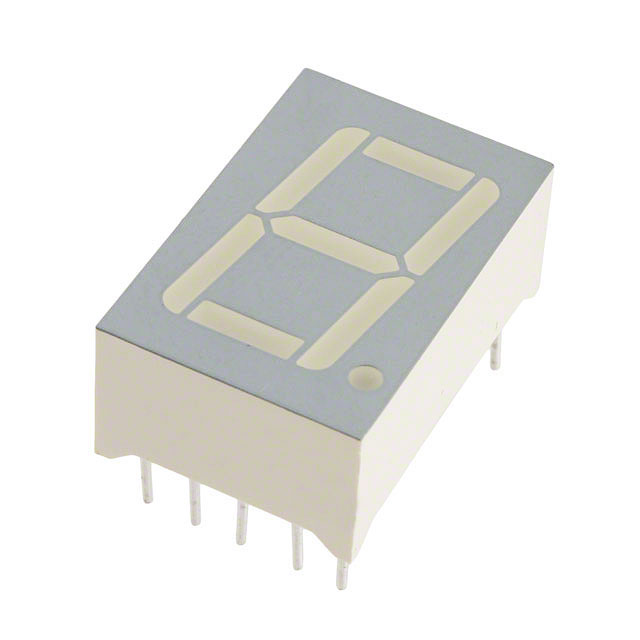

DISPLAY 7SEG 0.56" SGL YLW 10DIP

Part	Number of Characters	Common Pin	Package / Case	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Test	Voltage - Forward (Vf) (Typ)	Display Type	Color	Wavelength - Peak	Power Dissipation (Max) [Max]	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating
Kingbright SC56-21SYKWA	1	Common Cathode	0.6 in 15.24 mm	10-DIP	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	20 mA	2 V	7-Segment	Yellow	590 nm	75 mw	0.56 in	14.22 mm	160 mcd
Kingbright SC56-21GWA	1	Common Cathode	0.6 in 15.24 mm	10-DIP	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	20 mA	2.2 V	7-Segment	Green	565 nm	62.5 mW	0.56 in	14.22 mm	11 mcd
Kingbright SC56-21CGKWA	1	Common Cathode	0.6 in 15.24 mm	10-DIP	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	20 mA	2.1 V	7-Segment	Green		75 mw	0.56 in	14.22 mm	35 mcd
Kingbright SC56-21SURKWA	1	Common Cathode	0.6 in 15.24 mm	10-DIP	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	20 mA	1.95 V	7-Segment	Red	645 nm	75 mw	0.56 in	14.22 mm	97 mcd
Kingbright SC56-21SRWA	1	Common Cathode	0.6 in 15.24 mm	10-DIP	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	20 mA	1.85 V	7-Segment	Red	660 nm	75 mw	0.56 in	14.22 mm	34 mcd
Kingbright SC56-21EWA	1	Common Cathode	0.6 in 15.24 mm	10-DIP	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	20 mA	2 V	7-Segment	Red	627 nm	75 mw	0.56 in	14.22 mm
