EV14 Series

Catalog

STRONGHOLD LOCKING FORK TERMINAL

Part	Material - Insulation	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Color	Contact Material	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation	Stud/Tab Size	Mounting Type	Contact Finish	Features	Terminal Type	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Width - Outer Edges	Width - Outer Edges	Pin Diameter [diameter]	Pin Diameter [diameter]	Length - Pin [x]	Length - Pin [x]	Tongue Inside Opening	Tongue Inside Opening	Width - Outer Edges [x]

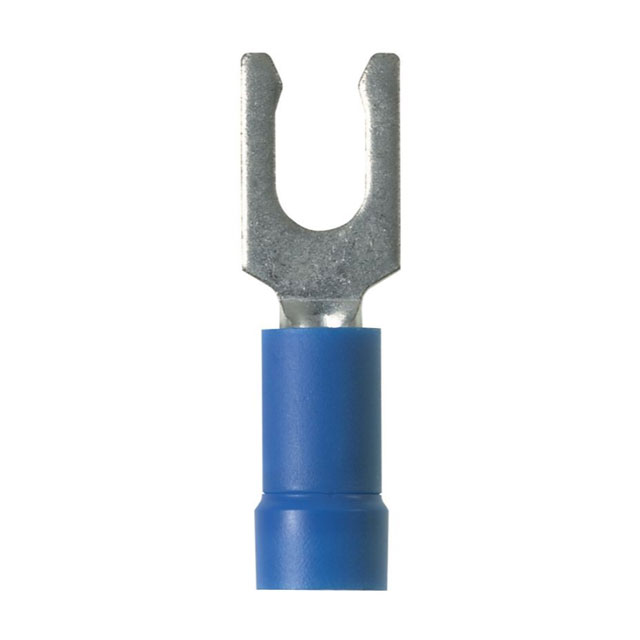

Panduit Corp EV14-8LFB-L	Vinyl	4.06 mm	0.16 in	Blue	Copper	7.37 mm	0.29 in	Insulated	8 Stud	Free Hanging (In-Line)	Tin	Butted Seam Serrated Termination	Snap Spring	Crimp	14 AWG	16 AWG	0.97 in	24.64 mm

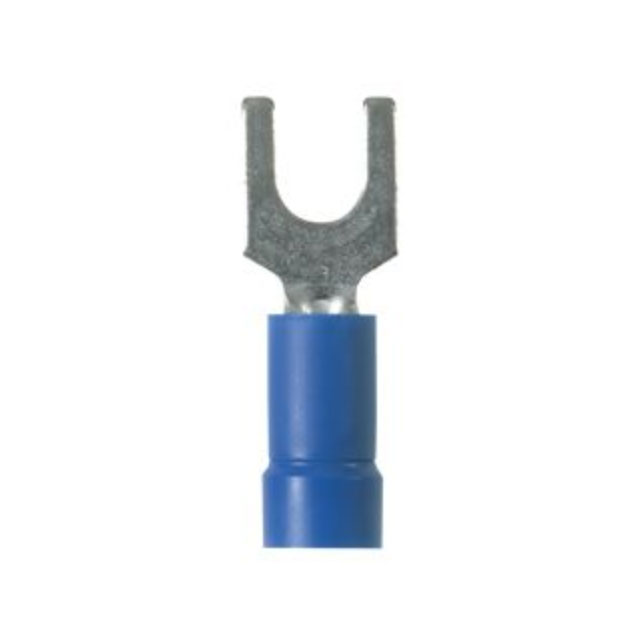

Panduit Corp EV14-10FB-L	Vinyl	5.08 mm	0.2 in	Blue	Copper			Insulated	10 Stud	Free Hanging (In-Line)	Tin	Butted Seam	Standard	Crimp	14 AWG	16 AWG	0.92 in	23.37 mm	0.34 in	8.64 mm

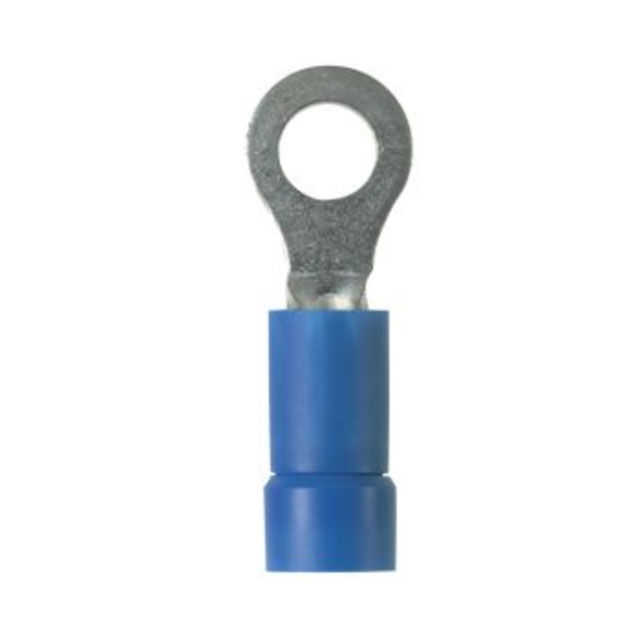

Panduit Corp EV14-14RB-L	Vinyl			Blue	Copper	11.68 mm	0.46 in	Insulated	0.25 Stud	Free Hanging (In-Line)	Tin	Butted Seam	Circular	Crimp	14 AWG	16 AWG	1.12 in	28.45 mm			0.81 mm	0.032 in
Panduit Corp EV14-10RB-Q	Vinyl			Blue	Copper			Insulated	10 Stud	Free Hanging (In-Line)	Tin	Butted Seam	Circular	Crimp	14 AWG	16 AWG	0.92 in	23.37 mm			0.81 mm	0.032 in	7.87 mm	0.31 in

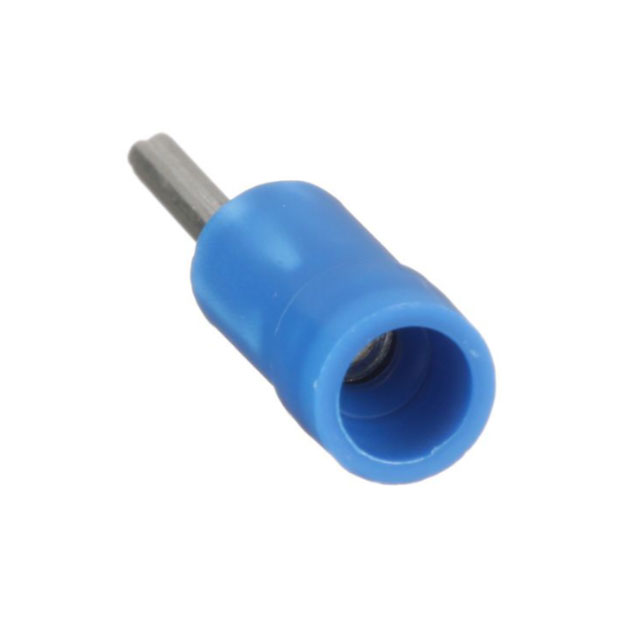

Panduit Corp EV14-P47B-L	Vinyl			Blue	Copper			Insulated			Tin	Brazed Seam		Crimp	14 AWG	16 AWG	0.97 in	24.64 mm							0.07 in	1.78 mm	0.49 in	12.45 mm
Panduit Corp EV14-6FB-L	Vinyl			Blue	Copper	7.11 mm		Insulated	6 Stud	Free Hanging (In-Line)	Tin	Butted Seam	Standard	Crimp	14 AWG	16 AWG	0.84 in	21.34 mm											3.81 mm	0.15 in	0.28 in
Panduit Corp EV14-P47B-Q	Vinyl			Blue	Copper			Insulated			Tin	Brazed Seam		Crimp	14 AWG	16 AWG	0.97 in	24.64 mm							0.07 in	1.78 mm	0.49 in	12.45 mm
Panduit Corp EV14-10LFB-Q	Vinyl	4.83 mm	0.19 in	Blue	Copper	8.38 mm	0.33 in	Insulated	10 Stud	Free Hanging (In-Line)	Tin	Butted Seam Serrated Termination	Snap Spring	Crimp	14 AWG	16 AWG	0.97 in	24.64 mm
Panduit Corp EV14-6LFB-L	Vinyl		0.14 in	Blue	Copper	6.35 mm	0.25 "	Insulated	6 Stud	Free Hanging (In-Line)	Tin	Butted Seam Serrated Termination	Snap Spring	Crimp	14 AWG	16 AWG	0.9 "	22.86 mm											3.56 mm
Panduit Corp EV14-56RB-L	Vinyl			Blue	Copper	11.68 mm	0.46 in	Insulated	0.3125 Stud	Free Hanging (In-Line)	Tin	Butted Seam	Circular	Crimp	14 AWG	16 AWG	1.12 in	28.45 mm			0.81 mm	0.032 in
