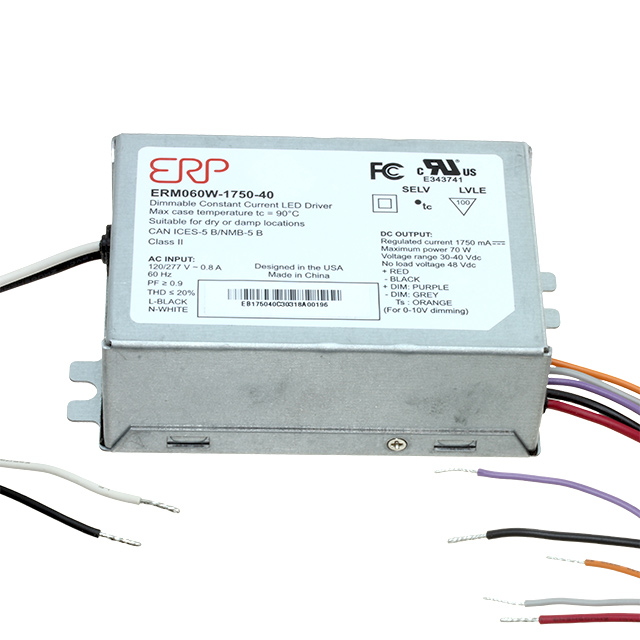

ERM060W Series

Catalog

LED DRIVER CC AC/DC 32-42V 1.4A

Part	Mounting Type	Weight	Weight	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Termination Style	Ratings	Efficiency	Topology	Features	Dimming	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Number of Outputs	Type	Voltage - Output [Max]	Voltage - Output [Min]	Power (Watts)	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]
ERP Power, LLC ERM060W-1400-42	Chassis Mount	280 g	0.617 lb	56.1 mm	32.5 mm	81.5 mm	2.21 in	3.21 "	1.28 "	277 VAC	Wire Leads	IP64	90 %	AC DC Converter	OCP OTP SCP	Analog	-30 ░C	90 °C	CB CE cRUcs cUL FC UL	1	Constant Current	42 V	32 V	59 W	1.4 A	120 VAC
ERP Power, LLC ERM060W-0700-82	Chassis Mount	280 g	0.617 lb	56.1 mm	32.5 mm	81.5 mm	2.21 in	3.21 "	1.28 "	277 VAC	Wire Leads	IP64	90 %	AC DC Converter	OCP OTP SCP	Analog	-30 ░C	90 °C	CB CE cRUcs cUL FC UL	1	Constant Current	82 V	62 V	57 W	700 mA	120 VAC
ERP Power, LLC ERM060W-1750-40	Chassis Mount	280 g	0.617 lb	56.1 mm	32.5 mm	81.5 mm	2.21 in	3.21 "	1.28 "	277 VAC	Wire Leads	IP64	90 %	AC DC Converter	OCP OTP SCP	Analog	-30 ░C	90 °C	CB CE cRUcs cUL FC UL	1	Constant Current	40 V	30 V	70 W	1.75 A	120 VAC
ERP Power, LLC ERM060W-1600-42	Chassis Mount	280 g	0.617 lb	56.1 mm	32.5 mm	81.5 mm	2.21 in	3.21 "	1.28 "	277 VAC	Wire Leads	IP64	90 %	AC DC Converter	OCP OTP SCP	Analog	-30 ░C	90 °C	CB CE cRUcs cUL FC UL	1	Constant Current	42 V	32 V	67 W	1.6 A	120 VAC
ERP Power, LLC ERM060W-2100-28	Chassis Mount	280 g	0.617 lb	56.1 mm	32.5 mm	81.5 mm	2.21 in	3.21 "	1.28 "	277 VAC	Wire Leads	IP64	90 %	AC DC Converter	OCP OTP SCP	Analog	-30 ░C	90 °C	CB CE cRUcs cUL FC UL	1	Constant Current			59 W	2.1 A	120 VAC
