HPCP42 Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

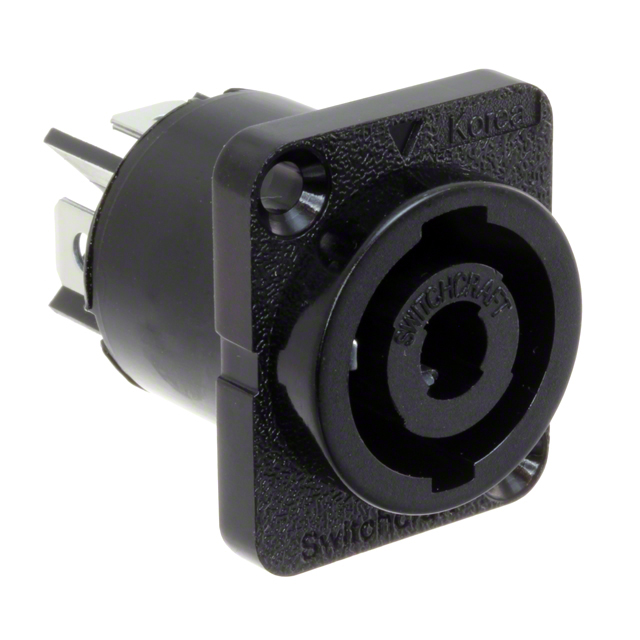

CONN CIRC RCPT 4POS SILVER SLDR
| Part | Number of Positions | Material Flammability Rating | Insert Material | Ingress Protection | Contact Finish - Mating | Connector Type | Mounting Type | Orientation | Contact Material | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Mounting Feature | Shielding | Current Rating (Amps) | Color | Applications | Termination | Termination | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. | 4 | UL94 V-0 | Thermoplastic | IP25 | Silver | Receptacle Non-Gendered | Panel Mount Right Angle Through Hole | Keyed | Copper Alloy | Plastic | 85 °C | -55 °C | Latch Lock Push-Pull | Flange | Unshielded | 30 A | Black | Audio Industrial Medical | Solder | ||
 Switchcraft Inc. | 4 | UL94 V-0 | Thermoplastic | IP25 | Silver | Receptacle Non-Gendered | Keyed | Copper Alloy | Plastic | 85 °C | -55 °C | Latch Lock Push-Pull | Flange | Unshielded | 50 A | Black | Audio Industrial Medical | Quick Connect | 0.25 in | 6.3 mm | |
Switchcraft Inc. | 4 | UL94 V-0 | Thermoplastic | IP25 | Silver | Receptacle Non-Gendered | Panel Mount Through Hole | Keyed | Copper Alloy | Plastic | 85 °C | -55 °C | Latch Lock Push-Pull | Flange | Unshielded | 30 A | Black | Audio Industrial Medical | Solder |
