74LVC2G04 Series

Catalog

IC INVERTER 2CH 2-INP 6TSSOP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Max) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Number of Circuits	Logic Type	Current - Output High, Low [y]	Current - Output High, Low [x]	Supplier Device Package	Number of Inputs	Max Propagation Delay @ V, Max CL	Mounting Type	Supplier Device Package [y]	Supplier Device Package [x]
Freescale Semiconductor - NXP 74LVC2G04GW,125	125 °C	-40 °C	4 µA	5.5 V	1.65 V	6-TSSOP SC-88 SOT-363	0.8 V	0.7 V	1.7 V	2 V	2	Inverter	32 mA	32 mA	6-TSSOP	2	3.2 ns	Surface Mount

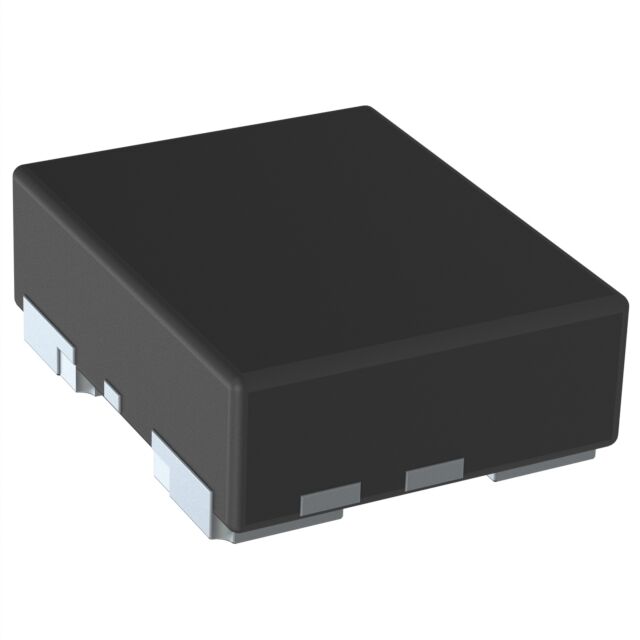

Freescale Semiconductor - NXP 74LVC2G04GF,132	125 °C	-40 °C	4 µA	5.5 V	1.65 V	6-XFDFN	0.8 V	0.7 V	1.7 V	2 V	2	Inverter	32 mA	32 mA	6-XSON SOT891 (1x1)	2	3.2 ns	Surface Mount
Freescale Semiconductor - NXP 74LVC2G04GM,115	125 °C	-40 °C	4 µA	5.5 V	1.65 V	6-XFDFN	0.8 V	0.7 V	1.7 V	2 V	2	Inverter	32 mA	32 mA	6-XSON SOT886 (1.45x1)	2	3.2 ns	Surface Mount
Freescale Semiconductor - NXP 74LVC2G04GXZ	125 °C	-40 °C	4 µA	5.5 V	1.65 V	6-XFDFN	0.8 V	0.7 V	1.7 V	2 V	2	Inverter	32 mA	32 mA	6-X2SON	2	3.8 ns	Surface Mount	0.8	1
Freescale Semiconductor - NXP 74LVC2G04GV,125	125 °C	-40 °C	4 µA	5.5 V	1.65 V	SC-74 SOT-457	0.8 V	0.7 V	1.7 V	2 V	2	Inverter	32 mA	32 mA	6-TSOP	2	3.2 ns	Surface Mount
