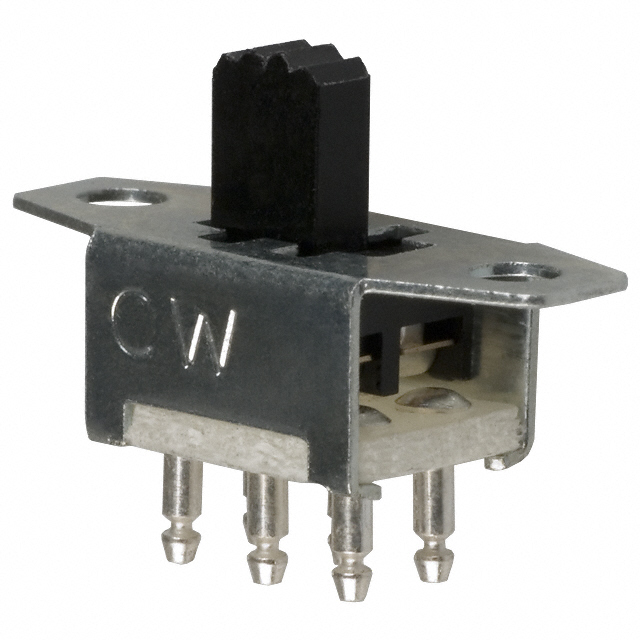

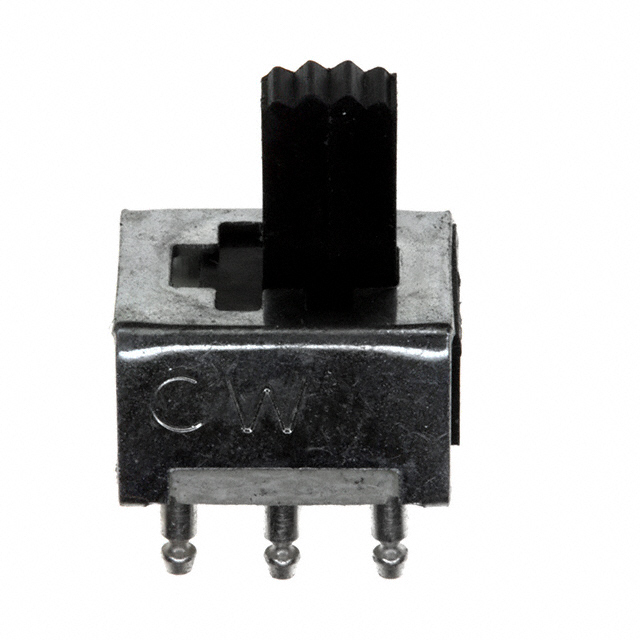

GS-113 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH SLIDE DPDT 500MA 125V
| Part | Mechanical Life | Switch Travel | Actuator Material | Contact Material | Termination Style | Actuator Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Voltage Rating - DC | Mounting Type | Current Rating (Amps) | Contact Finish | Actuator Type | Circuit | Contact Timing | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 10000 Steps | 2.67 mm | Nylon 6/6 Polyamide (PA66) | Copper Alloy | PC Pin | 3.18 mm | -10 °C | 104 °C | 125 V | 125 VDC | Through Hole | 500 mA | Silver | Standard | DPDT | Not Specified | On-On |
 CW Industries | 10000 Steps | 2.67 mm | Nylon 6/6 Polyamide (PA66) | Copper Alloy | PC Pin | 4.75 mm | -10 °C | 104 °C | 125 V | 125 VDC | Through Hole | 500 mA | Silver | Standard | DPDT | Not Specified | On-On |
 CW Industries | PC Pin | Through Hole | Standard | DPDT | On-On | ||||||||||||
 CW Industries | 10000 Steps | 2.67 mm | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Press-Fit | 4.75 mm | -10 °C | 104 °C | 125 V | 125 VDC | Panel Mount | 500 mA | Silver | Standard | DPDT | Not Specified | On-On |
