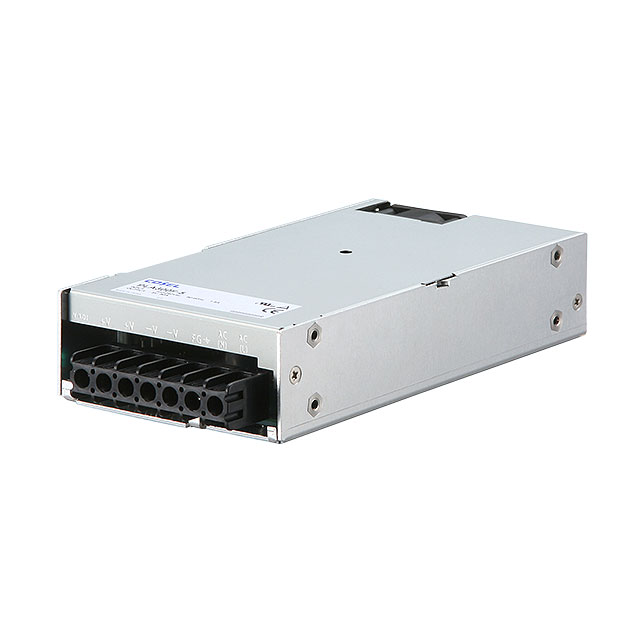

PLA300F Series

Catalog

AC/DC CONVERTER 36V

Part	Current - Output 1	Voltage - Output 1 [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Applications	Number of Outputs	Voltage - Isolation	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Type	Mounting Type	Voltage - Output 1
Cosel USA, Inc. PLA300F-36-U	8.4 A	36 V	-20 ░C	70 °C	CE cURus TUV	ITE (Commercial)	1	3000 V	87 %	40.9 mm	7.48 in	102.1 mm	4.02 in	1.61 "	190 mm	Enclosed	Chassis Mount
Cosel USA, Inc. PLA300F-48-U	6.3 A		-20 ░C	70 °C	CE cURus TUV	ITE (Commercial)	1	3000 V	87 %	40.9 mm	7.48 in	102.1 mm	4.02 in	1.61 "	190 mm	Enclosed	Chassis Mount	48 V
Cosel USA, Inc. PLA300F-48-G	6.3 A		-20 ░C	70 °C	CE cURus TUV	ITE (Commercial)	1	3000 V	87 %	40.9 mm	7.48 in	102.1 mm	4.02 in	1.61 "	190 mm	Enclosed	Chassis Mount	48 V
Cosel USA, Inc. PLA300F-12-G	25 A		-20 ░C	70 °C	CE cURus TUV	ITE (Commercial)	1	3000 V	81 %	40.9 mm	7.48 in	102.1 mm	4.02 in	1.61 "	190 mm	Enclosed	Chassis Mount	12 V
Cosel USA, Inc. PLA300F-36-G	8.4 A	36 V	-20 ░C	70 °C	CE cURus TUV	ITE (Commercial)	1	3000 V	87 %	40.9 mm	7.48 in	102.1 mm	4.02 in	1.61 "	190 mm	Enclosed	Chassis Mount
Cosel USA, Inc. PLA300F-48-V	6.3 A		-20 ░C	70 °C	CE cURus TUV	ITE (Commercial)	1	3000 V	87 %	40.9 mm	7.48 in	102.1 mm	4.02 in	1.61 "	190 mm	Enclosed	Chassis Mount	48 V
Cosel USA, Inc. PLA300F-48-C	6.3 A		-20 ░C	70 °C	CE cURus TUV	ITE (Commercial)	1	3000 V	87 %	40.9 mm	7.48 in	102.1 mm	4.02 in	1.61 "	190 mm	Enclosed	Chassis Mount	48 V
Cosel USA, Inc. PLA300F-5-G	50 A		-20 ░C	70 °C	CE cURus TUV	ITE (Commercial)	1	3000 V	77 %	40.9 mm	7.48 in	102.1 mm	4.02 in	1.61 "	190 mm	Enclosed	Chassis Mount	5 V
Cosel USA, Inc. PLA300F-15-U	20 A		-20 ░C	70 °C	CE cURus TUV	ITE (Commercial)	1	3000 V	83 %	40.9 mm	7.48 in	102.1 mm	4.02 in	1.61 "	190 mm	Enclosed	Chassis Mount	15 V
Cosel USA, Inc. PLA300F-24-V	12.5 A		-20 ░C	70 °C	CE cURus TUV	ITE (Commercial)	1	3000 V	87 %	40.9 mm	7.48 in	102.1 mm	4.02 in	1.61 "	190 mm	Enclosed	Chassis Mount	24 V
