12052 Series

Catalog

CABLE GLAND 4-6MM PG7 POLYAMIDE

Part	Thread Size	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]	Type	Material	Ingress Protection	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Length	Thread Length	Color	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]

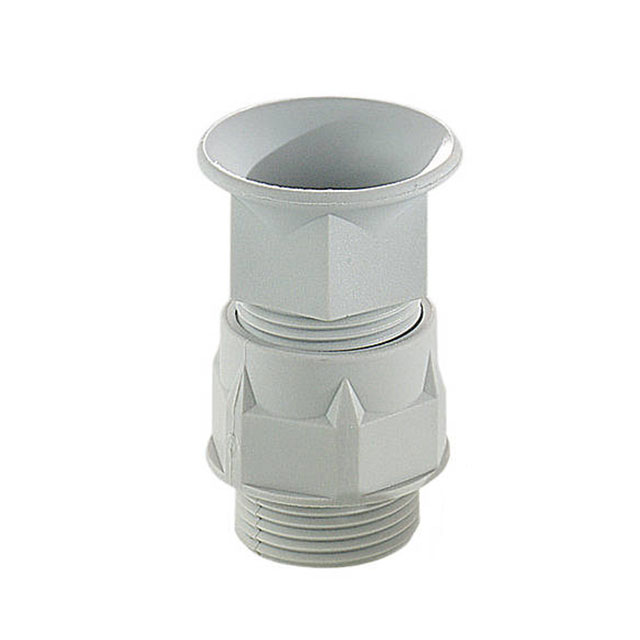

Bopla Enclosures 12052609	PG7	6 mm	0.236 in	Cable Gland	Polyamide (PA) Nylon	IP65 - Dust Tight Water Resistant	4 mm	0.157 in	0.315 "	8 mm	Gray	-20 ░C	100 °C

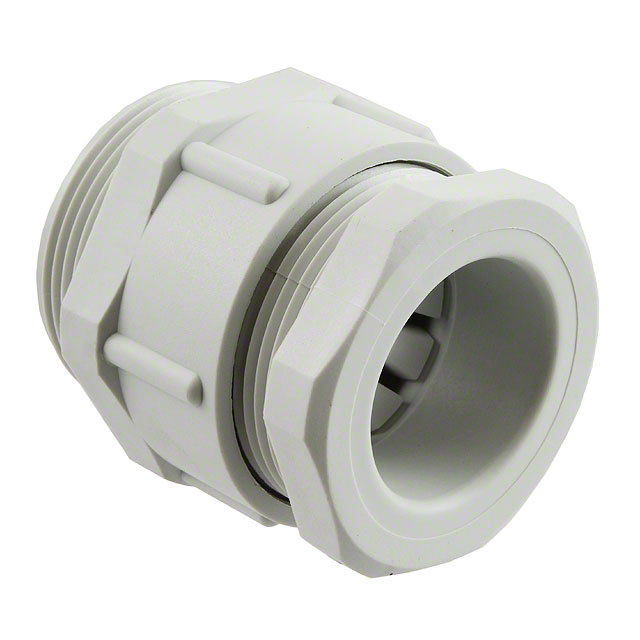

Bopla Enclosures 12052409	PG29		0.945 in	Cable Gland	Polyamide (PA) Nylon	IP65 - Dust Tight Water Resistant	18.01 mm	0.709 "	0.433 in	11 mm	Gray	-30 ░C	100 °C	24 mm

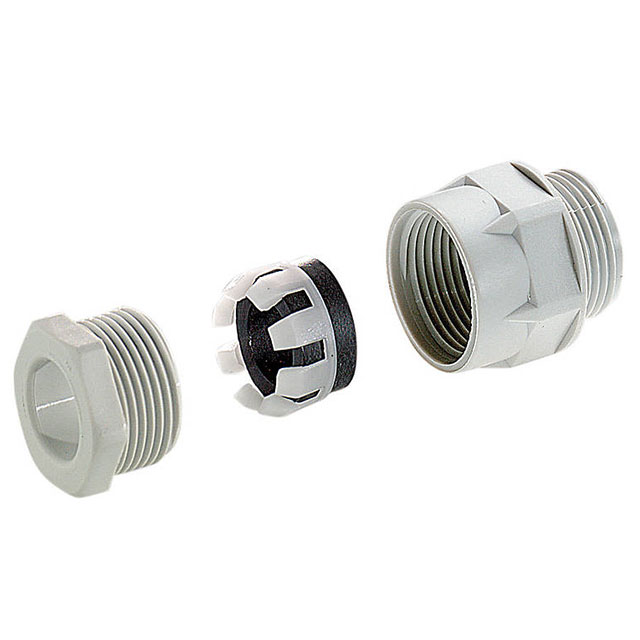

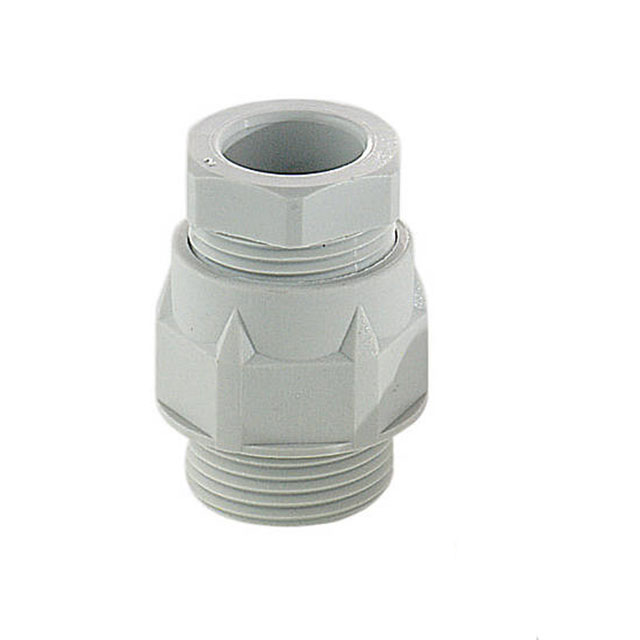

Bopla Enclosures 12052009	PG11			Cable Gland	Polyamide (PA) Nylon	IP65 - Dust Tight Water Resistant			0.315 "	8 mm	Gray	-30 ░C	100 °C		0.315 in	8 mm	10 mm	0.394 in
Bopla Enclosures 12052709	PG9			Cable Gland	Polyamide (PA) Nylon	IP65 - Dust Tight Water Resistant			0.315 "	8 mm	Gray	-20 ░C	100 °C				8 mm	0.315 in	6 mm	0.236 in

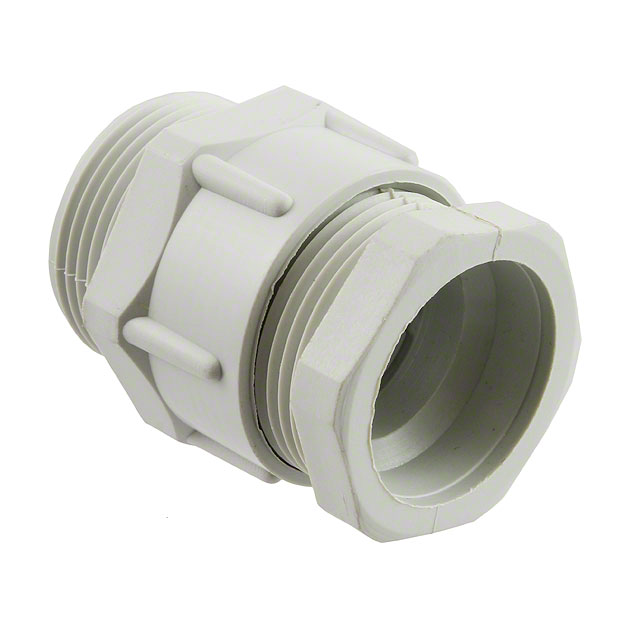

Bopla Enclosures 12052309	PG21			Cable Gland	Polyamide (PA) Nylon	IP65 - Dust Tight Water Resistant	14 mm	0.551 in	0.433 in	11 mm	Gray	-20 ░C	100 °C				18.01 mm	0.709 in

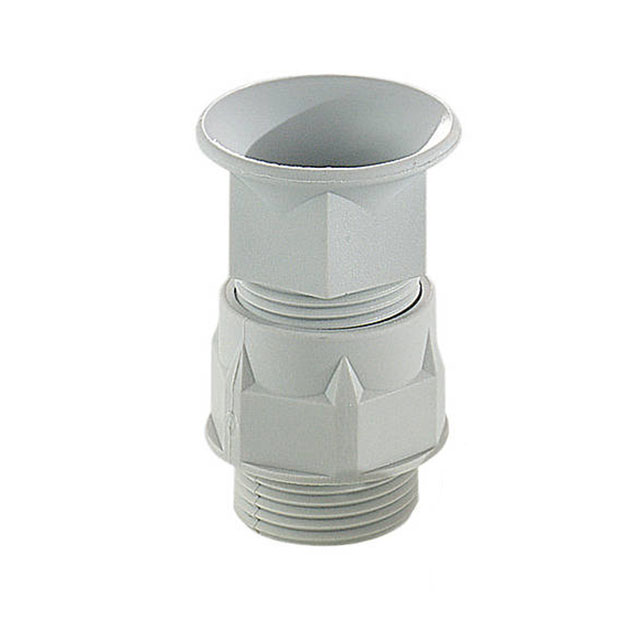

Bopla Enclosures 12052809	PG11			Cable Gland	Polyamide (PA) Nylon	IP65 - Dust Tight Water Resistant			0.315 "	8 mm	Gray	-30 ░C	100 °C		0.315 in	8 mm	10 mm	0.394 in
Bopla Enclosures 12052209	PG16	14 mm		Cable Gland	Polyamide (PA) Nylon	IP65 - Dust Tight Water Resistant	12 mm	0.472 in	0.394 in	10 mm	Gray	-20 ░C	100 °C					0.551 in

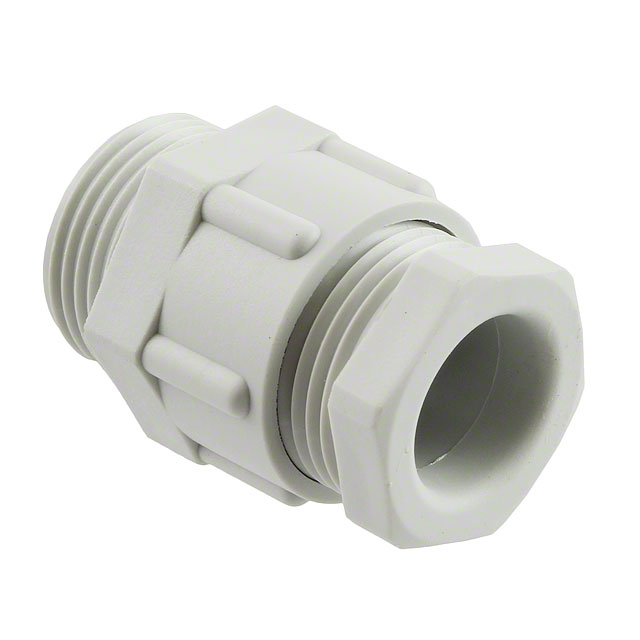

Bopla Enclosures 12052109	PG13			Cable Gland	Polyamide (PA) Nylon	IP65 - Dust Tight Water Resistant	10 mm	0.394 "	0.354 in	9 mm	Gray	-20 ░C	100 °C				12 mm	0.472 in

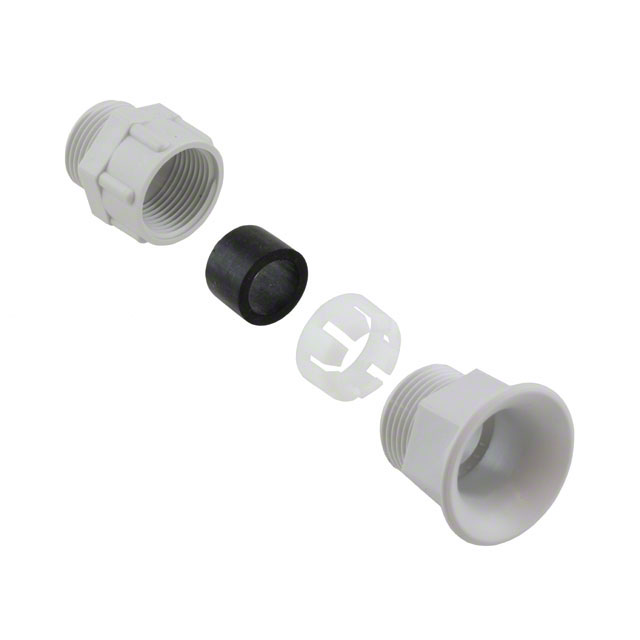

Bopla Enclosures 12052909	PG13			Cable Gland	Polyamide (PA) Nylon	IP65 - Dust Tight Water Resistant	10 mm	0.394 "	0.354 in	9 mm	Gray	-30 ░C	100 °C				12 mm	0.472 in
