001008 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 2POS 5.08MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Overall Contact Length	Overall Contact Length	Termination	Insulation Material	Shrouding	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Material	Style	Contact Shape	Mounting Type	Contact Type	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Color	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Overall Contact Length [x]	Overall Contact Length [x]

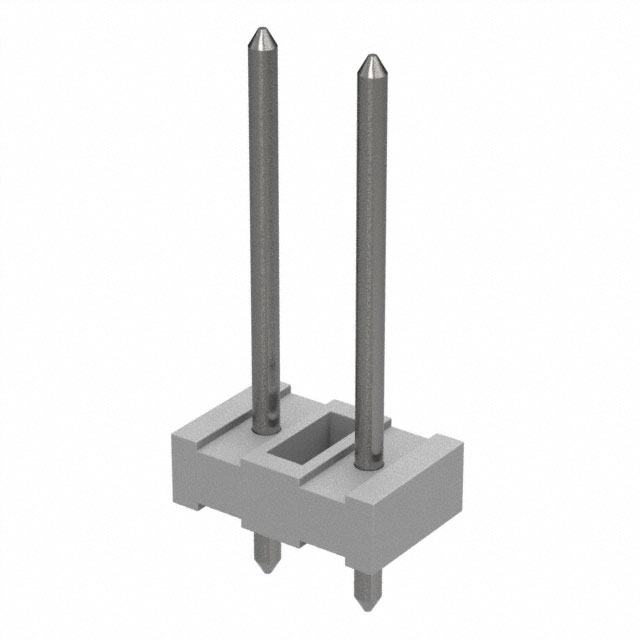

Molex 0010081022	General Purpose Industrial Telecommunications	2.54 µm	100 µin	All	1	100 çin	2.54 çm	Push-Pull	23.8 mm	0.937 in	Solder	Nylon Polyamide (PA)	Unshrouded	2	3.94 mm	0.155 "	Brass	Board to Board Cable	Circular	Through Hole	Male Pin	Header	0.2 "	5.08 mm	Tin	0.125 in	3.18 mm	UL94 V-2	Natural
Molex 0010081039	General Purpose Industrial Telecommunications	2.54 µm	100 µin	All	1	100 çin	2.54 çm	Push-Pull	20.32 mm	0.8 in	Solder	Nylon Polyamide (PA)	Unshrouded		3.63 mm	0.143 in	Brass	Board to Board Cable	Circular	Through Hole	Male Pin	Header	0.2 "	5.08 mm	Tin	0.125 in	3.18 mm	UL94 V-2	Natural	13.51 mm	0.532 in

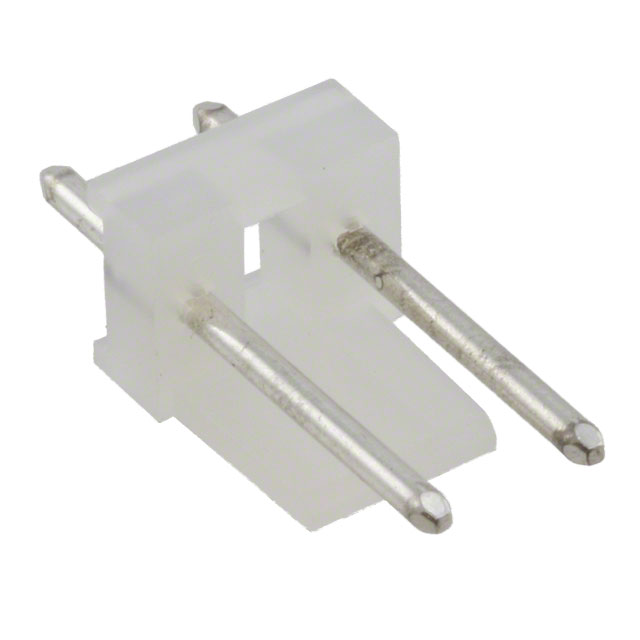

Molex 0010085021	General Purpose Industrial Telecommunications			All	1	100 çin	2.54 çm	Push-Pull			Solder	Nylon 6/6 Polyamide (PA66)	Shrouded - 1 Wall	2	4.45 mm	0.175 in	Brass	Board to Board Cable	Circular	Through Hole	Male Pin	Header	0.2 "	5.08 mm	Tin		9.53 mm	UL94 V-2	Natural	11.43 mm	0.45 in	0.375 in	19.05 mm	0.75 in

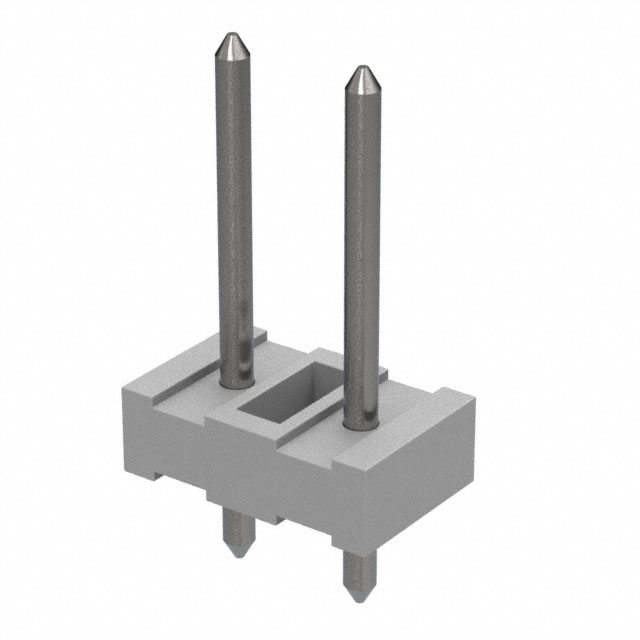

Molex 0010081021	General Purpose Industrial Telecommunications	2.54 µm	100 µin	All	1	100 çin	2.54 çm	Push-Pull			Solder	Nylon Polyamide (PA)	Unshrouded	2	3.94 mm	0.155 "	Brass	Board to Board Cable	Circular	Through Hole	Male Pin	Header	0.2 "	5.08 mm	Tin	0.125 in	3.18 mm	UL94 V-2	Natural	11.94 mm	0.47 in		19.05 mm	0.75 in

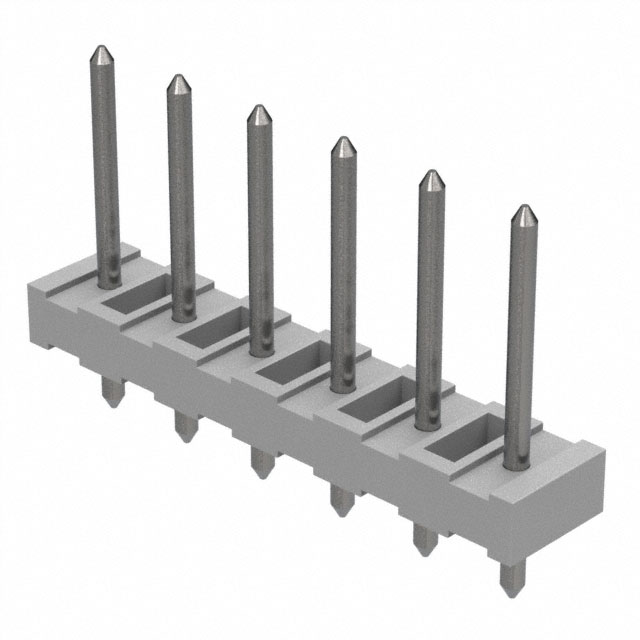

Molex 0010081061	General Purpose Industrial Telecommunications	2.54 µm	100 µin	All	1	100 çin	2.54 çm	Push-Pull			Solder	Nylon Polyamide (PA)	Unshrouded	6	3.94 mm	0.155 "	Brass	Board to Board Cable	Circular	Through Hole	Male Pin	Header	0.2 "	5.08 mm	Tin	0.125 in	3.18 mm	UL94 V-2	Natural	11.94 mm	0.47 in		19.05 mm	0.75 in
Molex 0010081049	General Purpose Industrial Telecommunications	2.54 µm	100 µin	All	1	100 çin	2.54 çm	Push-Pull	20.32 mm	0.8 in	Solder	Nylon Polyamide (PA)	Unshrouded	4	3.63 mm	0.143 in	Brass	Board to Board Cable	Circular	Through Hole	Male Pin	Header	0.2 "	5.08 mm	Tin	0.125 in	3.18 mm	UL94 V-2	Natural	13.51 mm	0.532 in

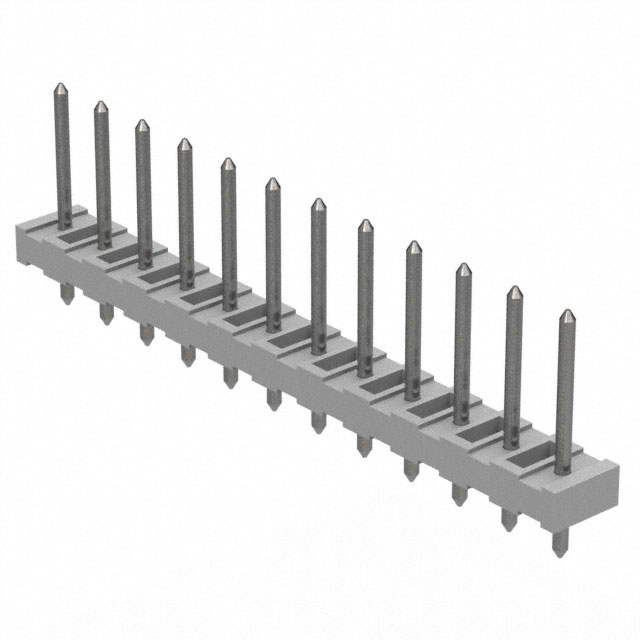

Molex 0010081121	General Purpose Industrial Telecommunications	2.54 µm	100 µin	All	1	100 çin	2.54 çm	Push-Pull			Solder	Nylon Polyamide (PA)	Unshrouded	12	3.94 mm	0.155 "	Brass	Board to Board Cable	Circular	Through Hole	Male Pin	Header	0.2 "	5.08 mm	Tin	0.125 in	3.18 mm	UL94 V-2	Natural	11.94 mm	0.47 in		19.05 mm	0.75 in

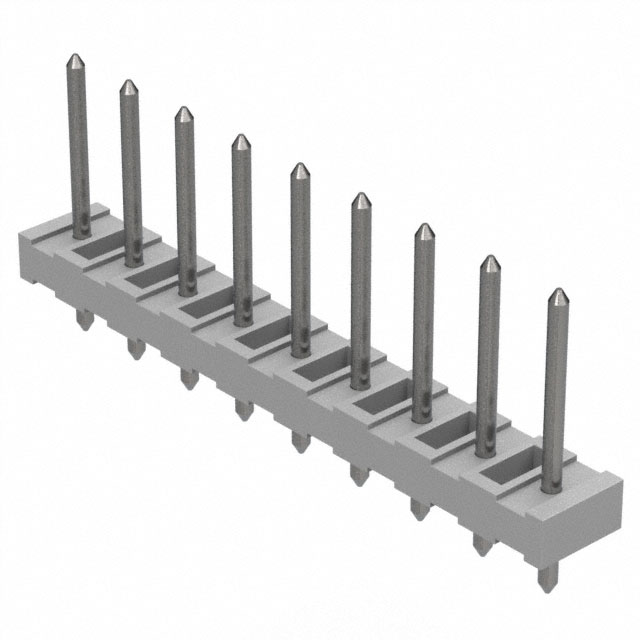

Molex 0010081091	General Purpose Industrial Telecommunications	2.54 µm	100 µin	All	1	100 çin	2.54 çm	Push-Pull			Solder	Nylon Polyamide (PA)	Unshrouded	9	3.94 mm	0.155 "	Brass	Board to Board Cable	Circular	Through Hole	Male Pin	Header	0.2 "	5.08 mm	Tin	0.125 in	3.18 mm	UL94 V-2	Natural	11.94 mm	0.47 in		19.05 mm	0.75 in

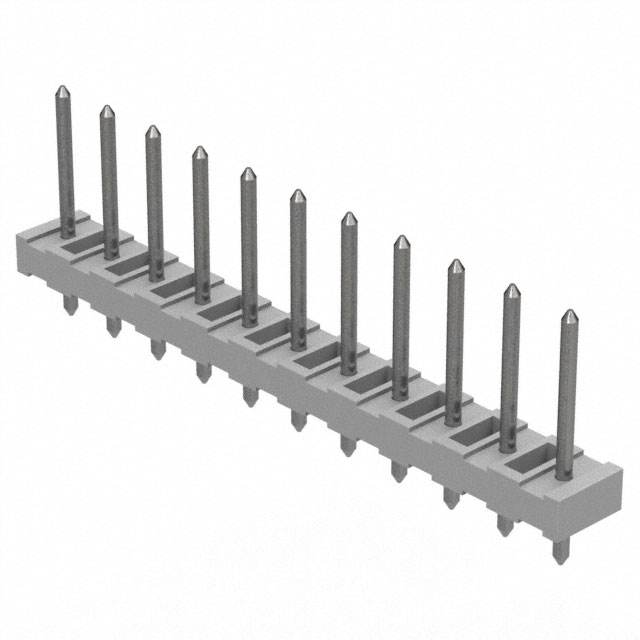

Molex 0010081111	General Purpose Industrial Telecommunications	2.54 µm	100 µin	All	1	100 çin	2.54 çm	Push-Pull			Solder	Nylon Polyamide (PA)	Unshrouded	11	3.94 mm	0.155 "	Brass	Board to Board Cable	Circular	Through Hole	Male Pin	Header	0.2 "	5.08 mm	Tin	0.125 in	3.18 mm	UL94 V-2	Natural	11.94 mm	0.47 in		19.05 mm	0.75 in

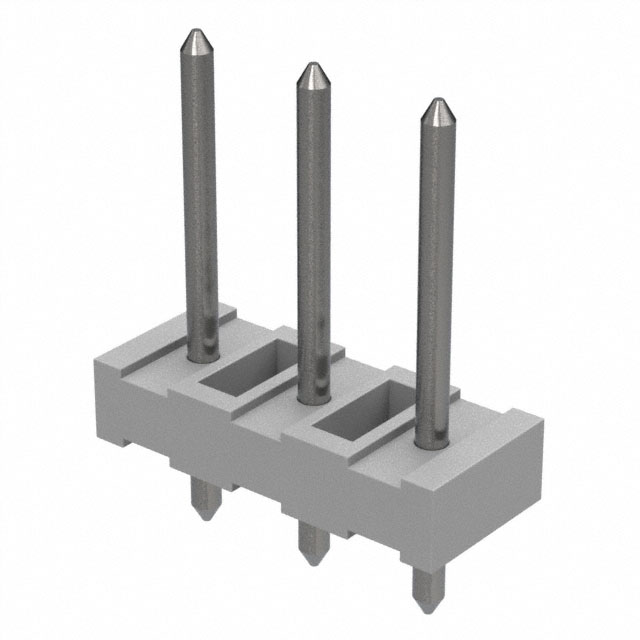

Molex 0010081031	General Purpose Industrial Telecommunications	2.54 µm	100 µin	All	1	100 çin	2.54 çm	Push-Pull			Solder	Nylon Polyamide (PA)	Unshrouded		3.94 mm	0.155 "	Brass	Board to Board Cable	Circular	Through Hole	Male Pin	Header	0.2 "	5.08 mm	Tin	0.125 in	3.18 mm	UL94 V-2	Natural	11.94 mm	0.47 in		19.05 mm	0.75 in
