ES1200 Series

Catalog

CONN TERM STRIP 11CIRC 0.472"

Part	Terminal Screw Finish	Mounting Type	Terminal Screw Material	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Color	Voltage Rating	Number of Wire Entries	Top Termination	Number of Rows [custom]	Number of Circuits	Terminal Block Type	Barrier Type	Bottom Termination	Pitch	Pitch	Current Rating (Amps)	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits [custom]
On Shore Technology Inc. ES1200/11DSFB	Zinc	Chassis Panel	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Natural	300 VDC	22	Screws	2	11	Eurostyle Terminal Strip	Enclosed	Closed	0.472 in	12 mm	30 A	10 AWG	20 AWG
On Shore Technology Inc. ES1200/07DSFB	Zinc	Chassis Panel	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Natural	300 VDC	14	Screws	2	7	Eurostyle Terminal Strip	Enclosed	Closed	0.472 in	12 mm	30 A	10 AWG	20 AWG
On Shore Technology Inc. ES1200/09DSFB	Zinc	Chassis Panel	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Natural	300 VDC	18	Screws	2		Eurostyle Terminal Strip	Enclosed	Closed	0.472 in	12 mm	30 A	10 AWG	20 AWG	9

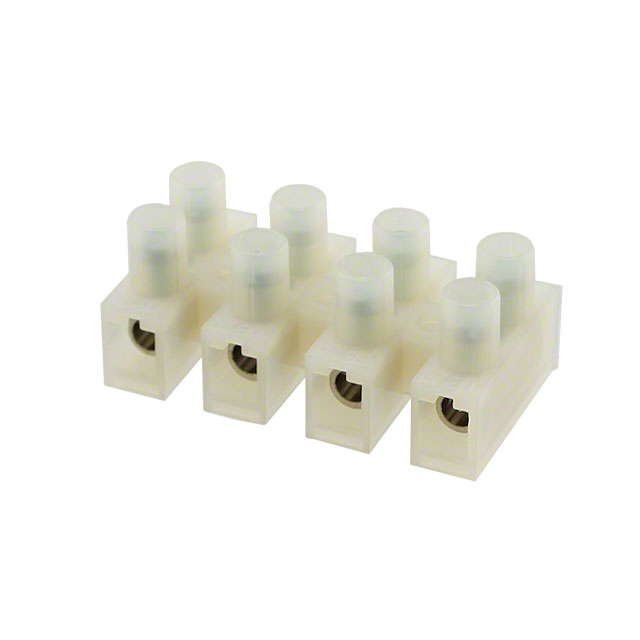

On Shore Technology Inc. ES1200/04DSFB	Zinc	Chassis Panel	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Natural	300 VDC	8	Screws	2	4	Eurostyle Terminal Strip	Enclosed	Closed	0.472 in	12 mm	30 A	10 AWG	20 AWG
On Shore Technology Inc. ES1200/05DSFB	Zinc	Chassis Panel	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Natural	300 VDC	10	Screws	2	5	Eurostyle Terminal Strip	Enclosed	Closed	0.472 in	12 mm	30 A	10 AWG	20 AWG

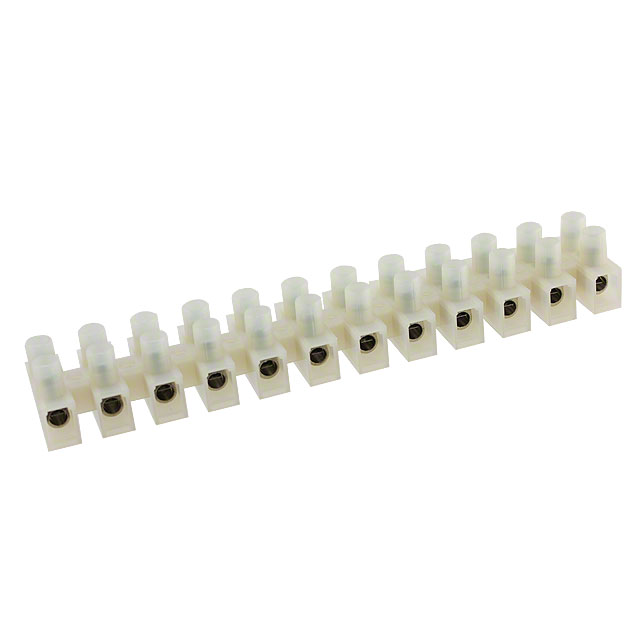

On Shore Technology Inc. ES1200/12DSFB	Zinc	Chassis Panel	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Natural	300 VDC		Screws	2	12	Eurostyle Terminal Strip	Enclosed	Closed	0.472 in	12 mm	30 A	10 AWG	20 AWG
On Shore Technology Inc. ES1200/10DSFB	Zinc	Chassis Panel	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Natural	300 VDC	20	Screws	2	10	Eurostyle Terminal Strip	Enclosed	Closed	0.472 in	12 mm	30 A	10 AWG	20 AWG

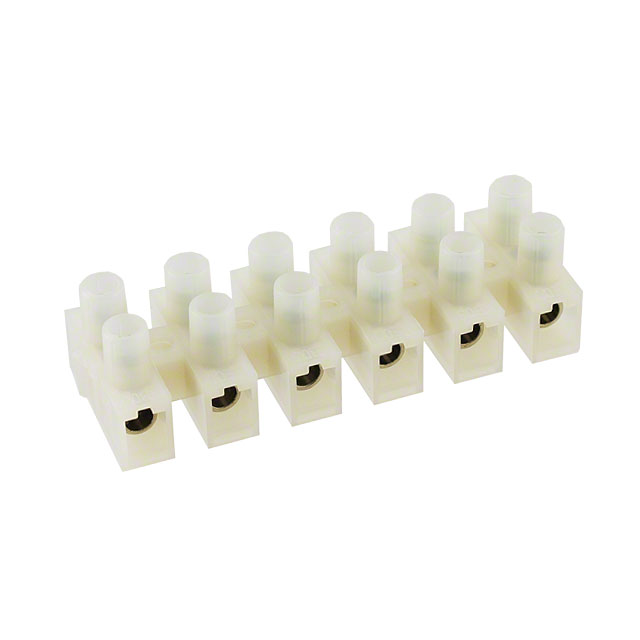

On Shore Technology Inc. ES1200/06DSFB	Zinc	Chassis Panel	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Natural	300 VDC	12	Screws	2	6	Eurostyle Terminal Strip	Enclosed	Closed	0.472 in	12 mm	30 A	10 AWG	20 AWG

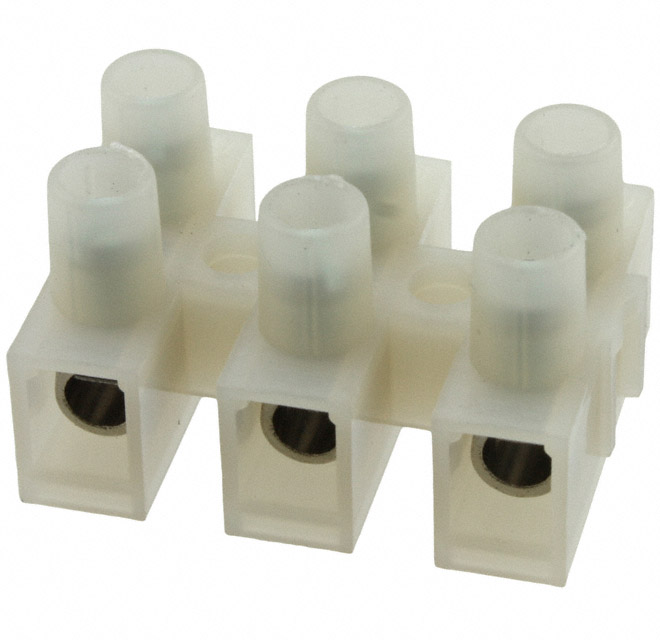

On Shore Technology Inc. ES1200/03DSFB	Zinc	Chassis Panel	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Natural	300 VDC	6	Screws	2	3	Eurostyle Terminal Strip	Enclosed	Closed	0.472 in	12 mm	30 A	10 AWG	20 AWG

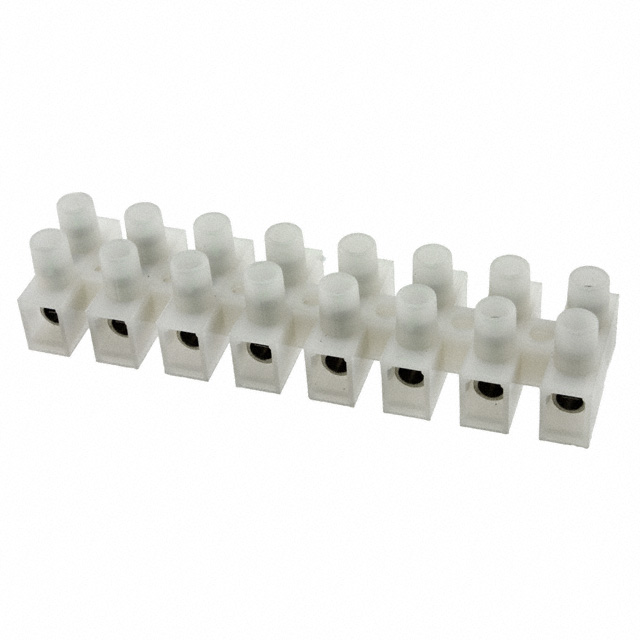

On Shore Technology Inc. ES1200/08DSFB	Zinc	Chassis Panel	Steel	Nylon 6/6 Polyamide (PA66)	-33 °C	105 ░C	Natural	300 VDC	16	Screws	2	8	Eurostyle Terminal Strip	Enclosed	Closed	0.472 in	12 mm	30 A	10 AWG	20 AWG
