UK Series

Catalog

DIN RAIL TERMINAL BLOCKS 8.2MM DBL LEVEL 250V

Part	Fuse Type [y]	Fuse Type [x]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Type	Color	Terminal - Width [y]	Number of Levels	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Disconnect Type	Number of Positions	Current - IEC	Termination Style	Voltage - IEC	Material Flammability Rating	Material - Insulation	Stripping Length	Current - UL	Voltage - UL	For Use With/Related Products	Wire Gauge or Range - AWG

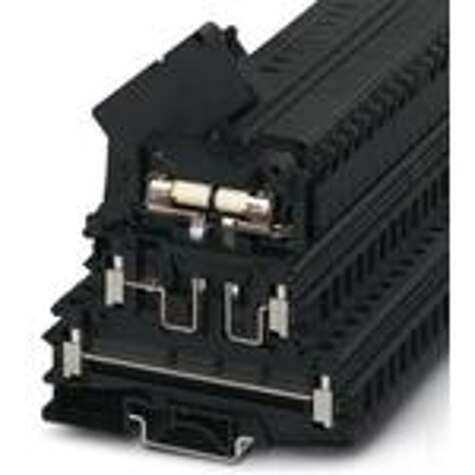

Phoenix Contact 0711629	20 mm	5 mm	12 AWG	24 AWG	Disconnect	Black	8.2 mm	2	4 mm²	0.2 mm²	Fuse	4	6.3 A	Screw	400 V
Phoenix Contact 3024740			6 AWG	20 AWG	Earth/Neutral Ground	Blue Green Yellow	20.4 mm	1	16 mm²	0.5 mm²		2	76 A	Screw	250 V

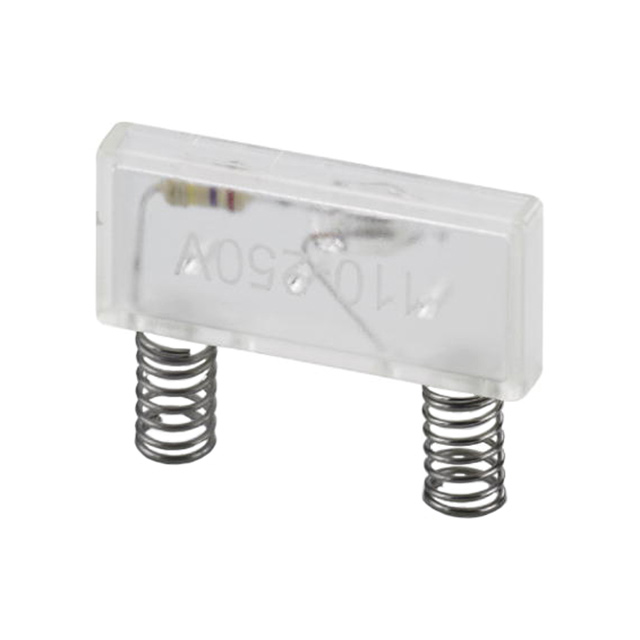

Phoenix Contact 2204231					Disconnect						Fuse

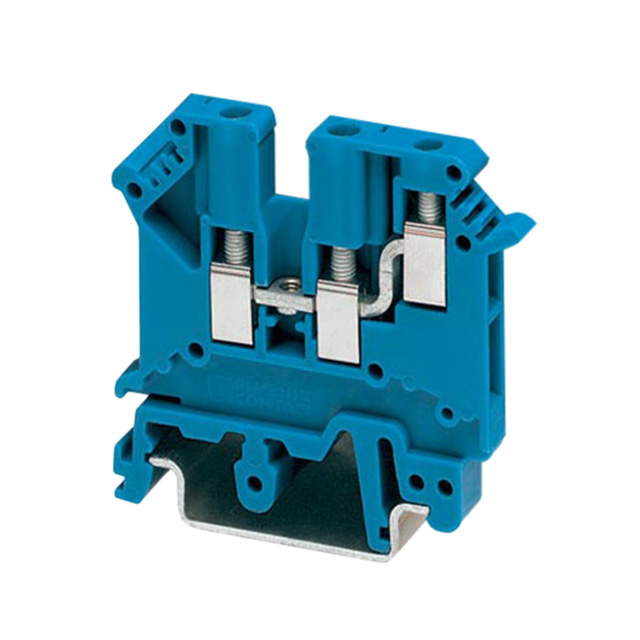

Phoenix Contact 3002416			12 AWG	30 AWG	Feed Through	Blue	5.2 mm	1	2.5 mm²	0.2 mm²			24 A	Screw	400 V	UL94 V-0	Nylon Polyamide (PA)	8 mm	20 A	150 V
Phoenix Contact 3000563			10 AWG	20 AWG	Disconnect	Gray	6.2 mm	1	6 mm²	0.2 mm²	Knife Switch	2	16 A	Screw	500 V	UL94 V-0	Nylon Polyamide (PA)	8 mm		600 V

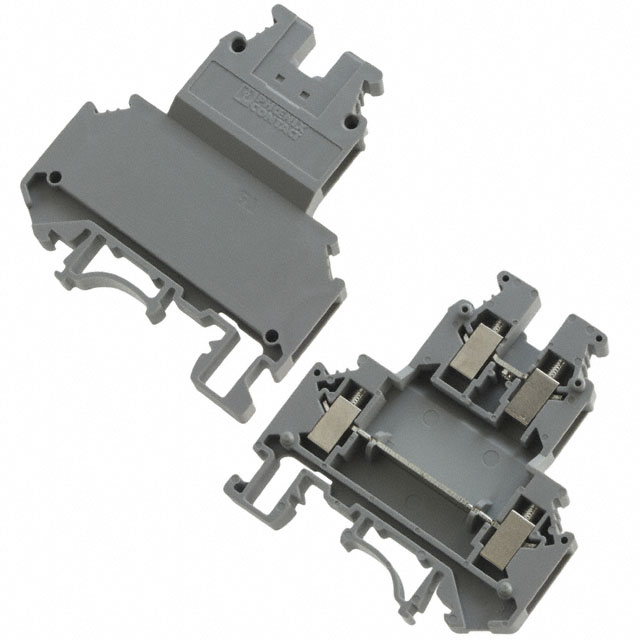

Phoenix Contact 2774017			10 AWG	26 AWG	Feed Through	Gray	6.2 mm	2	4 mm²	0.2 mm²		4	32 A	Screw	500 V	UL94 V-0	Nylon Polyamide (PA)	8 mm	30 A	600 V
Phoenix Contact 3002322					End Plate Rail Type	Gray															CLIPLINE UK Series
Phoenix Contact 3048674

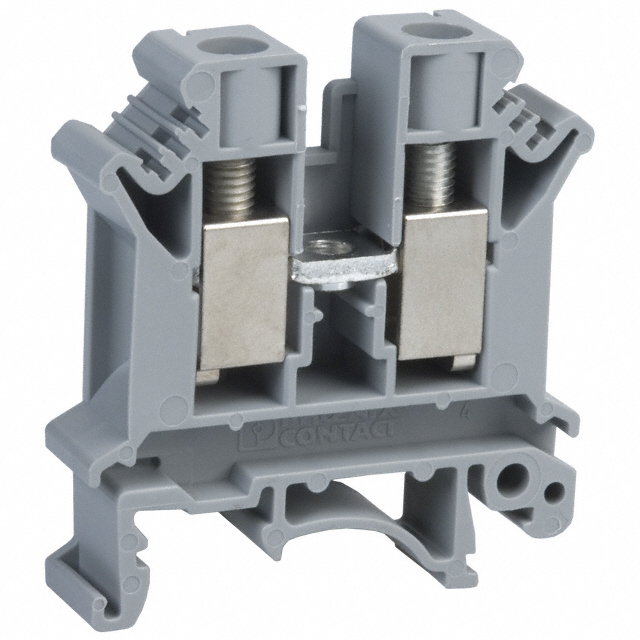

Phoenix Contact 3005073			6 AWG	24 AWG	Feed Through	Gray	10.2 mm	1	16 mm²	0.5 mm²		2	57 A	Screw	800 V	UL94 V-0	Nylon Polyamide (PA)	10 mm	65 A	600 V

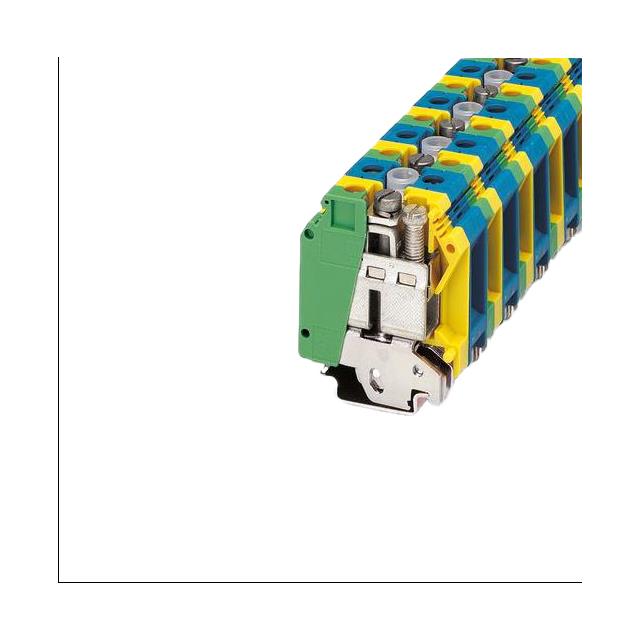

Phoenix Contact 3008054					Earth/Neutral Ground	Blue Green Yellow	30.4 mm	1	35 mm²	0.75 mm²		4	125 A	Screw	630 V	UL94 V-0	Nylon Polyamide (PA)	16 mm	150 A	600 V		18 AWG
