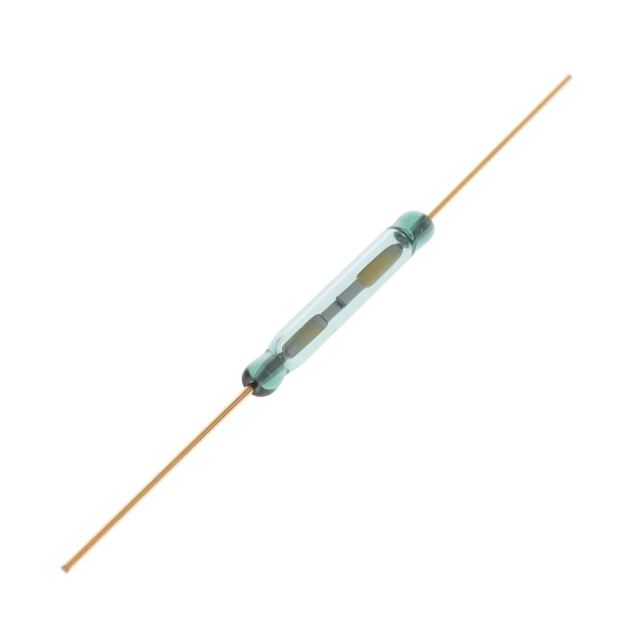

GC2717 Series
Manufacturer: Comus International
Beta
⌘K
SWITCH REED SPST-NO 500MA 500V
| Part | Size - Body Diameter | Size - Body Length | Length - Overall | Circuit | Capacitance | Voltage - Switching DC | Power - Rated | Type | Operate Range (Max) | Operate Range (Min) | Voltage - Switching AC | Release Time | Mounting Type | Release Range | Release Range (numeric single value) | Current - Carry | Current - Carry Type | Operating Temperature (Max) | Operating Temperature (Min) | Current - Switching (AC/DC) | Current - Switching Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Comus International | 0.102 in | 0.748 in | 2.165 in | SPST-NO | 0.5 pF | 500 V | 10 W | Glass Body Reed | 25 AT | 20 AT | 500 V | 0.1 ms | Through Hole | 5AT | 5 AT | 1 A | AC DC | 125 °C | -40 °C | 0.5 A | AC DC | Axial |
 Comus International | 0.102 in | 0.748 in | 2.165 in | SPST-NO | 0.5 pF | 500 V | 10 W | Glass Body Reed | 30 AT | 25 AT | 500 V | 0.1 ms | Through Hole | 5AT | 5 AT | 1 A | AC DC | 125 °C | -40 °C | 0.5 A | AC DC | Axial |
