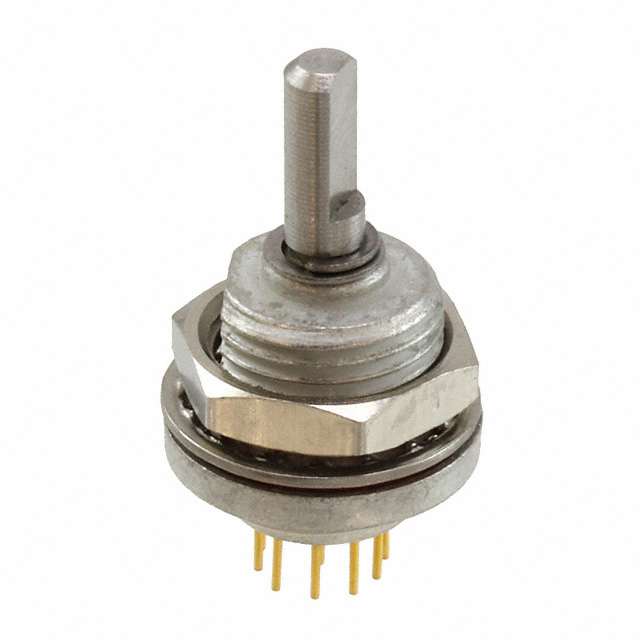

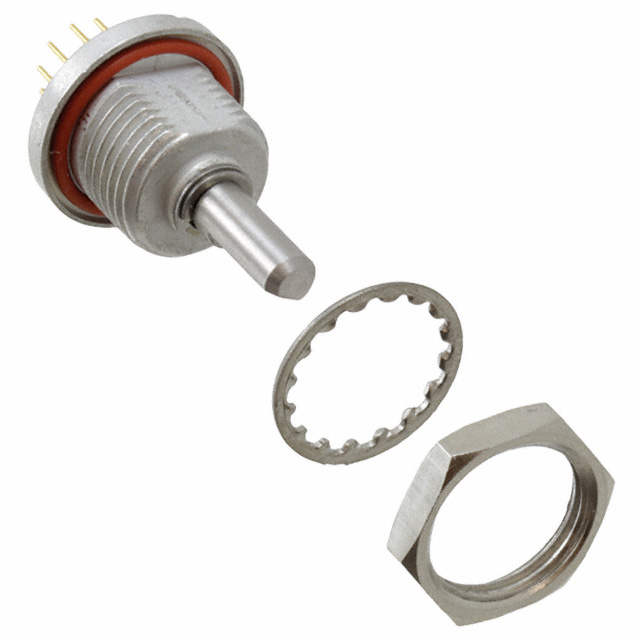

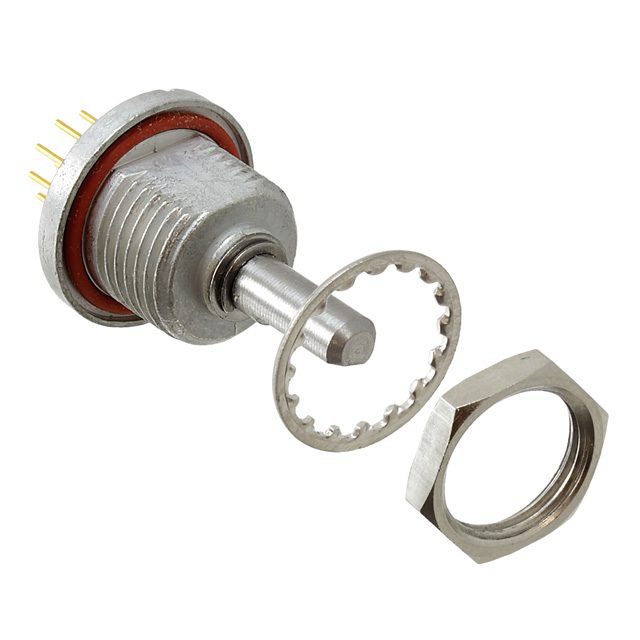

77SP36 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY 5POS 50MA 115V
| Part | Panel Cutout Dimensions [diameter] | Features | Angle of Throw | Number of Poles per Deck | Voltage Rating - DC | Depth Behind Panel [z] | Number of Positions | Number of Decks [custom] | Contact Finish | Index Stops | Circuit per Deck | Current Rating (Amps) | Mounting Type | Contact Material | Actuator Length [x] | Termination Style | Voltage Rating - AC | Actuator Type | Contact Timing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 9.53 mm | Shaft and Panel Sealed | 36 ° | 2 | 28 V | 4.57 mm | 5 | 1 | Gold | Fixed | DP5T | 50 mA 200 mA | Panel Mount Through Hole | Silver Tin Oxide (AgSnO) | 7.98 mm | PC Pin | 115 V | Flatted (3.17mm Dia) | Non-Shorting (BBM) |
 Grayhill Inc. | 9.53 mm | Shaft and Panel Sealed | 36 ° | 1 | 28 V | 4.57 mm | 1 | Gold | Fixed | SP3T | 50 mA 200 mA | Panel Mount Through Hole | Silver Tin Oxide (AgSnO) | 7.98 mm | PC Pin | 115 V | Flatted (3.17mm Dia) | Non-Shorting (BBM) | |
 Grayhill Inc. | 9.53 mm | Shaft and Panel Sealed | 36 ° | 1 | 28 V | 4.57 mm | 8 | 1 | Gold | Fixed | SP8T | 50 mA 200 mA | Panel Mount Through Hole | Silver Tin Oxide (AgSnO) | 7.98 mm | PC Pin | 115 V | Flatted (3.17mm Dia) | Non-Shorting (BBM) |
