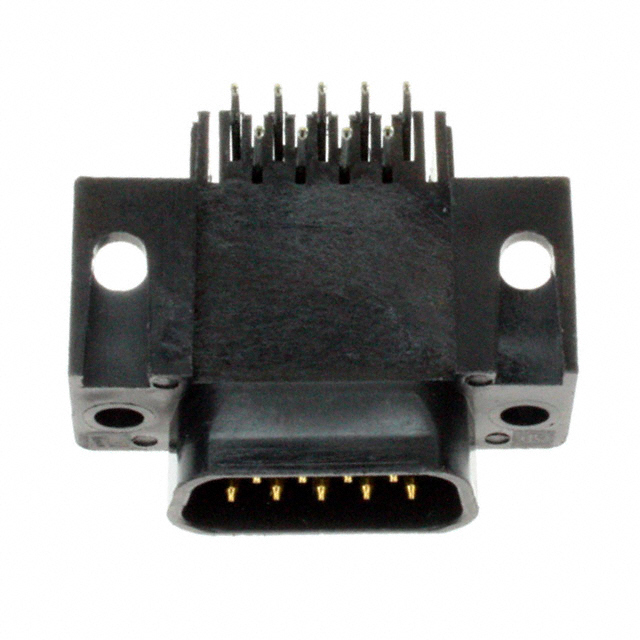

747467 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN D-SUB PIN 9 POS 1.37MM SOLDER RA THRU-HOLE 9 TERMINAL 1 PORT PACKAGE
| Part | Color | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Finish Thickness | Connector Style | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Mounting Type | Backset Spacing | Backset Spacing | Number of Rows [custom] | Flange Feature | Connector Type | Material Flammability Rating | Current Rating (Amps) | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | 125 VDC | Brass | -55 C | 105 ░C | Gold | Flash | D-Sub | Solder | 1 | DE E | 9 | Right Angle Through Hole | 0.59 in | 14.99 mm | 2 | Housing/Shell (Unthreaded) | Plug Male Pins | UL94 V-0 | 6 A | Signal |
 TE Connectivity AMP Connectors | Black | 125 VDC | Brass | -55 C | 105 ░C | Gold | Flash | D-Sub | Solder | 1 | DE E | 9 | Right Angle Through Hole | 0.59 in | 14.99 mm | 2 | Housing/Shell (Unthreaded) | Plug Male Pins | UL94 V-0 | 6 A | Signal |
