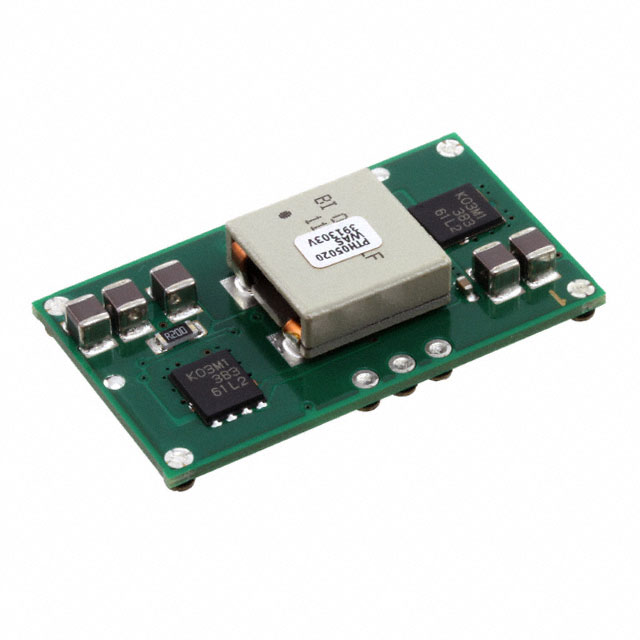

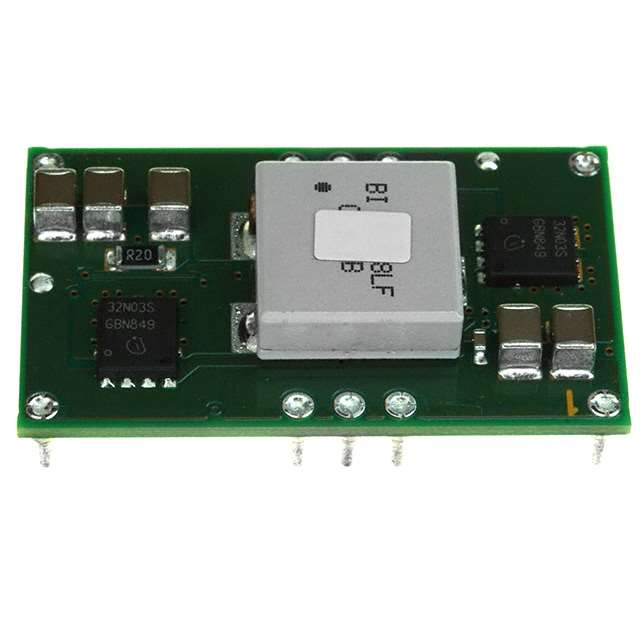

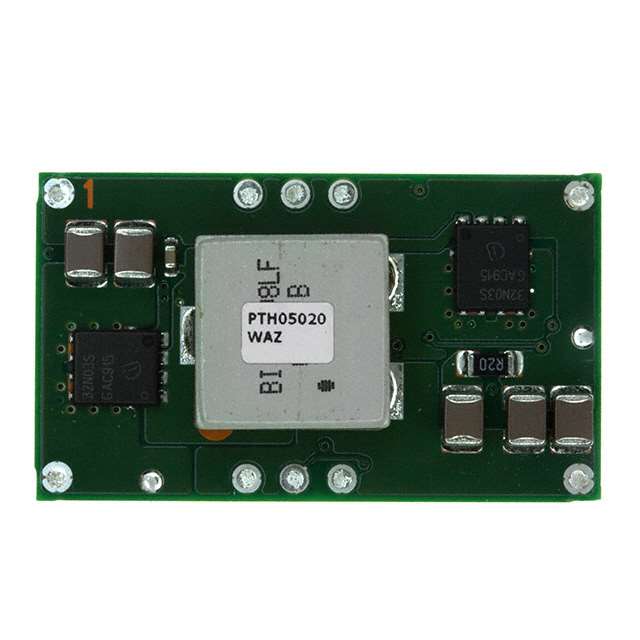

PTH05020W Series
22 A, 5-V Input Wide-Output Adjust Plug-in Power Module
Manufacturer: Texas Instruments
Catalog
22 A, 5-V Input Wide-Output Adjust Plug-in Power Module
| Part | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Efficiency | Voltage - Input (Min) [Min] | Number of Outputs | Package / Case | Features | Mounting Type | Current - Output (Max) [Max] | Applications | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 0.8 V | 3.6 V | 9.6 mm | 22.1 mm | 0.38 in | 0.87 in | 1.5 in | 38.1 mm | 95 % | 4.5 V | 1 | 10-SMD Module | OCP OTP Remote On/Off UVLO | Surface Mount | 22 A | ITE (Commercial) | Non-Isolated PoL Module | 85 °C | -40 °C | 5.5 V |
 Texas Instruments | 0.8 V | 3.6 V | 8.9 mm | 22.1 mm | 0.35 " | 0.87 in | 1.5 in | 38.1 mm | 95 % | 4.5 V | 1 | 10-DIP Module | UVLO | Through Hole | 22 A | ITE (Commercial) | Non-Isolated PoL Module | 85 °C | -40 °C | 5.5 V |
 Texas Instruments | 0.8 V | 3.6 V | 9.6 mm | 22.1 mm | 0.38 in | 0.87 in | 1.5 in | 38.1 mm | 95 % | 4.5 V | 1 | 10-SMD Module | OCP OTP Remote On/Off UVLO | Surface Mount | 22 A | ITE (Commercial) | Non-Isolated PoL Module | 85 °C | -40 °C | 5.5 V |
 Texas Instruments | 0.8 V | 3.6 V | 8.9 mm | 22.1 mm | 0.35 " | 0.87 in | 1.5 in | 38.1 mm | 95 % | 4.5 V | 1 | 10-DIP Module | Through Hole | 22 A | ITE (Commercial) | Non-Isolated PoL Module | 85 °C | -40 °C | 5.5 V | |
Texas Instruments | 0.8 V | 3.6 V | 9.6 mm | 22.1 mm | 0.38 in | 0.87 in | 1.49 in | 38 mm | 95 % | 4.5 V | 1 | 10-SMD Module | OCP OTP Remote On/Off UVLO | Surface Mount | 22 A | ITE (Commercial) | Non-Isolated PoL Module | 85 °C | -40 °C | 5.5 V |
Key Features
• Up to 22 A Output Current5-V Input VoltageWide-Output Voltage Adjust (0.8 V to 3.6 V)Efficiencies up to 96%155 W/in³ Power DensityOn/Off InhibitOutput Voltage SensePre-Bias StartupMargin Up/Down ControlsUnder-Voltage LockoutAuto-Track™ SequencingOutput Over-Current Protection (Non-Latching, Auto-Reset)Over-Temperatur ProtectionOperating Temp: –40 to +85°CIPC Lead Free 2DSP Compatible Output VoltagesSafety Agency Approvals:UL 1950, CSA 22.2 950, EN60950 VDE (Pending)Point-of-Load Alliance (POLA) CompatibleUp to 22 A Output Current5-V Input VoltageWide-Output Voltage Adjust (0.8 V to 3.6 V)Efficiencies up to 96%155 W/in³ Power DensityOn/Off InhibitOutput Voltage SensePre-Bias StartupMargin Up/Down ControlsUnder-Voltage LockoutAuto-Track™ SequencingOutput Over-Current Protection (Non-Latching, Auto-Reset)Over-Temperatur ProtectionOperating Temp: –40 to +85°CIPC Lead Free 2DSP Compatible Output VoltagesSafety Agency Approvals:UL 1950, CSA 22.2 950, EN60950 VDE (Pending)Point-of-Load Alliance (POLA) Compatible
Description
AI
Th PTH05020 series of non-islolated power modules offers OEM designers a combination of high performance, small footprint, and industry leading features. As part of a new class of power modules these products provide designers with the flexibility to power the most complex multi-processor digital systems using off-the-shelf catalog parts.
The series employs double-sided surface mount construction and provides high-performance step-down power conversion for up to 22 A of output current from a 5-V input bus voltage. The output voltage of the PTH05020W can be set to any value over the range, 0.8 V to 3.6 V, using a single resistor.
This series includes Auto-Track™. Auto-Track simplifies the task of supply voltage sequencing in a power system by enabling modules to track each other, or any external voltage, during power up and power down.
Other operating features include an on/off inhibit, output voltage adjust (trim), and margin up/down controls. To ensure tight load regulation, an output voltage sense is also provided. A non-latching over-current trip and over-temperature shutdown provides load fault protection.
Target applications include complex multi-voltage, multi-processor systems that incorporate the industry’s high-speed DSPs, micro-processors and bus drivers.
Th PTH05020 series of non-islolated power modules offers OEM designers a combination of high performance, small footprint, and industry leading features. As part of a new class of power modules these products provide designers with the flexibility to power the most complex multi-processor digital systems using off-the-shelf catalog parts.
The series employs double-sided surface mount construction and provides high-performance step-down power conversion for up to 22 A of output current from a 5-V input bus voltage. The output voltage of the PTH05020W can be set to any value over the range, 0.8 V to 3.6 V, using a single resistor.
This series includes Auto-Track™. Auto-Track simplifies the task of supply voltage sequencing in a power system by enabling modules to track each other, or any external voltage, during power up and power down.
Other operating features include an on/off inhibit, output voltage adjust (trim), and margin up/down controls. To ensure tight load regulation, an output voltage sense is also provided. A non-latching over-current trip and over-temperature shutdown provides load fault protection.
Target applications include complex multi-voltage, multi-processor systems that incorporate the industry’s high-speed DSPs, micro-processors and bus drivers.
