9BD12 Series

Catalog

FAN BLOWER 76X20MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Bearing Type	Static Pressure	Static Pressure	Voltage - Rated	Weight	Weight	Termination	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Width [y]	Noise	Air Flow	Air Flow	Size / Dimension [x]	Size / Dimension	Size / Dimension [z]	RPM	Approval Agency	Features

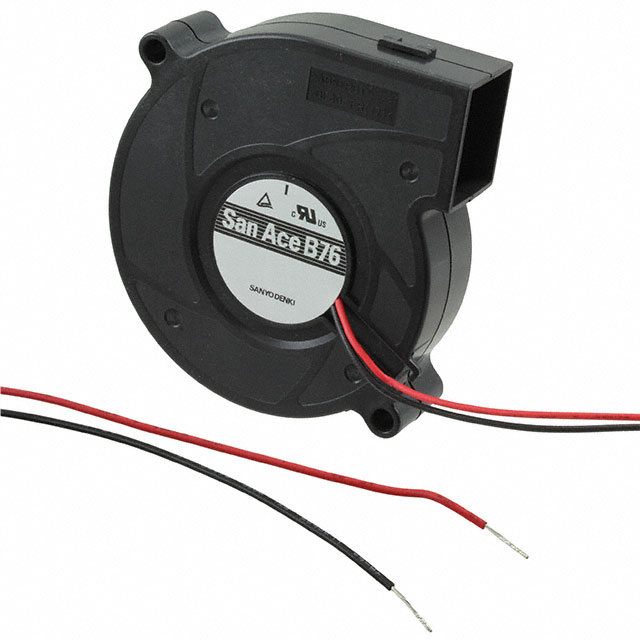

Sanyo Denki America Inc. 9BD12HA6-1	0.21 A	Plastic	40000 Hrs	5.5 VDC	13.8 VDC	Plastic	Ball	0.92 in H2O	229.2 Pa	12 VDC	0.128 lb	58.06 g	2 Wire Leads	2.52 W	-20 ░C	70 °C	Blower	20 mm	41 dB	0.266 m³/min	9.5 CFM	76 mm	Rectangular/Rounded	69.7 mm	4200 RPM	cURus TUV
Sanyo Denki America Inc. 9BD12FD6-1	0.18 A	Plastic	40000 Hrs	5.5 VDC	13.8 VDC	Plastic	Ball			12 VDC	0.128 lb	58.06 g	3 Wire Leads	2.16 W	-20 ░C	70 °C	Blower	20 mm	39 dB(A)	0.246 m³/min	8.8 CFM	76 mm	Rectangular/Rounded	69.7 mm	3900 RPM	cURus TUV	Locked Rotor Sensor

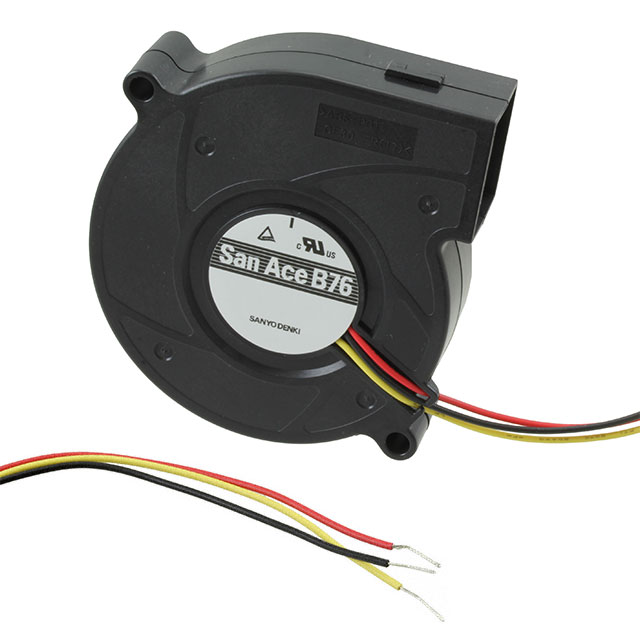

Sanyo Denki America Inc. 9BD12FC6-1	0.18 A	Plastic	40000 Hrs	5.5 VDC	13.8 VDC	Plastic	Ball			12 VDC	0.128 lb	58.06 g	3 Wire Leads	2.16 W	-20 ░C	70 °C	Blower	20 mm	39 dB(A)	0.246 m³/min	8.8 CFM	76 mm	Rectangular/Rounded	69.7 mm	3900 RPM	cURus TUV	Locked Rotor Protection Speed Sensor (Tach)

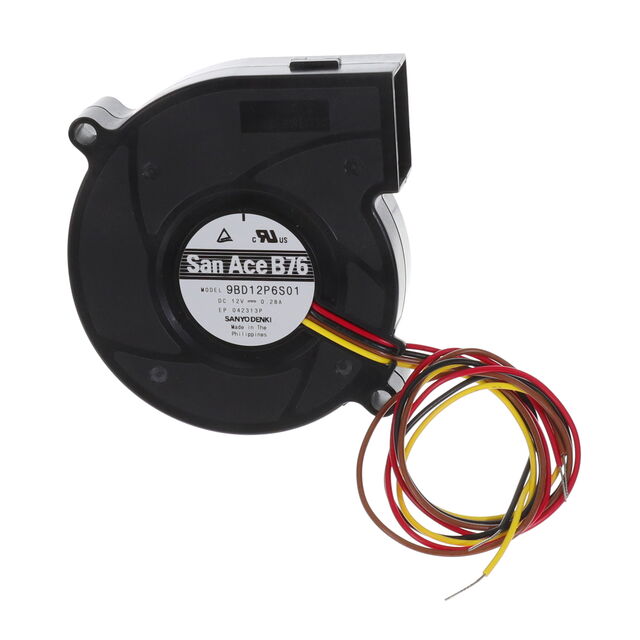

Sanyo Denki America Inc. 9BD12P6S01	0.28 A	Plastic	40000 Hrs	5 VDC	13.8 VDC	Plastic	Ball	1.2 in H2O	298.9 Pa	12 VDC	0.128 lb	58.06 g	4 Wire Leads	3.36 W	-20 ░C	70 °C	Blower	20 mm	43 dB	0.286 mł/min	10.2 CFM	76 mm	Rectangular/Rounded	69.7 mm	4500 RPM	cURus TUV	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9BD12HC6-1	0.21 A	Plastic	40000 Hrs	5.5 VDC	13.8 VDC	Plastic	Ball	0.92 in H2O	229.2 Pa	12 VDC	0.128 lb	58.06 g	3 Wire Leads	2.52 W	-20 ░C	70 °C	Blower	20 mm	41 dB	0.266 m³/min	9.5 CFM	76 mm	Rectangular/Rounded	69.7 mm	4200 RPM	cURus TUV	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9BD12SC6-1	0.28 A	Plastic	40000 Hrs	5 VDC	13.8 VDC	Plastic	Ball	1.2 in H2O	298.9 Pa	12 VDC	0.128 lb	58.06 g	3 Wire Leads	3.36 W	-20 ░C	70 °C	Blower	20 mm	43 dB	0.286 mł/min	10.2 CFM	76 mm	Rectangular/Rounded	69.7 mm	4500 RPM	cURus TUV	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9BD12SA6-1	0.28 A	Plastic	40000 Hrs	5 VDC	13.8 VDC	Plastic	Ball	1.2 in H2O	298.9 Pa	12 VDC	0.128 lb	58.06 g	2 Wire Leads	3.36 W	-20 ░C	70 °C	Blower	20 mm	43 dB	0.286 mł/min	10.2 CFM	76 mm	Rectangular/Rounded	69.7 mm	4500 RPM	cURus TUV
