2301843 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

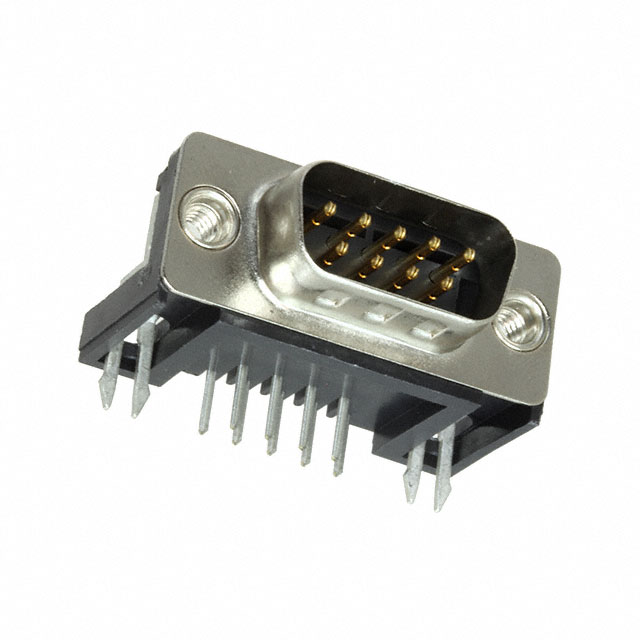

AMPL PLUG HD20, R/A, 9P, B/L,4-40 INS
| Part | Backset Spacing | Backset Spacing | Color | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Voltage Rating | Mounting Type | Flange Feature | Termination | Contact Material | Contact Type | Shell Material, Finish | Features | Dielectric Material | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Contact Finish | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.411 in | 10.43 mm | Black | D-Sub | DE E | 1 | Male Pins Plug | 250 VAC | Through Hole Right Angle | 4-40 Board Side | Solder | Brass | Signal | Nickel Plated Steel | Board Lock Grounding Indents | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 15 µin | 0.38 µm | UL94 V-0 | 105 ░C | -55 °C | 2 A | Gold | 9 |
