TK25S06N1L Series

Catalog

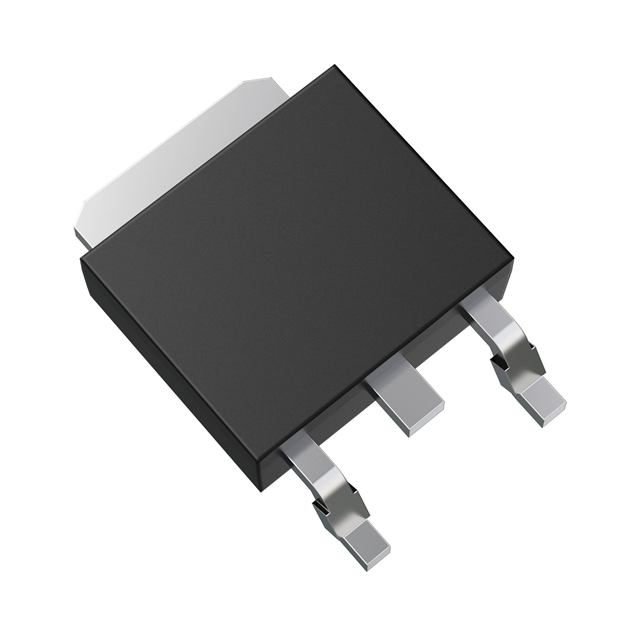

12V - 300V MOSFETS, N-CH MOSFET, 60 V, 25 A, 0.0185 Ω@10V, DPAK+

Part	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package	Qualification	Operating Temperature	FET Type	Package / Case	Vgs(th) (Max) @ Id	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Vgs (Max)	Grade	Power Dissipation (Max) [Max]	Technology
Toshiba Semiconductor and Storage TK25S06N1L,LXHQ	855 pF	36.8 mOhm	15 nC	4.5 V 10 V	DPAK+	AEC-Q101	175 °C	N-Channel	DPAK (2 Leads + Tab) SC-63 TO-252-3	2.5 V	Surface Mount	25 A	60 V	20 V	Automotive	57 W	MOSFET (Metal Oxide)
