Q85V Series

Catalog

Q85 SERIES: DIFFUSE MODE W/TIMING

Part	Ingress Protection	Output Configuration	Sensing Method	Response Time	Light Source	Voltage - Supply [Min]	Voltage - Supply [Max]	Adjustment Type	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance	Sensing Distance
BANNER ENGINEERING Q85VR3D-T9-B	12 13 2 3 3S 4 4X 6 6P IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	SPDT	Diffuse	20 ms	Infrared (880nm)	12 VDC 24 VAC	240 VAC 240 VDC	Adjustable Potentiometer	55 °C	-25 °C

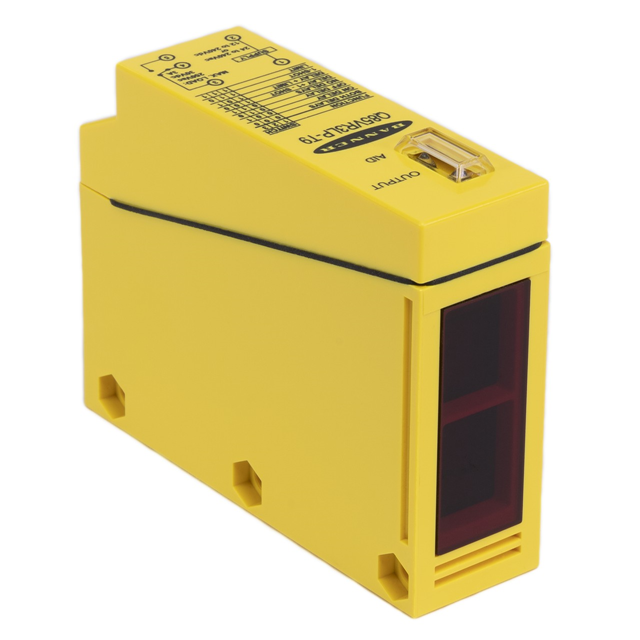

BANNER ENGINEERING Q85VR3LP-T9	12 13 2 3 3S 4 4X 6 6P IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	SPDT	Polarized Retroreflective	20 ms	Red LED	12 VDC 24 VAC	240 VAC 240 VDC	Adjustable Potentiometer	55 °C	-25 °C	4600 mm	80 mm	3.15 "	181.1 "

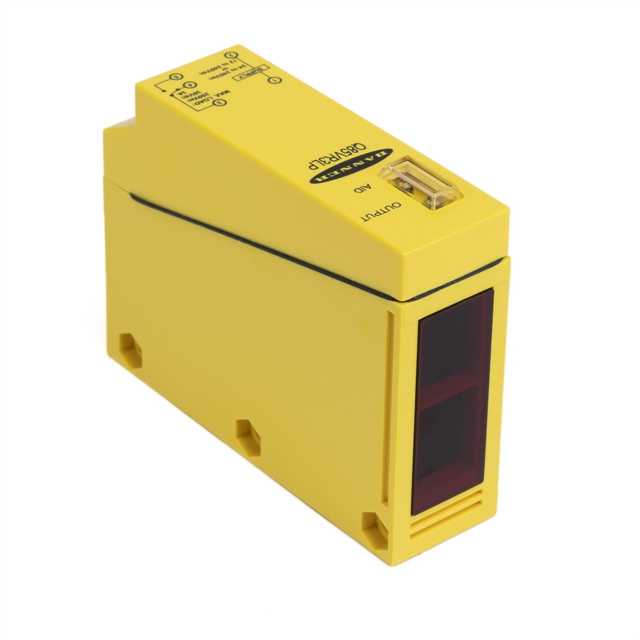

BANNER ENGINEERING Q85VR3LP	12 13 2 3 3S 4 4X 6 6P IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	SPDT	Polarized Retroreflective	20 ms	Red LED	12 VDC 24 VAC	240 VAC 240 VDC	Adjustable Potentiometer	55 °C	-25 °C					3.15 "	80 mm
BANNER ENGINEERING Q85VR3LP-T9-B	12 13 2 3 3S 4 4X 6 6P IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	SPDT	Polarized Retroreflective	20 ms	Red (680nm)	12 VDC 24 VAC	240 VAC 240 VDC	Adjustable Potentiometer	55 °C	-25 °C					181.102 "	4.6 m

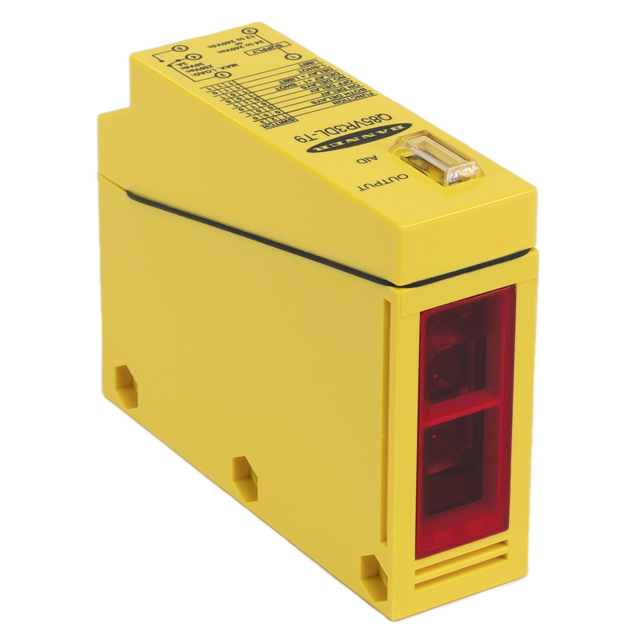

BANNER ENGINEERING Q85VR3DL-T9	12 13 2 3 3S 4 4X 6 6P IEC IEC IP67 IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X NEMA 6 NEMA 6P	SPDT	Diffuse	20 ms	Red LED	12 VDC 24 VAC	240 VAC 240 VDC	Adjustable Potentiometer	55 °C	-25 °C					39.37 in	1 m
