316-042 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 42POS 0.156

Part	Material - Insulation	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Color	Termination	Contact Finish Thickness	Contact Finish Thickness	Gender	Contact Finish	Read Out	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Card Type	Contact Type	Pitch	Pitch	Contact Material	Flange Feature	Number of Positions [custom]	Features	Flange Feature [diameter]	Flange Feature [diameter]

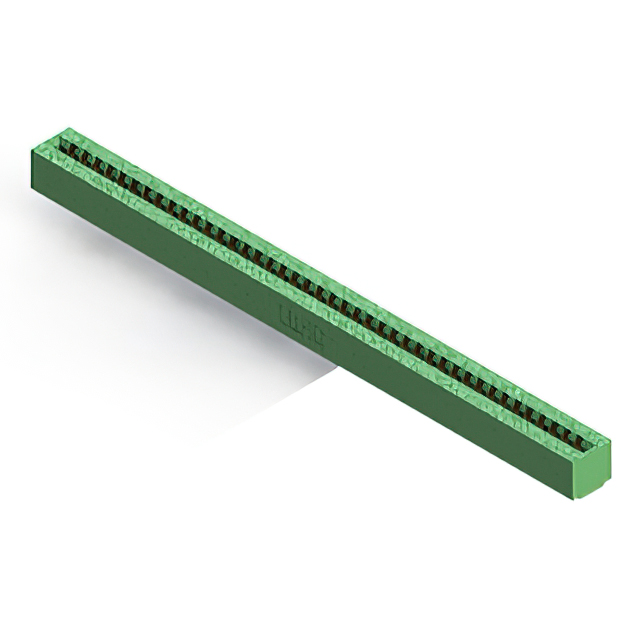

EDAC Inc. 316-042-521-101	Polyester Thermoplastic	1	-40 C	105 ░C	42	Through Hole	Green	Solder	0.25 Ám	10 Áin	Female	Gold	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Cantilever	3.96 mm	0.156 in	Copper Alloy

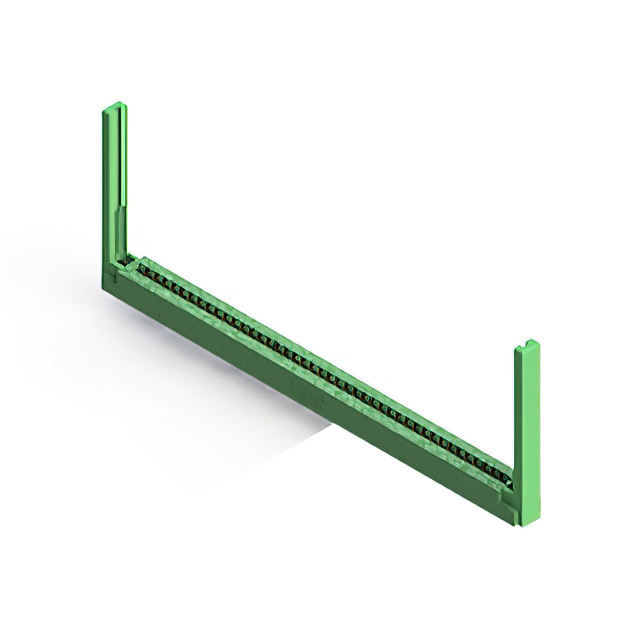

EDAC Inc. 316-042-520-168	Polyester Thermoplastic	1	-40 C	105 ░C		Panel Mount Through Hole	Green	Solder	0.25 Ám	10 Áin	Female	Gold	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Cantilever	3.96 mm	0.156 in	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	84	Card Guides

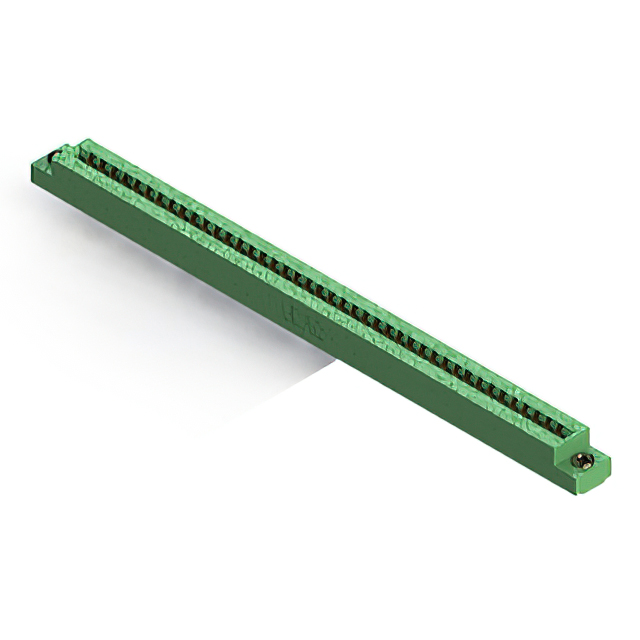

EDAC Inc. 316-042-520-103	Polyester Thermoplastic	1	-40 C	105 ░C		Panel Mount Through Hole	Green	Solder	0.25 Ám	10 Áin	Female	Gold	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Cantilever	3.96 mm	0.156 in	Copper Alloy	Floating Bobbin Flush Mount	84		0.116 "	2.95 mm

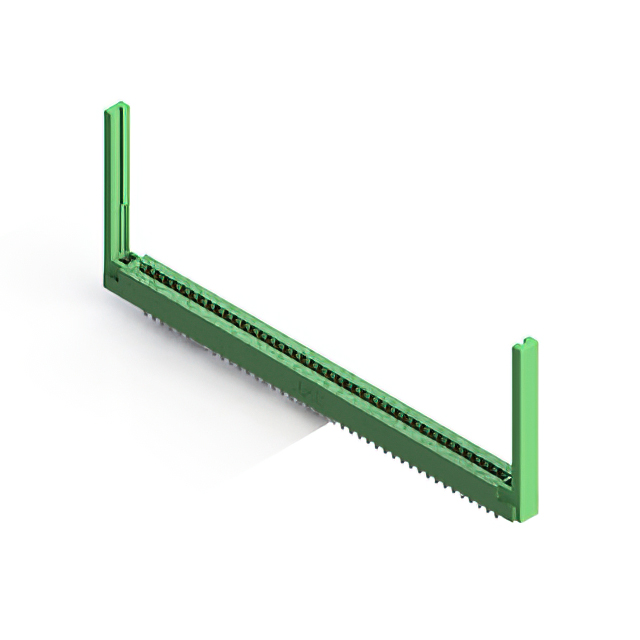

EDAC Inc. 316-042-500-168	Polyester Thermoplastic	1	-40 C	105 ░C		Panel Mount	Green	Solder Eyelet(s)	0.25 Ám	10 Áin	Female	Gold	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Cantilever	3.96 mm	0.156 in	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	84	Card Guides

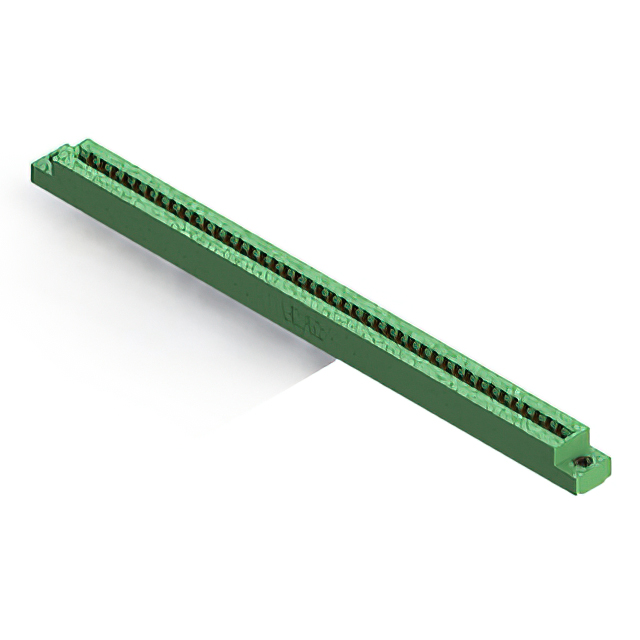

EDAC Inc. 316-042-520-108	Polyester Thermoplastic	1	-40 C	105 ░C	42	Through Hole	Green	Solder	0.25 Ám	10 Áin	Female	Gold	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Cantilever	3.96 mm	0.156 in	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening

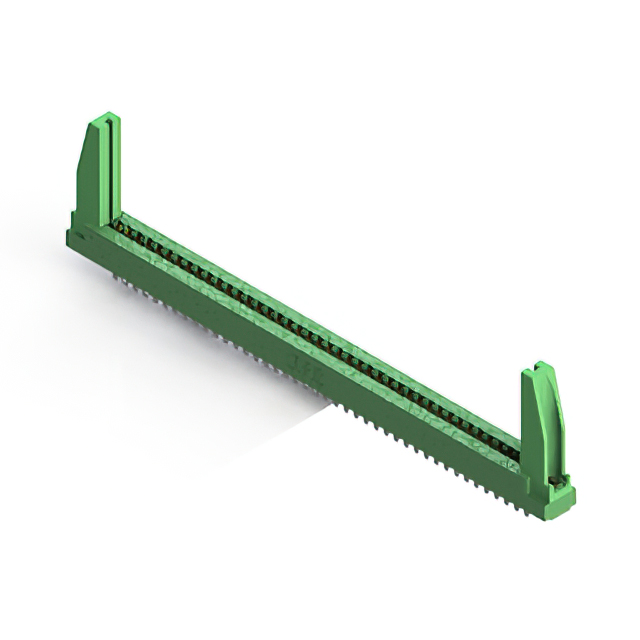

EDAC Inc. 316-042-500-178	Polyester Thermoplastic	1	-40 C	105 ░C		Panel Mount	Green	Solder Eyelet(s)	0.25 Ám	10 Áin	Female	Gold	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Cantilever	3.96 mm	0.156 in	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	84	Card Guides

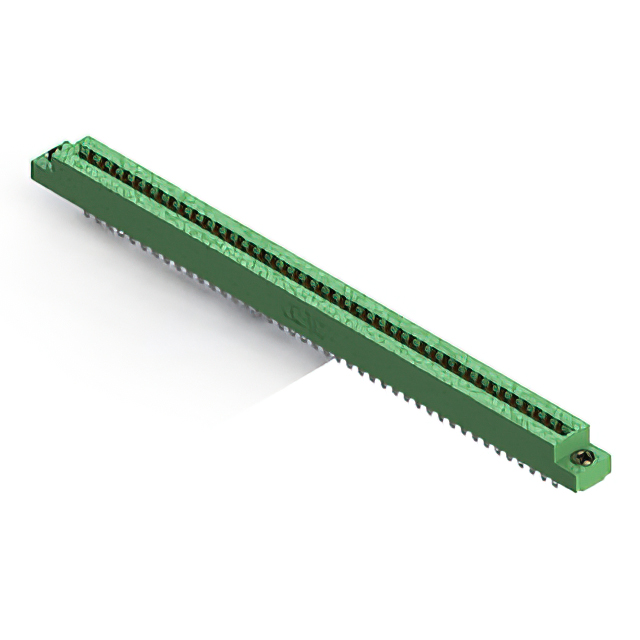

EDAC Inc. 316-042-500-103	Polyester Thermoplastic	1	-40 C	105 ░C		Panel Mount	Green	Solder Eyelet(s)	0.25 Ám	10 Áin	Female	Gold	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Cantilever	3.96 mm	0.156 in	Copper Alloy	Floating Bobbin Flush Mount	84		0.116 "	2.95 mm

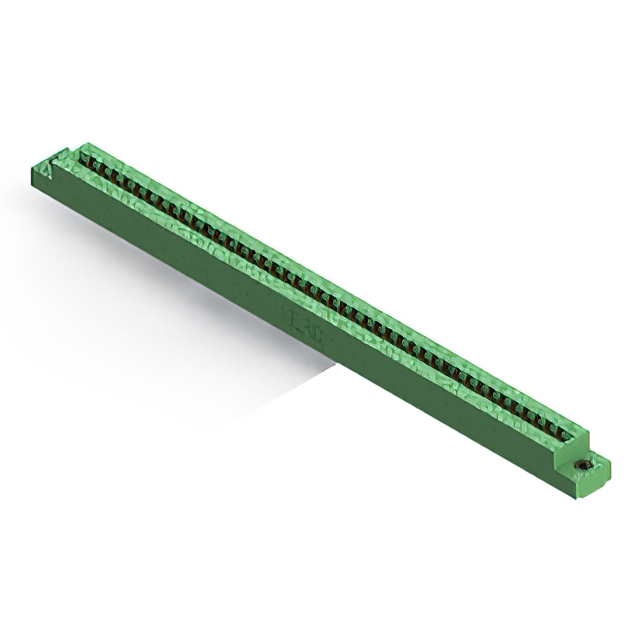

EDAC Inc. 316-042-521-108	Polyester Thermoplastic	1	-40 C	105 ░C	42	Through Hole	Green	Solder	0.25 Ám	10 Áin	Female	Gold	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Cantilever	3.96 mm	0.156 in	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening

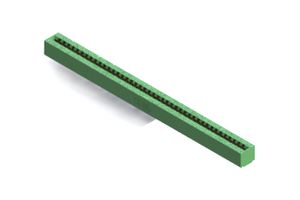

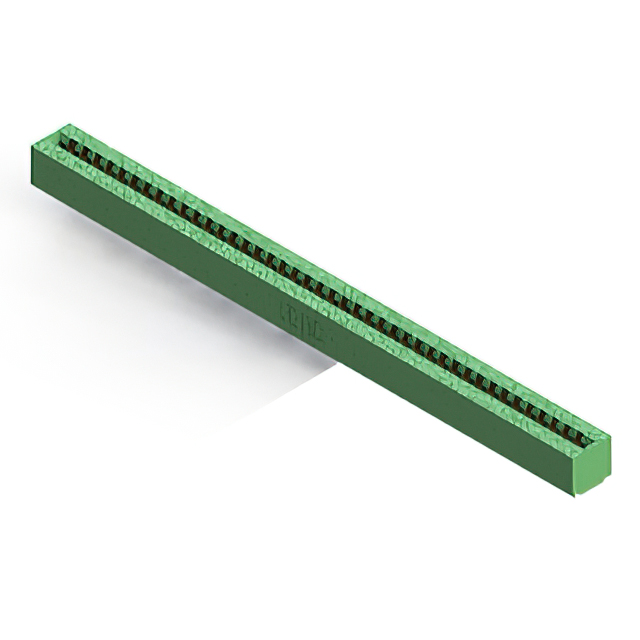

EDAC Inc. 316-042-520-101	Polyester Thermoplastic	1	-40 C	105 ░C	42	Through Hole	Green	Solder	0.25 Ám	10 Áin	Female	Gold	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Cantilever	3.96 mm	0.156 in	Copper Alloy
EDAC Inc. 316-042-520-107	Polyester Thermoplastic	1	-40 C	105 ░C	42	Through Hole	Green	Solder	0.25 Ám	10 Áin	Female	Gold	Dual	2	0.07 in 1.78 mm	0.054 in 1.37 mm	42	Non Specified - Dual Edge	Cantilever	3.96 mm	0.156 in	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening
