78396 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

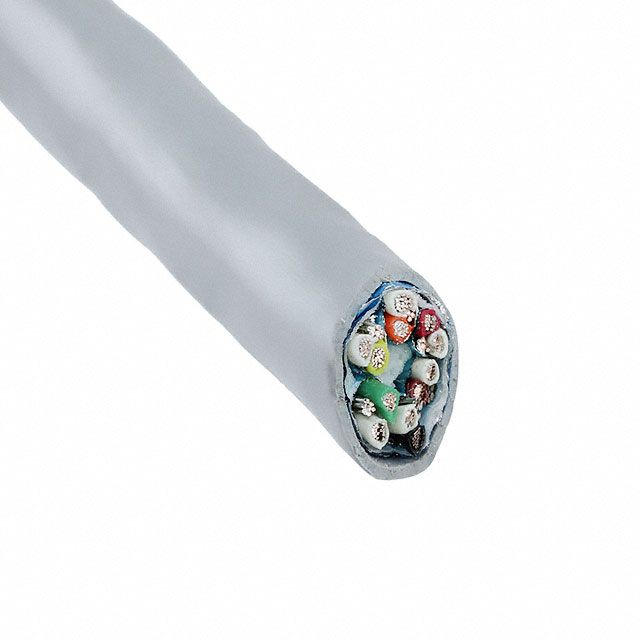

MULTI-PAIR 12COND 20AWG
| Part | Shield Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Wire Gauge | Shield Type | Jacket Color | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Number of Conductors | Voltage | Conductor Material | Features | Ratings | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 100 % | 80 °C | -40 C | Polyphenylene Ether Modified (mPPE) | 0.381 mm | 0.015 in | 20 AWG | Braid Foil | Slate | Multi-Pair | 19 | 32 AWG | Polyphenylene Ether Modified (mPPE) | 12 | 300 VDC | Copper Tinned | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 21460 | 304.8 m | 1000 ft |
