PAC.M0 Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 4P GOLD SLDR CUP

Part	Primary Material	Shell Size - Insert	Shielding	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Insert Material	Contact Finish - Mating	Color	Fastening Type	Applications	Mounting Type	Features	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Connector Type	Current Rating (Amps)	Ingress Protection	Number of Positions	Orientation	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
LEMO PAC.M0.4GL.AC39J	Plastic	M04	Unshielded	2.7 mm	0.154 in	3.9 mm	0.106 in	Polyetheretherketone (PEEK)	Gold	Gray Yellow	Detent Lock Push-Pull	Automotive Industrial Medical Testing Equipment & Measurement	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	150 °C	-50 °C	Polysulfone (PSU)	Male Pins Plug	8 A	IP50	4	C
LEMO PAC.M0.2GL.AC52N	Plastic	M02	Unshielded					Polyetheretherketone (PEEK)	Gold		Detent Lock Push-Pull	Automotive Industrial Medical Testing Equipment & Measurement	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	150 °C	-50 °C	Polysulfone (PSU)	Male Pins Plug	10 A	IP50	2	C	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PAC.M0.4GL.AC52A	Plastic	M04	Unshielded					Polyetheretherketone (PEEK)	Gold	Blue Gray	Detent Lock Push-Pull	Automotive Industrial Medical Testing Equipment & Measurement	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	150 °C	-50 °C	Polysulfone (PSU)	Male Pins Plug	8 A	IP50	4	C	0.157 in	0.205 in	4 mm	5.2 mm

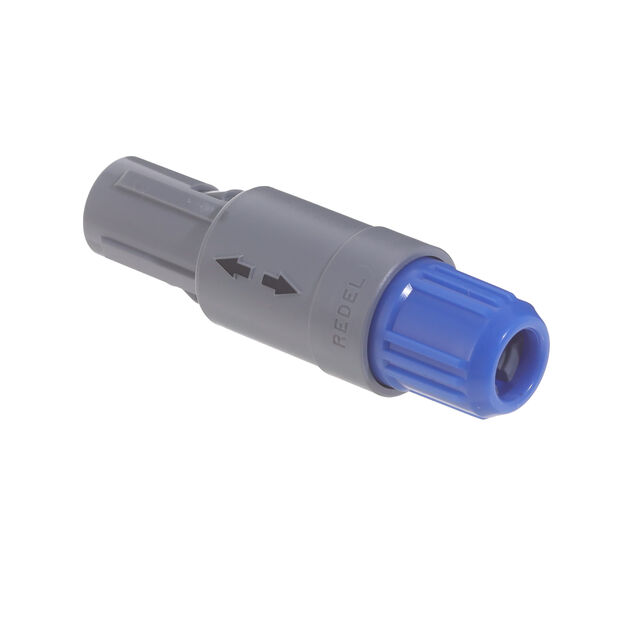

LEMO PAC.M0.8GL.AC52A	Plastic	M08	Unshielded					Polyetheretherketone (PEEK)	Gold	Blue Gray	Detent Lock Push-Pull	Automotive Industrial Medical Testing Equipment & Measurement	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	150 °C	-50 °C	Polysulfone (PSU)	Male Pins Plug	5 A	IP50	8	C	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PAC.M0.2GL.AC52G	Plastic	M02	Unshielded					Polyetheretherketone (PEEK)	Gold	Gray	Detent Lock Push-Pull	Automotive Industrial Medical Testing Equipment & Measurement	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	150 °C	-50 °C	Polysulfone (PSU)	Male Pins Plug	10 A	IP50	2	C	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PAC.M0.5GL.AC52J	Plastic	M05	Unshielded					Polyetheretherketone (PEEK)	Gold	Gray Yellow	Detent Lock Push-Pull	Automotive Industrial Medical Testing Equipment & Measurement	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	150 °C	-50 °C	Polysulfone (PSU)	Male Pins Plug	7 A	IP50		C	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PAC.M0.8GL.AC52RZ	Plastic	M08	Unshielded					Polyetheretherketone (PEEK)	Gold	Gray Red	Detent Lock Push-Pull	Automotive Industrial Medical Testing Equipment & Measurement	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	150 °C	-50 °C	Polysulfone (PSU)	Male Pins Plug	5 A	IP50	8	C	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PAC.M0.4GL.AC52R	Plastic	M04	Unshielded					Polyetheretherketone (PEEK)	Gold	Gray Red	Detent Lock Push-Pull	Automotive Industrial Medical Testing Equipment & Measurement	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	150 °C	-50 °C	Polysulfone (PSU)	Male Pins Plug	8 A	IP50	4	C	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PAC.M0.4GL.AC52J	Plastic	M04	Unshielded					Polyetheretherketone (PEEK)	Gold	Gray Yellow	Detent Lock Push-Pull	Automotive Industrial Medical Testing Equipment & Measurement	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	150 °C	-50 °C	Polysulfone (PSU)	Male Pins Plug	8 A	IP50	4	C	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PAC.M0.5GL.AC65V	Plastic	M05	Unshielded					Polyetheretherketone (PEEK)	Gold	Gray Green	Detent Lock Push-Pull	Automotive Industrial Medical Testing Equipment & Measurement	Free Hanging (In-Line)	Backshell	Polysulfone (PSU)	150 °C	-50 °C	Polysulfone (PSU)	Male Pins Plug	7 A	IP50		C					0.209 in 0.256 in	5.3 mm 6.5 mm
