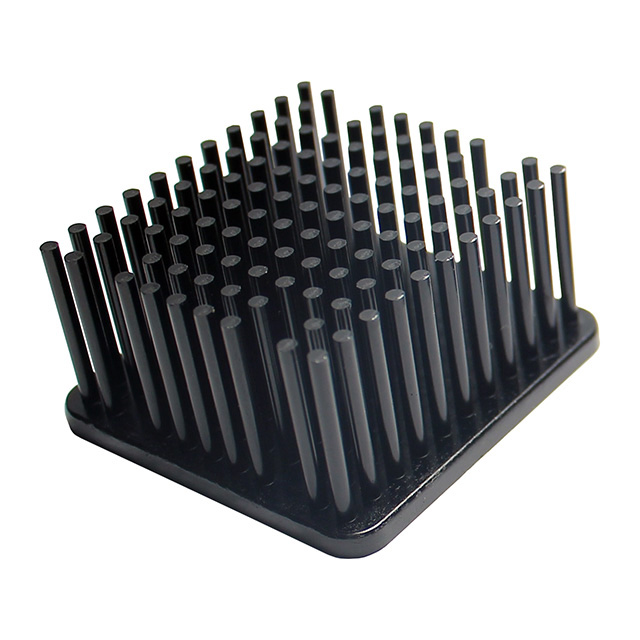

APR40 Series

Manufacturer: CTS Thermal Management Products

Catalog

HEATSINK FORGED BLK ANO TOP MNT

Part	Shelf Life	Thermal Resistance @ Forced Air Flow	Material	Package Cooled	Type	Width [x]	Width [x]	Thermal Resistance @ Natural	Length	Length	Shape	Fin Height [z]	Fin Height [z]	Attachment Method	Material Finish	Fin Height	Fin Height	Fin Height [custom]	Fin Height [custom]	Fin Height [custom]
CTS Thermal Management Products APR40-40-28CB/A01	24 Months	1.85 °C/W	Aluminum Alloy	ASIC BGA CPU LGA	Top Mount	1.559 in	39.6 mm	7.41 °C/W	1.559 in	39.6 mm	Pin Fins Square	27.6 mm	1.087 in	Thermal Tape Adhesive (Included)	Black Anodized
CTS Thermal Management Products APR40-40-18CB/A01	24 Months	2.5 °C/W	Aluminum Alloy	ASIC BGA CPU LGA	Top Mount	1.559 in	39.6 mm	8.65 °C/W	1.559 in	39.6 mm	Pin Fins Square			Thermal Tape Adhesive (Included)	Black Anodized	0.693 in	17.6 mm
CTS Thermal Management Products APR40-40-15CB/A01	24 Months	2.76 °C/W	Aluminum Alloy	ASIC BGA CPU LGA	Top Mount	1.559 in	39.6 mm	9.21 °C/W	1.559 in	39.6 mm	Pin Fins Square			Thermal Tape Adhesive (Included)	Black Anodized		14.6 mm	0.575 in
CTS Thermal Management Products APR40-40-21CB/A01	24 Months	2.3 °C/W	Aluminum Alloy	ASIC BGA CPU LGA	Top Mount	1.559 in	39.6 mm	8.43 °C/W	1.559 in	39.6 mm	Pin Fins Square			Thermal Tape Adhesive (Included)	Black Anodized	0.811 in	20.6 mm
CTS Thermal Management Products APR40-40-23CB/A01	24 Months	2.09 °C/W	Aluminum Alloy	ASIC BGA CPU LGA	Top Mount	1.559 in	39.6 mm	7.99 °C/W	1.559 in	39.6 mm	Pin Fins Square			Thermal Tape Adhesive (Included)	Black Anodized				22.61 mm	0.89 in
CTS Thermal Management Products APR40-40-33CB/A01	24 Months	1.65 °C/W	Aluminum Alloy	ASIC BGA CPU LGA	Top Mount	1.559 in	39.6 mm	7 °C/W	1.559 in	39.6 mm	Pin Fins Square			Thermal Tape Adhesive (Included)	Black Anodized	1.283 in	32.6 mm
