1437579 Series

Catalog

SLIDE SWITCHES DUAL SLIDE R SLIDE SWITCH

Part	Switch Travel	Mechanical Life	Actuator Material	Electrical Life	Operating Force [Min]	Operating Force [Max]	Switch Function	Current Rating (Amps)	Actuator Type	Contact Timing	Actuator Length [x]	Features	Contact Finish	Circuit	Mounting Type	Contact Material	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Termination Style
TE Connectivity AMP Connectors 1437579-6	3.05 mm	60000 Cycles	Polyester	60000 Cycles	150 gf	600 gf	On-On	0.4 VA	Standard	Non-Shorting (BBM)	2.79 mm	Epoxy Sealed Terminals	Gold	SPDT x 2	Right Angle Through Hole	Copper	20 V	80 °C	-20 ░C	20 V	PC Pin
TE Connectivity AMP Connectors 1437579-5	3.05 mm	60000 Cycles	Polybutylene Terephthalate (PBT)	60000 Cycles	150 gf	600 gf	On-On	0.4 VA	Standard	Non-Shorting (BBM)	2.79 mm	Epoxy Sealed Terminals	Gold	SPDT x 2	Through Hole	Copper	20 V	80 °C	-20 ░C	20 V	PC Pin

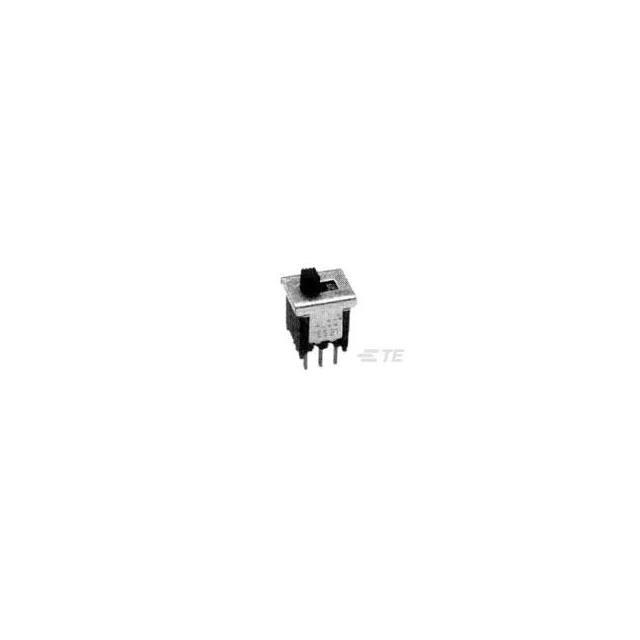

TE Connectivity AMP Connectors 1-1437579-9	3.05 mm	60000 Cycles	Polyester	60000 Cycles	150 gf	600 gf	On-On	0.4 VA	Standard	Non-Shorting (BBM)	2.8 mm		Gold	DPDT	Through Hole	Copper	20 V	80 °C	-20 ░C	20 V	PC Pin
