MG7050HAN Series
Manufacturer: EPSON
Beta
⌘K
SAW OSCILLATORS MULTI-OUTPUT SAW OSC HCSL 3.3V +/-100PPM -5~85C BULK
| Part | Current - Supply (Disable) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Output | Frequency - Output 1 | Base Resonator [custom] | Supplier Device Package | Frequency - Output 2 | Voltage - Supply | Height [z] | Height [z] | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Current - Supply (Max) [Max] | Frequency Stability | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

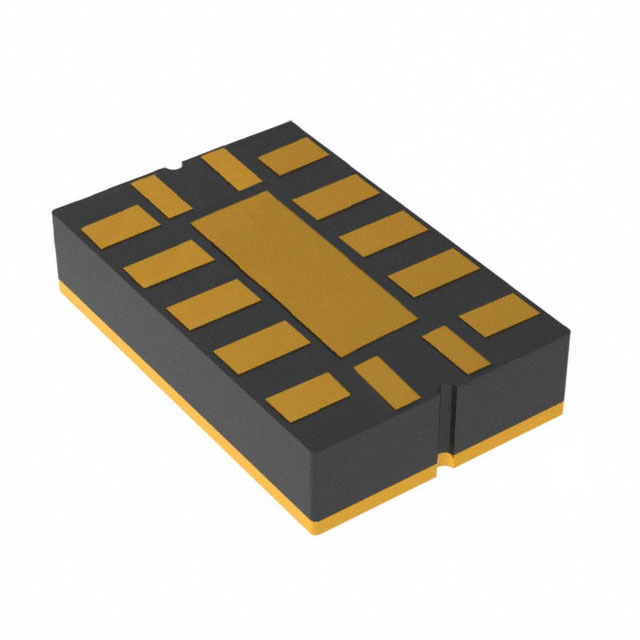

30 mA | 85 °C | -5 °C | 14-SMD No Lead | HCSL | 100 MHz | Crystal | 14-SMD (7x5) | 100 MHz | 3.3 V | 0.071 in | 1.8 mm | SO (SAW) | 5 mm | 7 mm | 0.197 " | 0.276 " | ||||
25 mA | 14-SMD No Lead | HCSL | 100 MHz | Crystal | 14-SMD (7x5) | 100 MHz | 3.3 V | 0.064 in 0.071 in | 1.62 mm 1.8 mm | SO (SAW) | 5 mm | 7 mm | 0.197 " | 0.276 " | 90 mA | 50 ppm | Enable/Disable |
