19397160 Series
Manufacturer: HARTING
Beta
⌘K

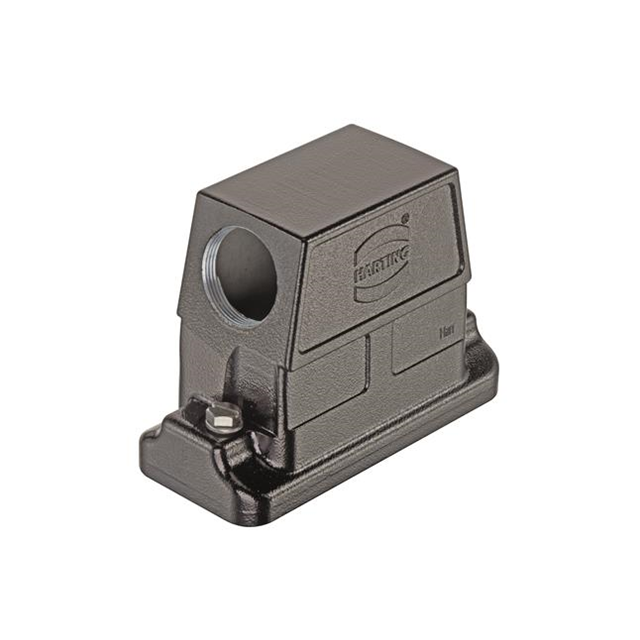

HAN 16 HP DIRECT M HOOD, SIDE ENTRY, M32
| Part | Housing Finish | Connector Type | Ingress Protection | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Lock Location | Housing Color | Style | Size | Housing Material | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Powder Coated | Hood | IP66 IP68 IP69K | 5 " | 2.244 " | 3.74 " | 95 mm | 57 mm | 127 mm | Screw Locks on Hood | Black | Side Entry | 16 B | Aluminum Die Cast | M32 | 125 °C | -40 C |

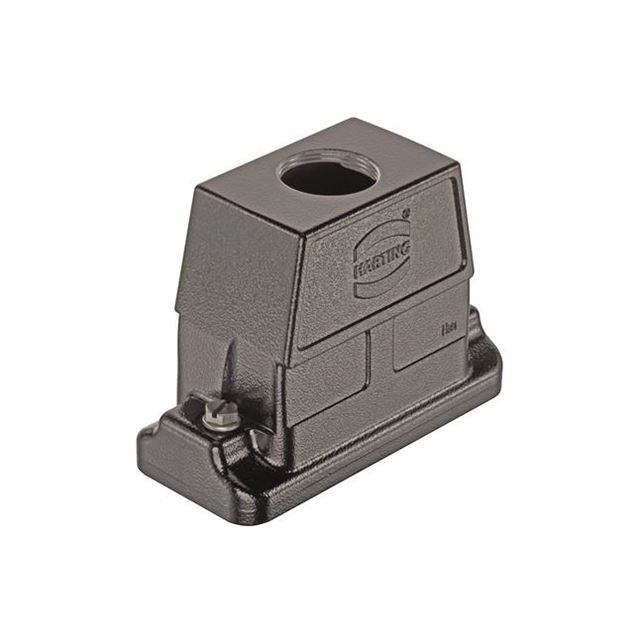

 HARTING | Powder Coated | Hood | IP66 IP68 IP69K | 5 " | 2.244 " | 3.701 " | 94 mm | 57 mm | 127 mm | Screw Locks on Hood | Black | Top Entry | 16 B | Aluminum Die Cast | M20 | 125 °C | -40 C |
HARTING | Powder Coated | Hood | IP66 IP68 IP69K | 5 " | 2.244 " | 3.74 " | 95 mm | 57 mm | 127 mm | Screw Locks on Hood | Black | Side Entry | 16 B | Aluminum Die Cast | M25 | 125 °C | -40 C |
HARTING | Powder Coated | Hood | IP66 IP68 IP69K | 5 " | 2.244 " | 3.701 " | 94 mm | 57 mm | 127 mm | Screw Locks on Hood | Black | Top Entry | 16 B | Aluminum Die Cast | 125 °C | -40 C |
