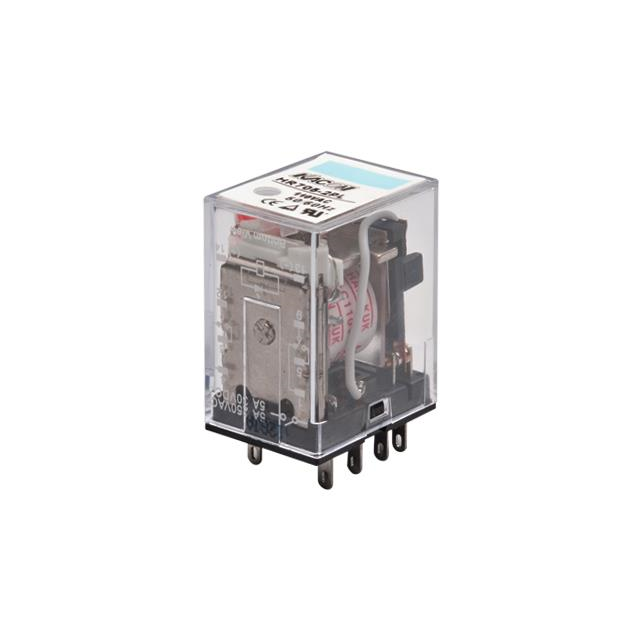

HR705 Series
Manufacturer: Kacon
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RELAY GEN PURPOSE DPDT 5A 110V
| Part | Release Time | Operate Time | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Relay Type | Mounting Type | Coil Current | Features | Contact Material | Coil Voltage | Operating Temperature (Min) | Operating Temperature (Max) | Termination Style | Contact Rating (Current) | Contact Form | Pin Count |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kacon | 20 ms | 20 ms | 125 VDC | 250 VAC | General Purpose | Socketable | 8.2 mA | Lighted Indicator | Gold (Au) Silver (Ag) | 110 V | -40 °C | 55 °C | Plug In | 5 A | 2 2 Form C C DPDT Form | |
Kacon | 20 ms | 20 ms | 125 VDC | 250 VAC | General Purpose | Socketable | 8.2 mA | Lighted Indicator | Gold (Au) Silver (Ag) | 110 V | -40 °C | 55 °C | Plug In | 5 A | 2 2 Form C C DPDT Form | |
Kacon | 20 ms | 20 ms | 125 VDC | 250 VAC | General Purpose | Socketable | 4.1 mA | Lighted Indicator Surge Protection | Gold (Au) Silver (Ag) | 220 V | -40 °C | 55 °C | Plug In | 3 A | 4 C Form PDT | 4 |
Kacon | 20 ms | 20 ms | 125 VDC | 250 VAC | General Purpose | Socketable | 0.0375 A | Diode Lighted Indicator | Gold (Au) Silver (Ag) | 24 VDC | -40 °C | 55 °C | Plug In | 5 A | 2 2 Form C C DPDT Form | |
Kacon | 20 ms | 20 ms | 125 VDC | 250 VAC | General Purpose | Socketable | 8.2 mA | Lighted Indicator Surge Protection | Gold (Au) Silver (Ag) | 110 V | -40 °C | 55 °C | Plug In | 5 A | 2 2 Form C C DPDT Form | |
Kacon | 20 ms | 20 ms | 125 VDC | 250 VAC | General Purpose | Socketable | 8.2 mA | Lighted Indicator | Gold (Au) Silver (Ag) | 110 V | -40 °C | 55 °C | Plug In | 3 A | 4 C Form PDT | 4 |
Kacon | 20 ms | 20 ms | 125 VDC | 250 VAC | General Purpose | Socketable | 8.2 mA | Lighted Indicator | Gold (Au) Silver (Ag) | 110 V | -40 °C | 55 °C | Plug In | 3 A | 4 C Form PDT | 4 |
Kacon | 20 ms | 20 ms | 125 VDC | 250 VAC | General Purpose | Socketable | 8.2 mA | Lighted Indicator Surge Protection | Gold (Au) Silver (Ag) | 110 V | -40 °C | 55 °C | Plug In | 3 A | 4 C Form PDT | 4 |
Kacon | 20 ms | 20 ms | 125 VDC | 250 VAC | General Purpose | Socketable | 0.0375 A | Lighted Indicator | Gold (Au) Silver (Ag) | 24 VDC | -40 °C | 55 °C | Plug In | 5 A | 2 2 Form C C DPDT Form | |
Kacon | 20 ms | 20 ms | 125 VDC | 250 VAC | General Purpose | Socketable | 0.075 A | Lighted Indicator | Gold (Au) Silver (Ag) | 12 VAC | -40 °C | 55 °C | Plug In | 5 A | 2 2 Form C C DPDT Form |
