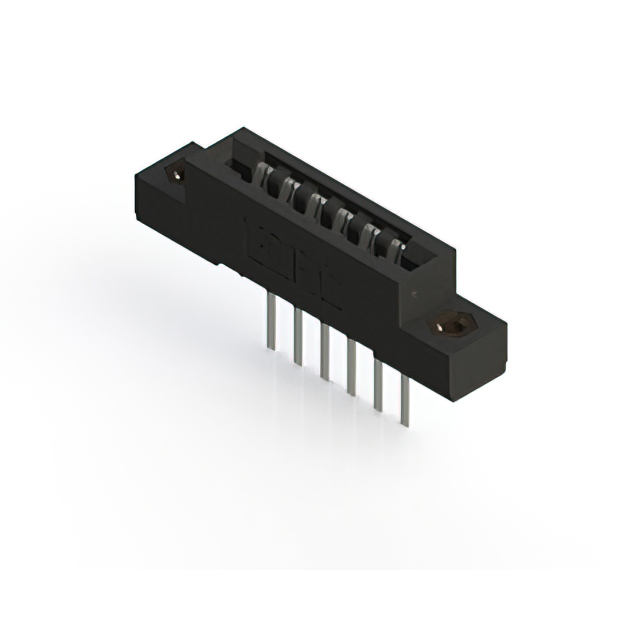

857-006 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 12POS 0.156
| Part | Termination Rows | Material - Insulation | Number of Positions | Card Type | Card Thickness [Max] | Card Thickness [Min] | Number of Rows [custom] | Mounting Type | Color | Read Out | Pitch | Pitch | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Termination | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row | Contact Finish | Number of Rows | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 12 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Through Hole | Black | Dual | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Copper Alloy | Wire Wrap | Female | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 6 | Tin | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 6 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Black | Single | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Copper Alloy | Solder | Female | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 6 | Gold | 1 | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 12 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Right Angle Through Hole | Black | Dual | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Copper Alloy | Solder | Female | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 6 | Tin | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 12 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Right Angle Through Hole | Black | Dual | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Copper Alloy | Solder | Female | 4-40 Flush Mount Threaded Insert Top Opening | 6 | Tin | |||||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 6 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Black | Single | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Copper Alloy | Solder | Female | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 6 | Tin | 1 | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 12 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Right Angle Through Hole | Black | Dual | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Copper Alloy | Solder | Female | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 6 | Tin | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 12 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Through Hole | Black | Dual | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Copper Alloy | Wire Wrap | Female | 6 | Tin | ||||||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 12 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Through Hole | Black | Dual | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Copper Alloy | Wire Wrap | Female | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 6 | Tin | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 6 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Black | Single | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Copper Alloy | Wire Wrap | Female | 4-40 Flush Mount Threaded Insert Top Opening | 6 | Tin | 1 | |||||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 12 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Right Angle Through Hole | Black | Dual | 3.96 mm | 0.156 in | Semi Bellows | 125 °C | -40 C | Copper Alloy | Solder | Female | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 6 | Gold | 0.25 Ám | 10 Áin |
