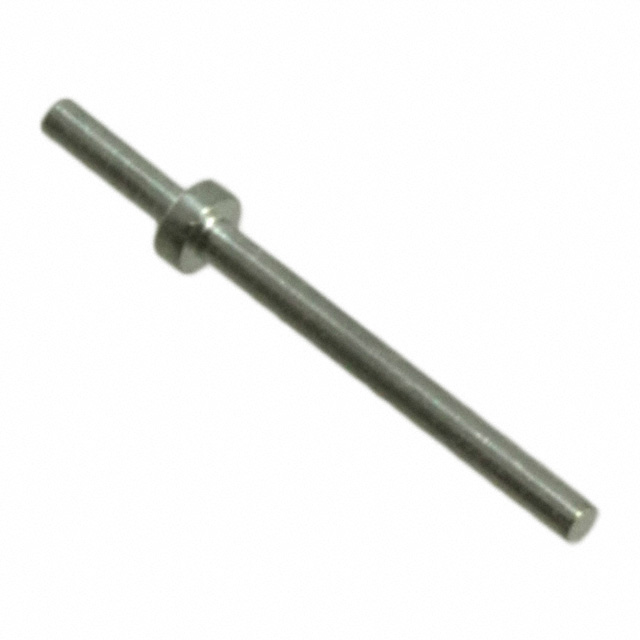

H3108 Series
Manufacturer: Harwin Inc.
Beta
⌘K
TERMINAL, TURRET, 0.55MM ROHS COMPLIANT: YES
| Part | Terminal Style | Insulation | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Overall | Length - Overall | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Board Thickness | Board Thickness | Termination | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Max] | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Single End | Non-Insulated | 5.27 mm | 0.207 in | Tin | 0.021 in | 0.53 mm | 7.59 mm | 0.299 in | Brass | 0.99 mm | 0.039 in | 1 mm | 0.039 in | Swage | 0.51 mm | 0.02 in | 0.56 mm | 0.022 in | 1.91 mm | 0.075 " | PC Pin | Through Hole |
